The 2026 new model of shipyard-specific electric transfer vehicle is specially designed for the shipbuilding and maintenance scenarios, aiming to solve the problem of efficient transfer of ship sections, steel plates and profiles, as well as large equipment between the ship platform, section storage yards and workshops.

Core configuration

Load capacity: Covers a full range from 5 tons to 300 tons. The 150-ton class is the standard model for shipyards. Customization for higher tonnage can be provided based on the weight of the ship's sections.
Table size: The length can be customized from 10 to 18 meters, and the width can be customized from 3 to 6 meters, suitable for fitting the dimensions of ship sections, steel plates and large equipment.
Drive method: Powered by high-power DC motor, with single or dual motor configurations. The total power can reach 5-30 kW, and it has a large starting torque for heavy loads.
Operating speed: 0 - 20 meters per minute, with stepless speed adjustment. Low-speed crawling is convenient for precise alignment.
Wheel configuration: High-strength cast steel wheels or heavy-duty polyurethane rubber-covered wheels, available in 4-wheel, 6-wheel or 8-wheel configurations, suitable for different load requirements.
Control mode: Dual-mode of industrial-grade wireless remote controller and vehicle-mounted line control box, providing flexible and safe operation.

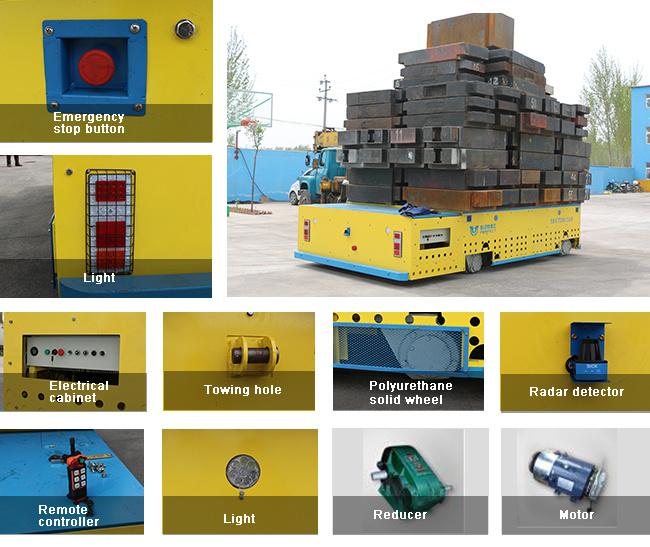

Safety configuration
360° Collision Avoidance System: Equipped with multiple line laser radars + ultrasonic sensors + full vehicle mechanical collision bars, with three levels of protection to ensure operational safety.
Sound and light warning system: An 85dB loud alarm device + a red flashing warning light, ensuring clear audible and visible in the noisy shipyard environment.
Environmental protection grade: The electrical control cabinet has a protection level of IP54 or above, resistant to salt fog, moisture, and dust, and suitable for outdoor operations in shipyards.
Customization function

Customization of countertop form: Flat type (general materials), V-shaped saddle (transporting pipes/steel sections), Concave type (transporting rolled materials), Expandable workbench (transporting ultra-wide sections), Platform with T-shaped groove (fixing workpieces).
Wheel material options: Cast steel wheels (impact-resistant, suitable for heavy loads), polyurethane rubber-coated wheels (do not damage the floor, low noise).
Navigation mode upgrade: It can be upgraded to magnetic pin navigation, laser SLAM navigation or QR code navigation, enabling unmanned automatic transportation of AGVs and integrating with MES/WMS systems.
Environment adaptation customization: Special versions such as explosion-proof type, high-temperature resistant type, and anti-corrosion type can be provided.
Function module expansion: Optional features include hydraulic lifting platform, platform rotation function, automatic weighing system, RFID material identification, etc.

Q: What is the table size and load capacity of this automatic guided vehicle?
A:The size and load of the transfer cart is customized according to your requirement.

Q: How do you transport the 2-50T Industry Standard Agv Transfer Cart Automatic Guided Vehicle and what is the package ?
A: The cart's body is packed with tarp, the wheels and accessories are packed with wooden case.
Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
Q: What is your MOQ?
A: The MOQ is 1 set.
Q:Can we choose the power supply for the automatic guided vehicle?
A:Yes,such as the cable drum, battery powered ,low voltage powered, busbar    powered ,trailing cable powered, etc.

Q:What certificates do you have?

A:ISO9001,CE,SASO,SGS,etc.

    ---- Low noise  It causes low noise level.
      ---- Maximum safety  Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
    ---- Easy for operation  These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
      ---- Easy to implement into manufacturing process  Operates on standard floors; Do not require complex or permanent installation
      ---- Suitable for All Kinds of Weight  The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
