RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
Price:
1700
MOQ:
1
Delivery Time:
Negotiable
Product Description

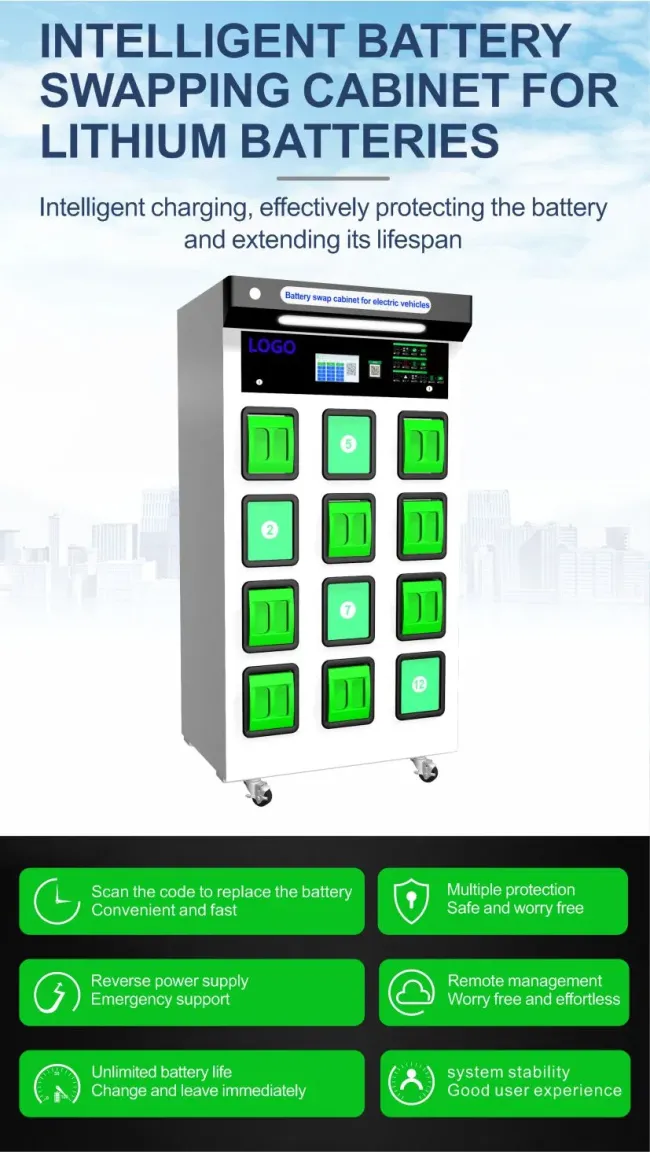

Custom 12-slot Smart Urban Battery Swap Cabinet For 2/3/4-wheelers
The power swap cabinet is a power swap system specifically designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, and electric low-speed four-wheelers). The system allows users to quickly replace a depleted battery with a fully charged one without waiting for a lengthy charging process.

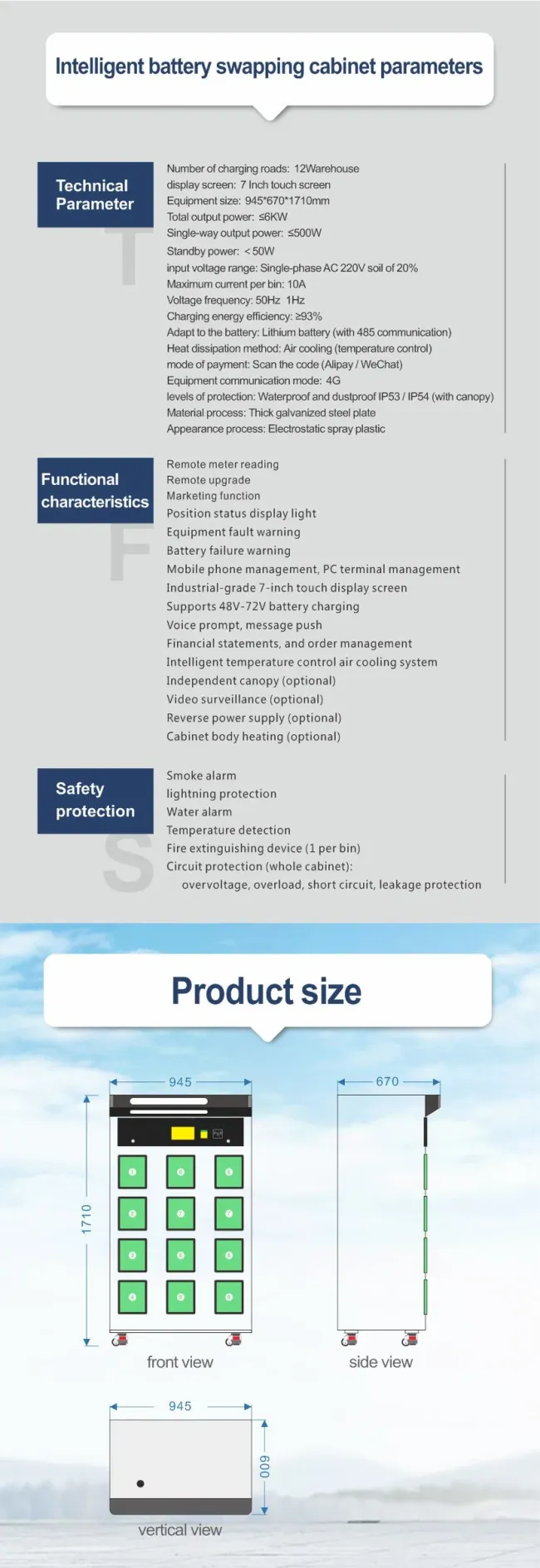

| Product model | HP-HD06 | HP-HP08 | HP-HP10 | HP-HP12 |
|---|---|---|---|---|
| Number of charging roads | 6 PCS | 8 PCS | 10 PCS | 12 PCS |
| Display screen | 7/10/21-inch industrial touch screen | |||
| Equipment size | 850*670*1785mm | 820*600*1666mm | 820*600*1786mm | 11340*600*1747mm |
| Battery compartment size | 250*230*410mm | |||
| Total output power | ≤4800W | ≤6400W | ≤8000W | ≤9600W |
| Single-way output power | ≤800W | |||
| Charging power (other) | 1000W/1200W/1400W | |||
Key Features
- Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.

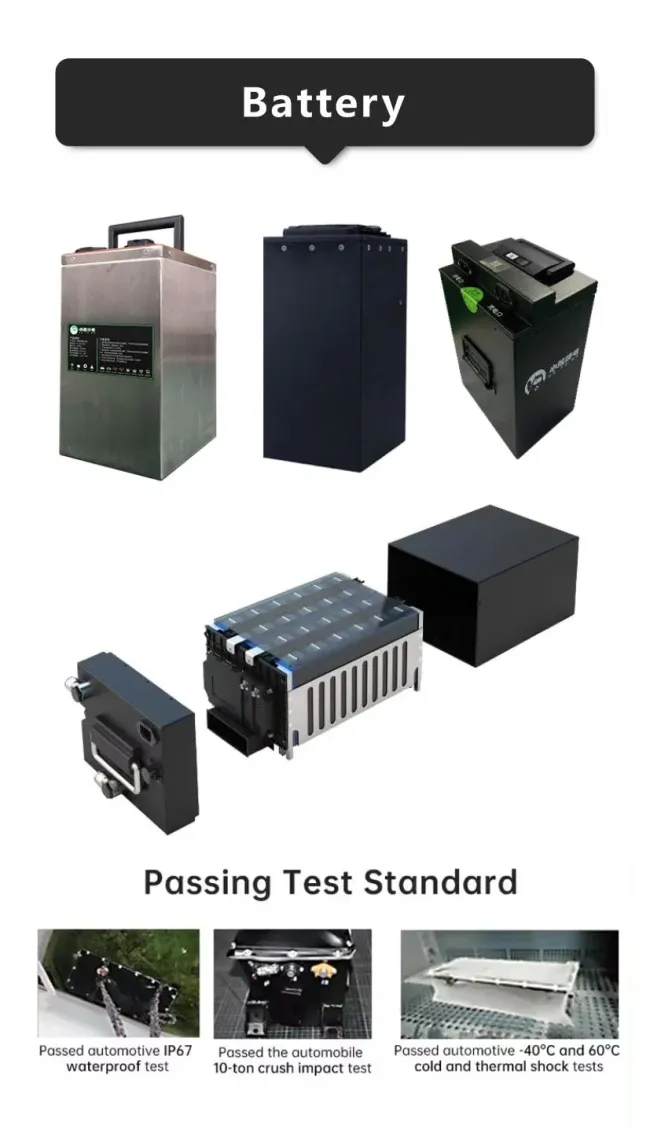

- Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
- Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit, and other problems.

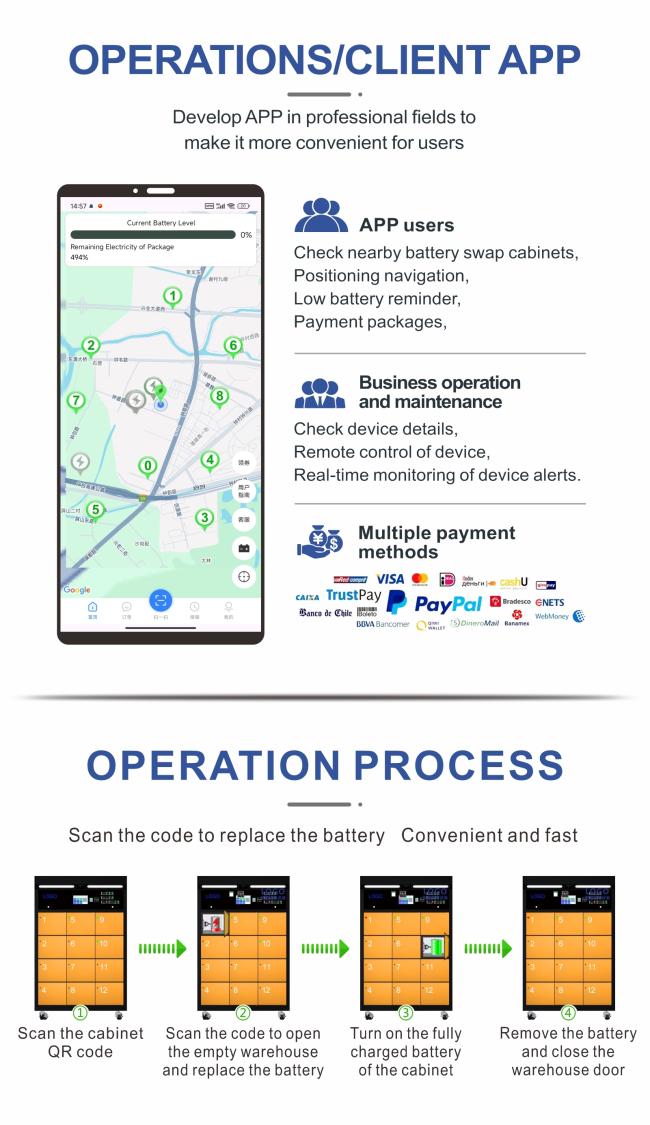

- Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
- Energy saving and environmental protection: Helps reduce the power waste caused by battery charging while extending battery life.

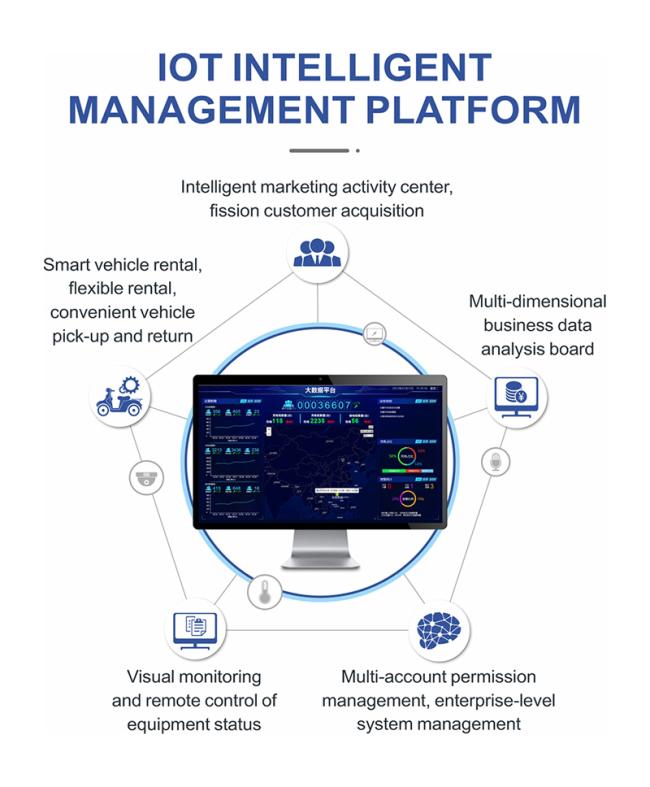

- Network connection: Supports networking function, which can remotely monitor and manage the situation of each battery swap station.
Application Scenarios
Power swapping cabinets are widely used in urban transportation, especially for urban residents who rely on electric vehicles as their main means of transportation. They are usually set up in places with high traffic volume such as transportation hubs, business centers, and residential areas, making it easy for users to find and use them at any time.
Product Images
