Touchscreen Electric Vehicle Fast Charger Station For Two Wheeler Tricycles Custom

Price Negotiable

Price: 850-1010usd/set

MOQ: 1-50 sets

Delivery Time: 20-30 days

Brand: GT

Product Description

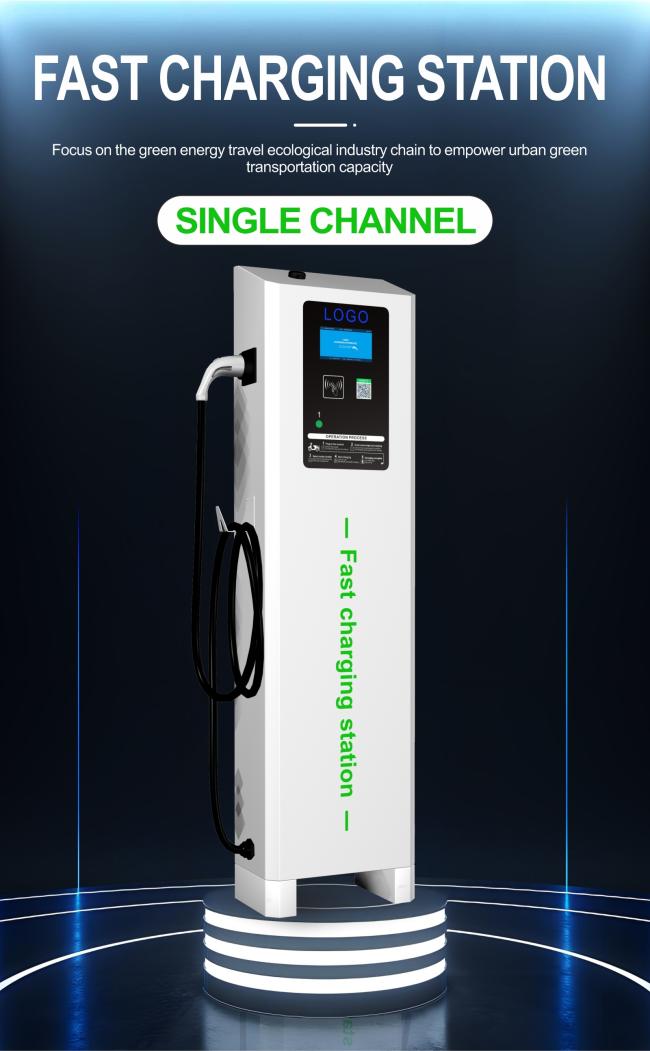

High Power Charging Pile for Electric Tricycles 6KW Single channel Fast Charging Solution

The fast charing pile specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.).

Product parameters

Number of equipment output channels	Single Connector(6KW)
Input voltage range	Single-Phase Electricity AC 220V±20%
Input voltage frequency	50HZ ±1HZ
Total output power	6KW
Single output power	6KW
Output voltage range (DC)	30V-100V
Single maximum output current range	65A
Battery BMS communication	CAN/RS485
How to use	Scan Code/Card Swipe
Communication method	4G
Display	7-inch Industrial Touch Screen
Cooling method	Temperature Controlled Air Cooling
Temperature control	Have
Battery BMS monitoring	Have
Battery abnormal warning	Have
Charging connector	One * 3m
Protection	Overload, Overvoltage, Undervoltage, Overcurrent, Leakage, Water Immersion, Lightning Protection, Etc
Material and craftsmanship	Thickened Cold-rolled Steel Plate
Appearance and craftsmanship	Electrostatic Spraying
Protection level	Dustproof And Waterproof Ip53/Ip54
Charging port	GB/T 20234.2-2015

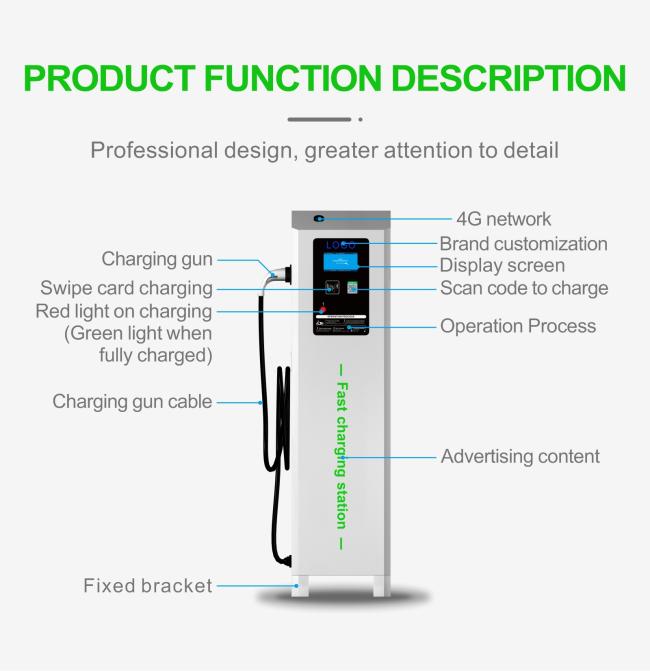

Functions:
Function type: real-time data monitoring, voice broadcast, message push, full automatic
stop, socket identification, real-time charging detection, power-off memory, overvoltage
and overcurrent protection, leakage protection.
How to use: scan code/swipe card, real-time refund, membership function, marketing function.
Billing method: Billing according to time and power.
Payment methods: Credit card.

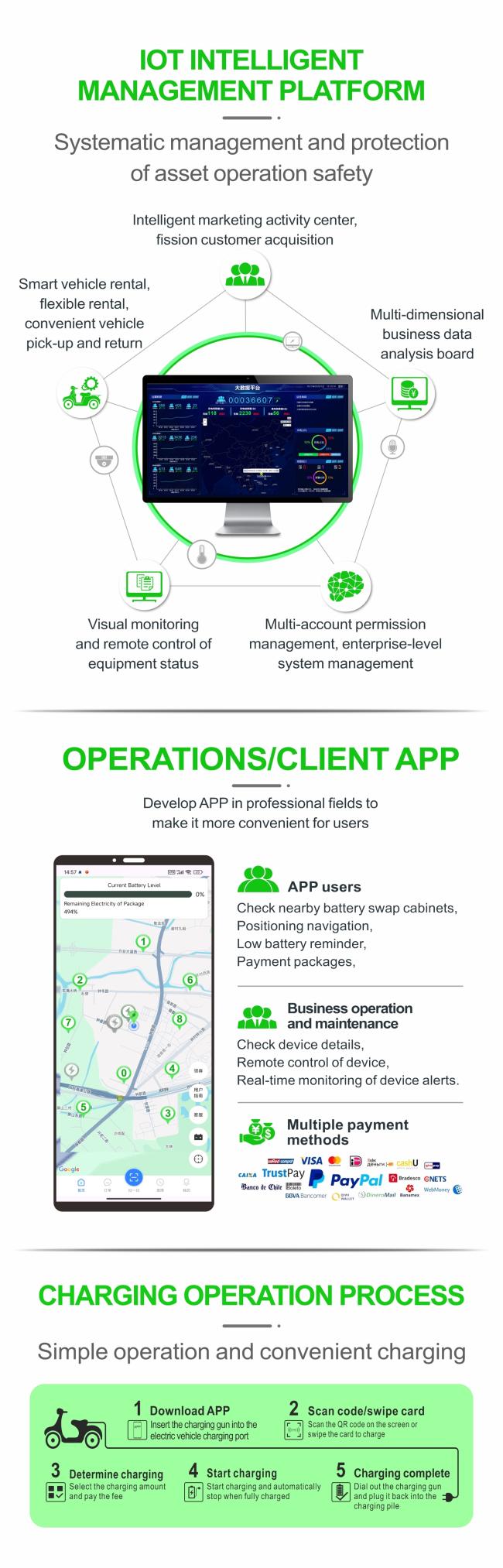

Network connection: Supports networking function, which can remotely monitor and manage the situation of each fast charging pile.
