3Phase 4G AC Electric Fast Charging Stations Equipment 380V

Price Negotiable

Price: 950-1205usd/set

MOQ: 50 sets

Delivery Time: 30 days

Brand: GT

Product Description

Luxury Fast Charging Pile for Electric Tricycles 11KW dual channel Ultra Fast Charging Solution

The power swap cabinet is a power swap system specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.). The system allows users to quickly replace a depleted battery with a fully charged one without having to wait for a lengthy charging process.

Product parameters

Number of equipment output channels	Dual Connector(11KW)
Input voltage range	Three Phase AC 380V
Input voltage frequency	50HZ ±1HZ
Total output power	22KW
Single output power	11KW
Output voltage range (DC)	30V-100V
Single maximum output current range	130A-260A
Battery BMS communication	CAN/RS485
How to use	Scan Code/Card Swipe
Communication method	4G
Display	7-inch Industrial Touch Screen
Cooling method	Temperature Controlled Air Cooling
Temperature control	Have
Battery BMS monitoring	Have
Battery abnormal warning	Have
Charging connector	Two * 3m
Protection	Overload, Overvoltage, Undervoltage, Overcurrent, Leakage, Water Immersion, Lightning Protection, Etc
Material and craftsmanship	Thickened Cold-rolled Steel Plate
Appearance and craftsmanship	Electrostatic Spraying
Protection level	Dustproof And Waterproof Ip53/Ip54
Charging port	GB/T 20234.2-2015

Features
Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.

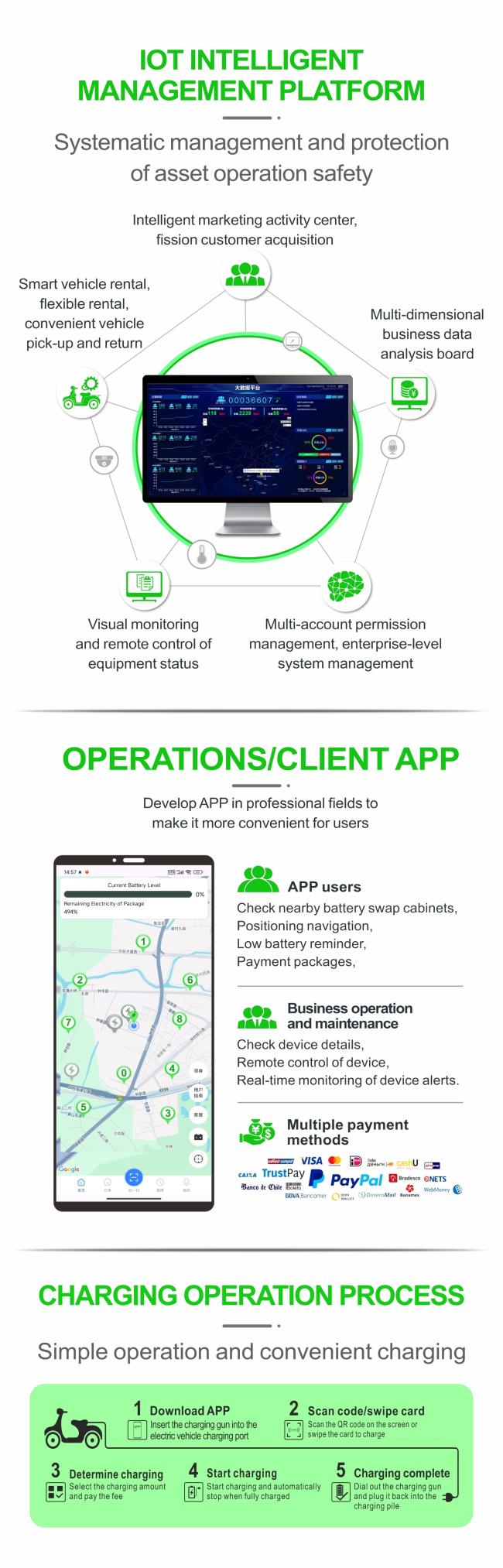

Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit and other problems.
Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
Energy saving and environmental protection: Helps reduce the power waste caused by battery charging while extending battery life.
Network connection: Supports networking function, which can remotely monitor and manage the situation of each battery swap station.
