12KW IP53 Battery Swap Stations Charging Cabinet For Electric Vehicles
Price:
910-1850 usd/set
MOQ:
1-50 sets
Delivery Time:
20-30 days
Brand:
GT
Product Description
New Energy Battery Swapping Cabinet for Electric Motorcycle - 12 Warehouse Luxury Style
The power swap cabinet is a specialized system designed for electric low-speed vehicles including electric tricycles, motorcycles, and low-speed four-wheelers. This innovative solution enables users to quickly exchange depleted batteries for fully charged ones, eliminating lengthy charging waits.
Product Specifications
| Specification | Details |
|---|---|

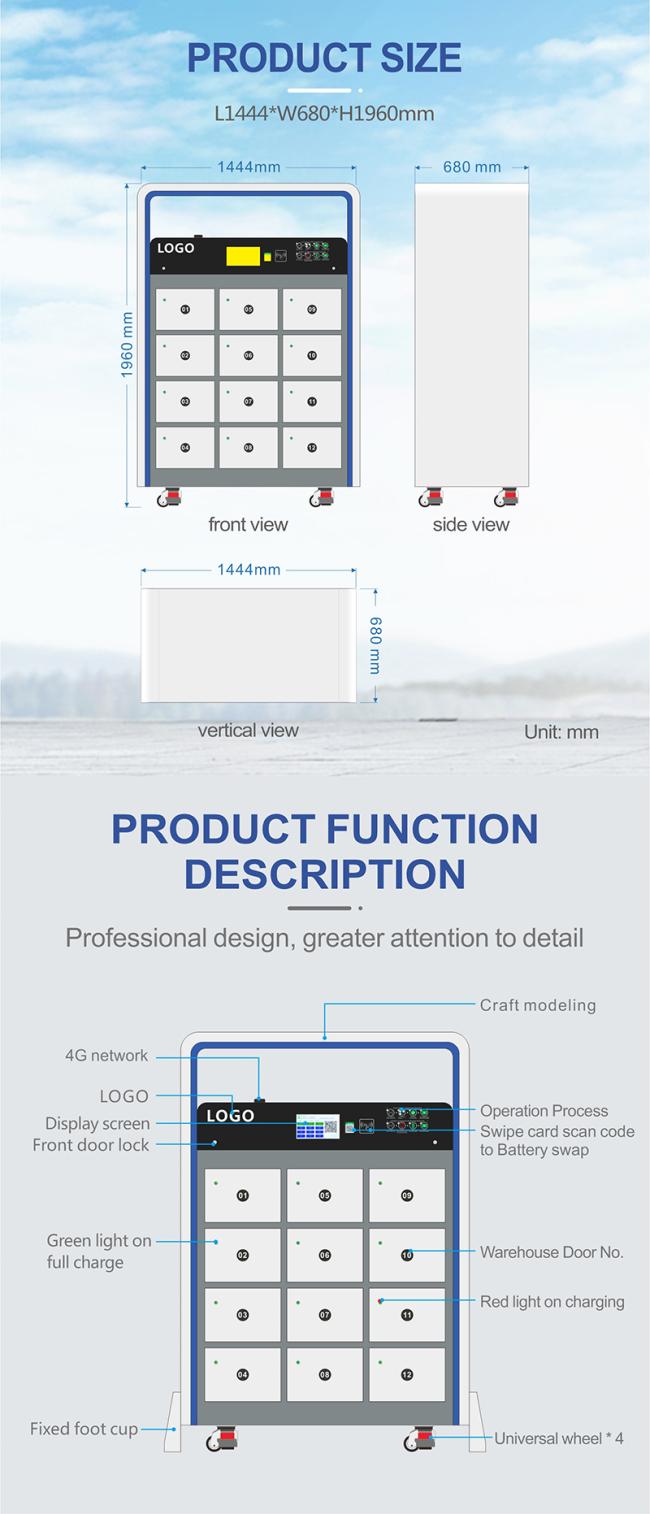

| Dimensions | L1444 × W680 × H1960mm |
| Warehouse Size | L330 × W210 × H480mm |
| Charging Circuits | 12 Circuits |
| Display | 10.1 Inches |
| Output Power | ≤ 12KW (Overall), ≤ 1KW (Single) |
| Maximum Current | 10A per Warehouse |
| Standby Power | ≤50W |
| Charging Efficiency | ≥93% |
| Input Voltage | Single phase AC 220V ±20% |
| Frequency | 50Hz ±1Hz |
| Battery Compatibility | Lithium battery (with 485 communication) |
| Payment Methods | APP/IC Card |
| Protection Level | IP53/IP54 |
Key Features
- Rapid Battery Exchange: Enables quick battery swaps, significantly reducing user wait times
- Smart Management System: Monitors battery status including charge level and health, ensuring safe charging and automatic distribution
- Enhanced Safety: Multiple protection mechanisms prevent overcharging, short circuits, and ensure operational safety
- User-Friendly Interface: Features touchscreen or mobile app for intuitive operation
- Network Connectivity: Supports remote monitoring and management of swap stations
- Eco-Friendly Solution: Reduces power waste, extends battery life, and offers lower operating costs than fuel vehicles
Ideal Applications
These battery swap cabinets are ideal for urban transportation networks, particularly in high-traffic areas such as transportation hubs, business districts, and residential communities. They provide convenient access for users who rely on electric vehicles as their primary mode of transport.
Product Images
