240V IP54 EV Fast Charger Pile AC Public Charging Station For Electric Tricycles

Name: 240V IP54 EV Fast Charger Pile AC Public Charging Station For Electric Tricycles
Brand: Guangdong Wanying Jiahui IoT Technology Co., Ltd.

Price Negotiable

Price: 1100-1770usd/set

MOQ: 1-50 sets

Delivery Time: 20-30 days

Brand: GT

Product Description

High Power Charging Pile for Electric Tricycles Full Charged In 30 Mins Fast Charging Solution

The power swap cabinet is a power swap system specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.). The system allows users to quickly replace a depleted battery with a fully charged one without having to wait for a lengthy charging process.

Product parameters

Number of equipment output channels	Four Connector(4KW)
Input voltage range	Single-Phase Electricity AC 220V±20%
Input voltage frequency	50HZ ±1HZ
Total output power	16KW
Single output power	4KW
Output voltage range (DC)	30V-100V
Single maximum output current range	65A
Battery BMS communication	CAN/RS485
How to use	Scan Code/Card Swipe
Communication method	4G
Display	7-inch Industrial Touch Screen
Cooling method	Temperature Controlled Air Cooling
Temperature control	Have
Battery BMS monitoring	Have
Battery abnormal warning	Have
Charging connector	Four * 3m
Protection	Overload, Overvoltage, Undervoltage, Overcurrent, Leakage, Water Immersion, Lightning Protection, Etc
Material and craftsmanship	Thickened Cold-rolled Steel Plate
Appearance and craftsmanship	Electrostatic Spraying
Protection level	Dustproof And Waterproof Ip53/Ip54
Charging port	GB/T 20234.2-2015

Features
Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.

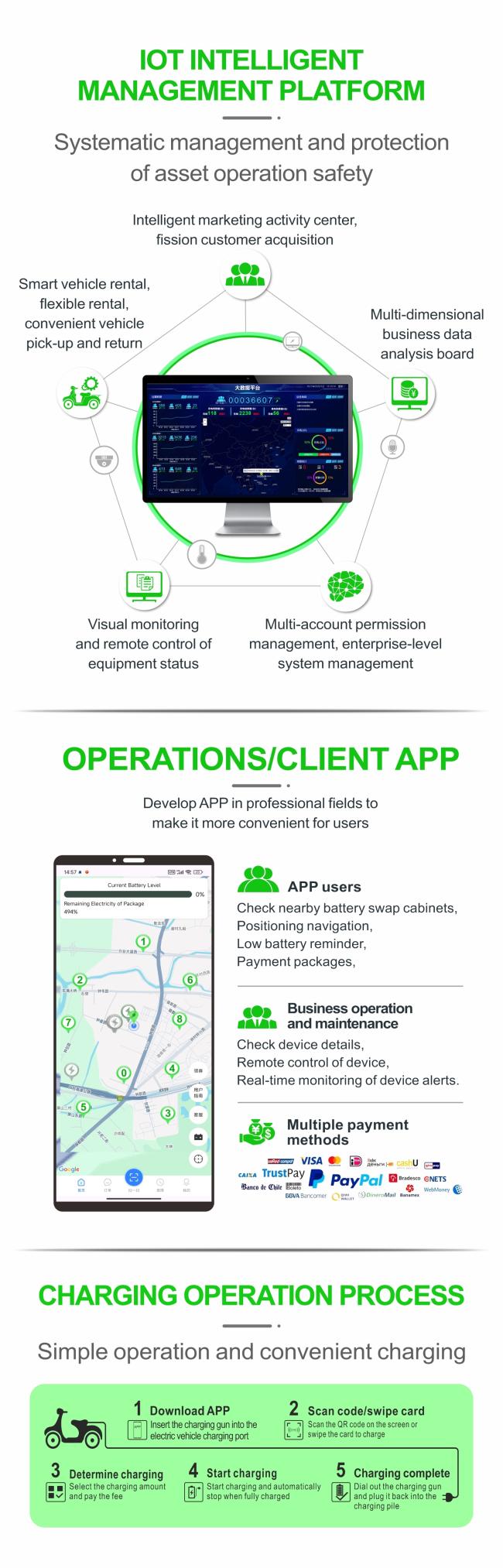

Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit and other problems.
Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
Energy saving and environmental protection: Helps reduce the power waste caused by battery charging while extending battery life.
Network connection: Supports networking function, which can remotely monitor and manage the situation of each battery swap station.
