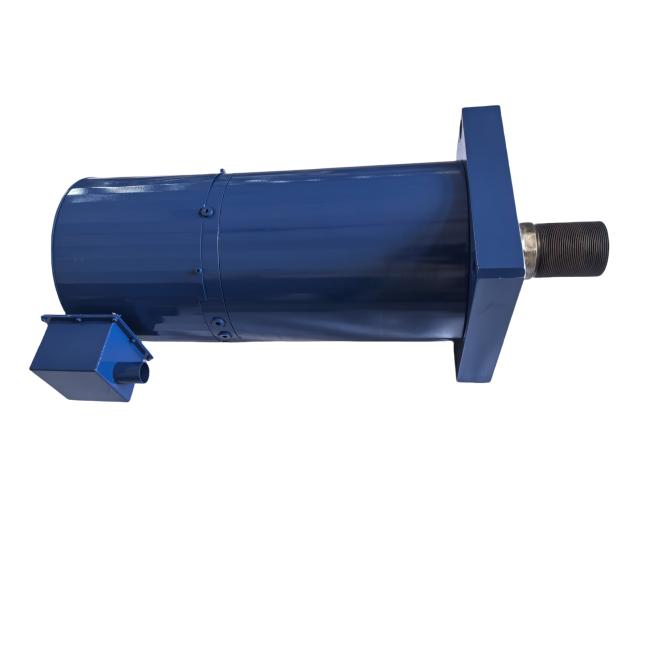

Custom Hydraulic Clamping Cylinder 70mm Rod 125mm Tube
MOQ:
1 piece
Delivery Time:
12~60 days depends on products type
Brand:
Guoyue
Product Description
OEM Clamping Hydraulic Cylinder
Hydraulic Clamping Ram for Workholding Actuator Swing Hydraulic Cylinder
| Attribute | Value |
|---|---|
| Product Name | Hydraulic Cylinder |
| Rod Diameter | 70mm |
| Maximum Stroke | Customized |
| Outer Tube Diameter | 125mm |
| Inner Tube Diameter | 100mm |
| Overall Length | Customized |
| Type | Single Acting Cylinder |
| Material | Steel, Customized |
| Surface Treatment Of Piston Rod | Hard Chrome Plated |
| For Pipe Size | Customized |
Product Description
Our OEM Clamping Hydraulic Cylinder is designed for precision workholding applications, offering reliable performance in demanding industrial environments.
Key Features:
- Tube follows GUOYUE CD250 style with material options: 45#, 42CrMo, or 27SiMn
- Precision ground hole to H8 with surface finish Ra under 0.4 μm
- Head, base, ears, and piston made from 45# steel (no cast iron or cast steel)
- Adjustable slow-down system with choice of fixed or floating bumpers
- Ultrasound-tested welds for stress reduction and extended service life
- Premium international seals from Trelleborg (Sweden), Merkel and GP (Germany)
- Rigorous testing to GB/T15622-2005 and Q/GAKY014-2023 standards
- 1-year warranty against manufacturing defects
Construction Advantages:
This robust hydraulic clamping ram features thick steel construction and hard chrome-plated rod for maximum durability. The multi-stage telescopic design provides high lift capacity while maintaining compact dimensions. Precision seals ensure leak-free operation even under heavy loads.
Applications:
Ideal for CNC machining centers, automotive manufacturing, metalworking, and plastic injection molding. Commonly used in engineering machinery, mining, shipping, metallurgy, water conservancy, offshore, and agricultural applications.
Company Information
Location: Jiangsu, China
Established: 2022
Employees: 51-100
Quality Assurance: Pre-production samples and final inspection before shipment
Product Range: Hydraulic cylinders, single/double-acting cylinders, construction machinery cylinders
Payment Terms: T/T (USD, EUR)
Delivery Terms: FOB
