Custom Hydraulic Cylinder 70mm Rod 125mm Tube Single Acting
MOQ:
1 piece
Delivery Time:
12~60 days depends on products type
Brand:
Guoyue
Product Description
Custom Hydraulic Cylinders for Press Brake Applications
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Hydraulic Cylinder |
| Weight | 80kg |
| Rod Diameter | 70mm |
| Maximum Stroke | Customized |
| Outer Tube Diameter | 125mm |
| Inner Tube Diameter | 100mm |
| Overall Length | Customized |
| Type | Single Acting Cylinder |
| Material | Steel, Customized |
| Surface Treatment | Hard Chrome Plated |
Premium Construction Details
- Tube follows GUOYUE CD250 specifications with material options: 45#, 42CrMo, or 27SiMn steel
- Precision ground holes to H8 tolerance with surface finish Ra under 0.4 μm
- Head, base, ears, and piston constructed from durable 45# steel (no cast iron/steel)
- Customizable slow-down system with fixed or floating bumpers for controlled deceleration
- Ultrasound-tested welds for stress reduction and extended service life
- Premium international seals from Trelleborg (Sweden), Merkel and GP (Germany)
- Rigorous testing to GB/T15622-2005 and Q/GAKY014-2023 standards with certification provided
Performance Advantages:
Engineered for demanding press brake applications, our hydraulic cylinders combine robust construction with precision performance. The heavy-duty steel construction and hard-chromed rod resist bending while premium seals prevent leaks. Custom telescopic designs provide maximum extension while maintaining compact dimensions.
Application Scenarios
Ideal for metal fabrication environments including:
- Press brake operation for precise metal bending
- Manufacturing plants for shaping metal components
- Automotive body shops and heavy machinery production
- Engineering, mining, marine, metallurgy, and agricultural applications
Additional Specifications
| Seal Options | Parker, Merkel, Hallite |
| Paint Colors | Red, Grey, Yellow, Black (customizable) |
| Material Options | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316 |
| Certifications | ABS, Lloyds, SGS |
| Packaging | Bubble-wrap with wooden case protection |
| Structure Types | Piston Type, Plunger Type, Telescopic Type |
| Power Source | Hydraulic & Pneumatic |

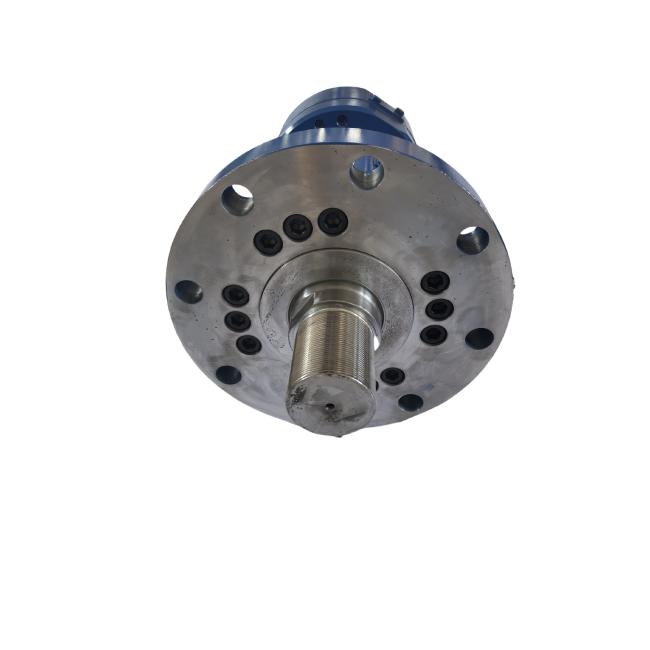

Product Images
About Guoyue Hydraulic
Based in Jiangsu, China since 2022, we serve global markets including North America, Europe, Africa, and Asia. Our 50+ employee facility specializes in hydraulic cylinder manufacturing with a 50 million yuan registered capital.
Quality Assurance
- Pre-production samples for approval
- Final inspection before shipment
- 1-year warranty from shipment date
Our Services
- Accepted Delivery: FOB
- Payment: T/T (USD/EUR)
- Languages: English, Chinese
