High-Temp Resistant Hydraulic Cylinder for Blast Furnace 25MPa
MOQ:
1 piece
Delivery Time:
12~60 days depends on products type
Brand:
Guoyue
Product Description

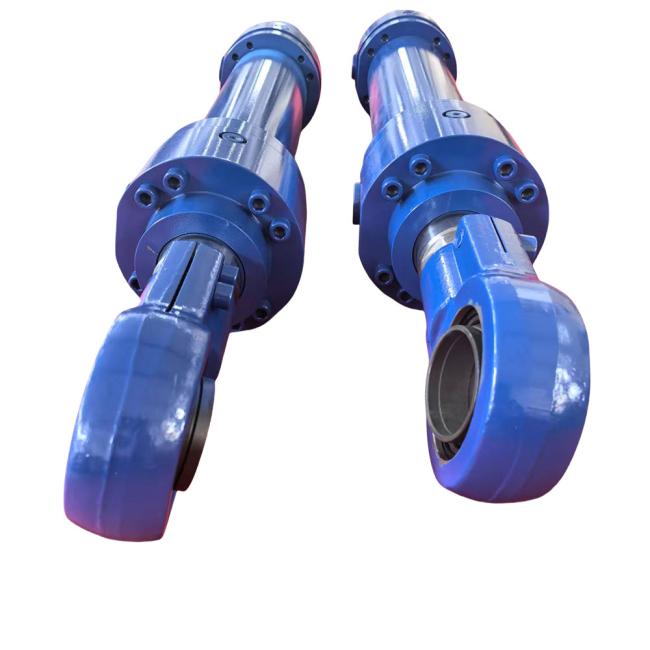

High-Temperature Resistant Hydraulic Cylinders for Blast Furnace Flap Chute Control
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Hydraulic Cylinder |
| Weight | 80kg |
| Power | 25MPa |
| Dimensions (L×W×H) | 780×170×170mm |
| Rod Diameter | 70mm |
| Maximum Stroke | Customized |
| Outer Tube Diameter | 125mm |
| Inner Tube Diameter | 100mm |
| Overall Length | Customized |
| Type | Single Acting Cylinder |
Product Description
Our OEM high-temperature resistant hydraulic cylinders are specifically designed for blast furnace flap chute control applications. Featuring built-in seal grooves, these cylinders maintain exceptional performance even in extreme heat conditions.
Key Features
- Premium Materials: Tube steel options include 45#, 42CrMo, or 27SiMn with H8 ground holes (Ra under 0.4μm)
- Robust Construction: Components made from 45# steel (no cast iron or cast steel)
- Safety Features: Choice of fixed or floating bumpers for controlled deceleration
- Quality Welds: Ultrasound testing on all heavy-load welds for stress reduction
- Premium Seals: International brands including Trelleborg (Sweden), Merkel and GP (Germany)
- Rigorous Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards
- Warranty: 1-year coverage from shipment date
Applications
These high-performance hydraulic cylinders are ideal for demanding industrial environments including:
- Blast furnace flap chute control
- Steel mills and foundries
- Engineering machinery and mining operations
- Shipping, metallurgy, and water conservancy projects
- Offshore and agricultural equipment
Additional Specifications
| Seal Options | Parker, Merkel, Hallite |
| Paint Colors | Red, Grey, Yellow, Black (customizable) |
| Material Options | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316 |
| Certifications | ABS, Lloyds, SGS |
| Packaging | Bubble-wrap with wooden case |
Company Information
Location: Jiangsu, China (established 2022)
Markets Served: Domestic (40%), Africa (10%), North America (10%), South America (8%), Southeast Asia (6%), Western Europe (5%), and other global markets
Workforce: 51-100 employees
Quality Assurance
- Pre-production samples provided before mass production
- Final inspection conducted before shipment
Product Range
We specialize in hydraulic cylinders including single-acting, double-acting, and construction machinery hydraulic cylinders.
Why Choose Us
Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd. is a technology-driven enterprise with 50 million yuan registered capital, specializing in research, design, development, production, and service of hydraulic solutions.
Service Information
| Delivery Terms | FOB |
| Payment Currency | USD, EUR |
| Payment Type | T/T |
| Languages | English, Chinese |
