TWIN Ford Transit Connect 1.8T Ford AC Hose 9T1619D850AC For 07-14

Our A/C Pipes are highly flexible, making them perfect for refrigerant lines. They are Multi-layer structure designed and have many properties,such like temperature adaptability (high temperature resistance)low permeability,chemical resistance and specification diversity.

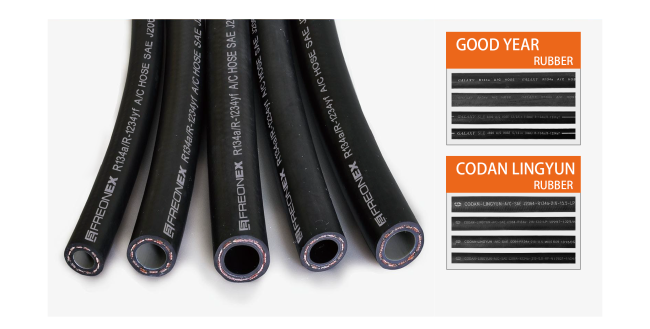

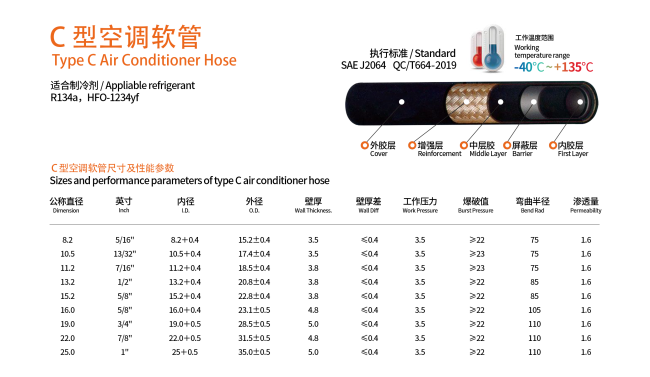

Automobile air conditioning hoses usually adopt a multi-layer structure. For example, a five-layer automobile air conditioning hose has an inner rubber layer, a nylon shielding layer, a middle rubber layer, a polyester fiber reinforcement layer, and an outer rubber layer from the inside to the outside. This structural design can prevent seepage layer by layer and effectively reduce the permeability of the refrigerant.

Automobile air conditioning pipes can work stably for a long time in the temperature range of -40℃ to 135℃, meeting the requirements of refrigerant circulation heat exchange.

• Product Name: A/C Pipes
• Temperature Range: -40-140 Degrees Fahrenheit
• Color: Silver/Black
• Connection Type: Withhold
• Material: Aluminum
• Application: Air Conditioning Systems
• Keywords: Refrigerant Lines, Ventilation Duct Hosing, AC AIR CONDITIONING PIPE HOSE

In a car's air conditioning system, the air conditioning pipes are the "blood vessels" connecting key components (compressor, condenser, evaporator, fluid storage tank, etc.). They transport the refrigerant, circulating it between different states to achieve the cooling effect. For example, when the driver turns on the air conditioning, the compressor compresses the low-pressure gaseous refrigerant into a high-temperature, high-pressure gas. This gas is then fed through a high-pressure pipe to the condenser, where it dissipates the heat and becomes a high-pressure liquid. This liquid then passes through a throttle tube or expansion valve into the evaporator, where it quickly becomes a low-temperature, low-pressure gas, absorbing heat from the vehicle and delivering cool air. Throughout this process, the high-pressure and low-pressure pipes, as well as the rubber hoses, perform both transmission and sealing functions. If the pipes leak or become clogged, the entire air conditioning system will not function properly.

Our A/C Pipes product technical support team is available to assist you with any questions you may have regarding the installation, maintenance, and troubleshooting of our product.

We also offer a variety of services to help ensure the optimal performance of your A/C Pipes, including:

• Installation support and guidance
• Maintenance and repair services
• Product testing and analysis
• Customization and design services

Our team of experienced professionals is dedicated to providing you with the highest level of customer service and support. Contact us today to learn more about our technical support and services for A/C Pipes.
