PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2

Name: PUR Jacket Winding Reels Cable Ts-Crane Hpjmce-0.6/1kv 4X50 mm2
Brand: Shanghai Shenghua Cable (Group) Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

PUR Jacket Winding Reels Cable TS-CRANE HPJMCE-0.6/1KV 4x50 mm2

1.Applicable Scope
Cable Type :TS-CRANE-HPJMCE -0.6/1KV 4X50mm²
2.Technical Specifications:

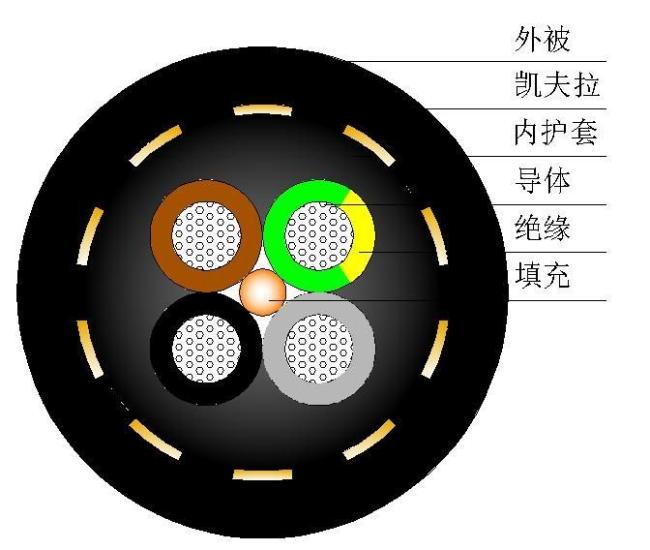

Diagrammatic cross-section				Insulation Color
				Brown,Black,Grey,Yellow/Green
				Marking on the Surface
				Shanghai shenghua Cable GroupTS-CRANE-HPJMCE 4X50mm² 0.6/1KV CE
Cable Construction
Cable Size	4X50mm²				/
Conductor material	Flexible tinned copper wire				/
Conductor Stranded No./Dia	1018/0.25±0.008mm				/
Conductor Dia after stranded	10.0mm				/
Insulation Material	Thermoplastic Rubber TPV				/
Diameter after insulation	13.0±0.4mm				/
Insulation Min Thickness	1.20mm				/
Insulation Average Thickness	1.40mm				/
Filler	Tensile Core filling
Inner sheath Material	PUR (Black)
Inner sheath Thickness	1.20mm
Tensile Braid Material.	Kevlar Tensile Braid.
Jacket Material	PUR(Black)
Jacket Average Thickness	3.00mm
Jacket Min Thickness	2.45mm
Total Cable O.D	40.2±1.5mm
Electrical Characteristics			Jacket Physical Properties
Conductor resistance at 20ºC :≤ 0.386Ω/km			Tensile Strength			≥20MN/m2
Rated Voltage:		0.6/1KV	Elongation			≥200%
Test Voltage		4000V/5min	Jacket characteristics			Wear resistant, oil resistant, tensile resistant
Temperature		-40-80ºC	chemical characteristic			Acid and alkali resistant, Hydrolysis resistance

3,Packaging and marking

The cable is used for the storage of dry and non corrosive gases.
Each cable should be accompanied by a certificate of conformity, indicating the name of the manufacturer, model and specification, manufacturing date, the implementation of standards, etc..
