Product Description
Design Of Digital Weighing Transmitter RJ45 Control Module Weighing Sensor For Human Body Pressure Sensor
Product Overview

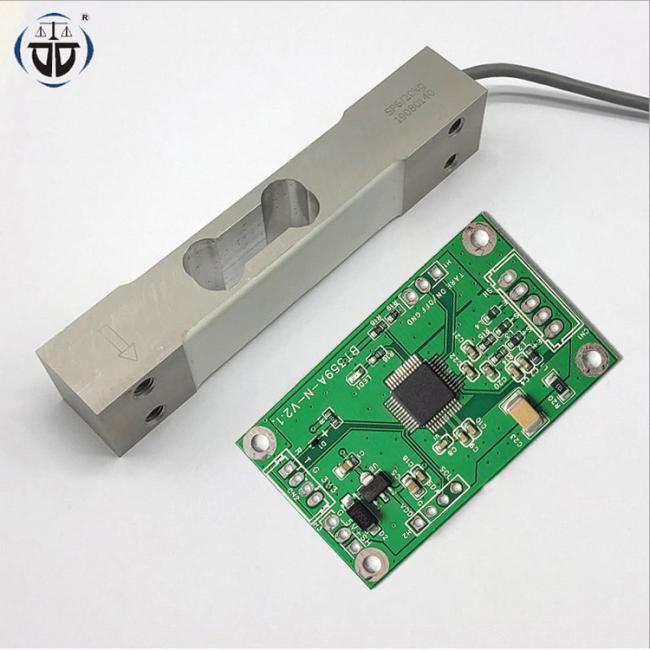

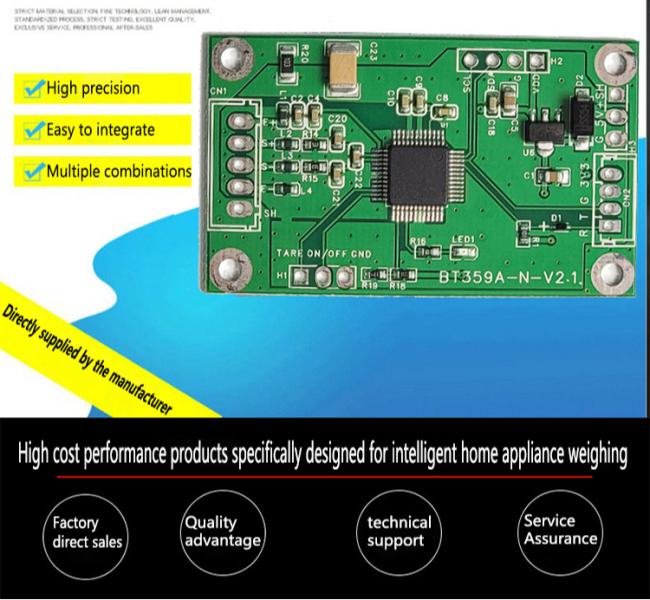

BT359A Digital Weighing Module
The BT359A weighing module is made of highly integrated circuits and can convert weak weighing signals into standard digital signals, which are sent to other central control units through the TTL uart interface. It is a cost-effective product designed specifically for the weighing needs of smart home appliances.
Product Features
1. Turn on/off, weigh and read values;
2. Peeling, zeroing, and calibration;
3. Start up and reset/not reset;
4. Range accuracy setting,
5. Anti static interference and anti signal interference;
6. digital signal;TTL/uart/telecommunications
7. ID can be set;
|
Specification parameters
|
|
|
|
|
||||
|
Power supply:
|
3V or 4.5-12V
|
|
Communication interface:
|
UART interface, 3V, TTL
|
||||
|
Working temperature:
|
-20-50 ℃
|
|
Protocol:
|
Add parameter reading function and write unlocking function
|
||||
|
Maximum temperature:
|
90% R.H
|
|
Non condensation Non linearity:
|
0.01% F.S
|
||||
|
Power consumption:
|
about 10, MW (including sensor)
|
|
Gain drift:
|
100ppM/℃
|
||||
|
PCB physical size:
|
length 50 * width 30 * height 3mm
|
|
A/D resolution:
|
1/200000
|
||||
|
Zero adjustment range:
|
-0.3-0.3mV
|
|
Maximum measurement accuracy:
|
1/100000
|
||||
|
Input range:
|
-5mV-5mV
|
|
Power supply protection:
|
Power supply reverse connection protection
|
||||
|
A/D conversion speed:
|
16/s
|
|
filtering:
|
multi-level digital filtering, with seismic interference function;
|
||||
The weighing problem we can solve
1. Unstable readings, jumps, and inaccurate weighing
2. Creep caused by long-term load and unreliable data
3. Unstable serial port, occasional inability to read data, garbled code, and parameter modification
4. High accuracy, unstable, low accuracy, stable but not sufficient
5. Insufficient applications, functions, and adjustable parameters, unable to meet application requirements
Your trouble is our profession! “
2. Creep caused by long-term load and unreliable data
3. Unstable serial port, occasional inability to read data, garbled code, and parameter modification
4. High accuracy, unstable, low accuracy, stable but not sufficient
5. Insufficient applications, functions, and adjustable parameters, unable to meet application requirements
Your trouble is our profession! “
