Force Measurement Crane Scale Load Cell 5 Ton 10 Ton 20 Ton 30 Ton with Safe Over Load and 150% RO

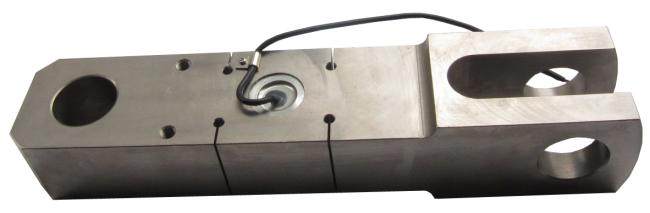

Crane Scale load cell 5 ton 10 ton 20 ton 30 ton

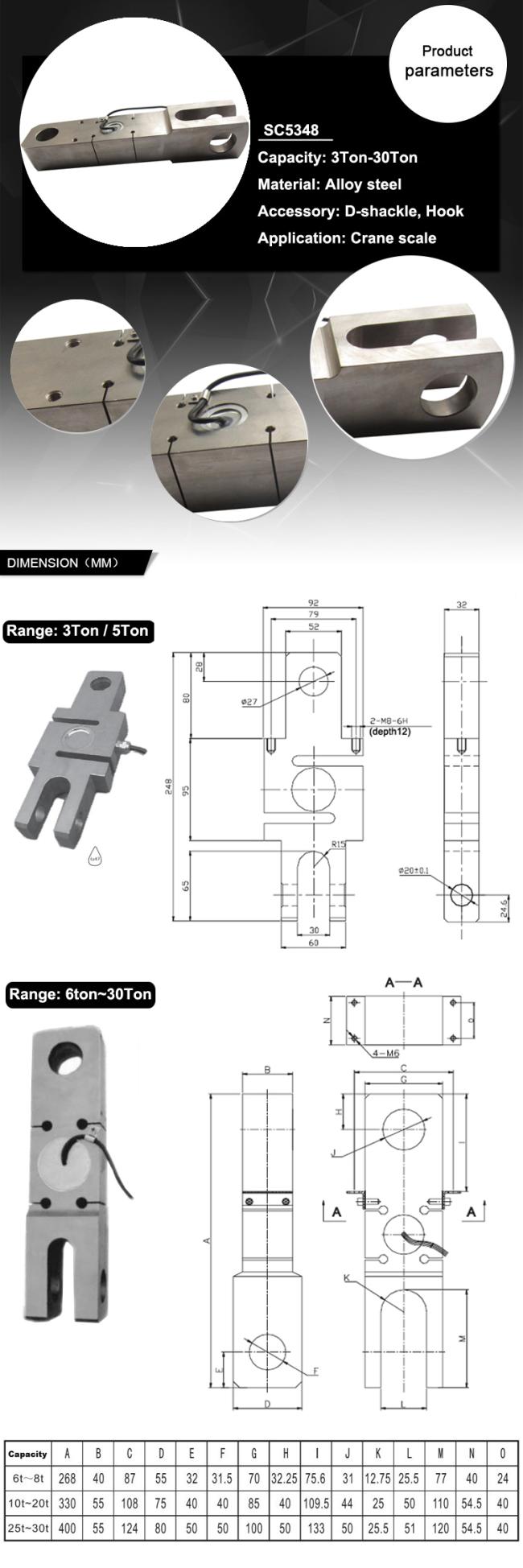

Model: SC5348
Capacity: 3Ton to 30Ton
Accuracy: C2
Application: Crane scale
Material: Alloy steel
Feature: Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments
Parameter:
| Application | Crane scale |
| Model | SC5348 |
| Capacity | 3T, 5T, 10ton, 20ton, 30ton |
| rated output | 2.0±0.02mV/V |
| Accuracy class | C2 |
| maximum number of verification intervals | 2000Nmax |
| Minimum loadcell cerification intervals | Emax/5000 Vmin |
| Combined error | ≤±0.030 % RO |
| Creep | 0.02%RO/30min |
| Temp. effect on sensitivity | 0.0016 %RO/℃ |
| Temp.effect on zero | 0.0026%RO/℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 380±5 ohm |
| Output resistance | 350±3 ohm |
| insulation resistance | 5000 MΩ(50V) |
| Recommended excitation voltage | 5-15V |
| Compensated temperature range | -10-+40℃ |
| operating temperature range | -35-+80 ℃ |
| safe overload | 150 %RO |
| Ultimate overload | 200%RO |
| loadcell material | Alloy steel |
| Connecting cable | Φ5.7x0.5m |
| Method of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |
| Sensorcon Product Lists | |||
| Strain Gauge | Load Cell | Torque Sensor | Display |
| Linear Strain gauge-AA | Wireless sensor | Slip ring rotary torque sensor | Platform scale display |
| Half bridge strain gauge-BB,HA,GB,FB | Micro load cell | Contactless rotary torque sensor | Truck scale display |
| Shear/torque strain gauge-AB,HA | Single point load cell | Static torque sensor | Controller |
| Full bridge strain gauge-EB, FG,FD | Button load cell | Meters | Junction box |
| Tee Rosettes strain gauge-CA,BA | Shear beam load cell | Coupling | Big screen display |
| Round type strain gauge | S type load cell | Amplifier | |
| Semi-conductor strain gauge | Column load cell | ||
| Bridge type load cell | |||
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
Crane Scale load cell 5 ton 10 ton 20 ton 30 ton
