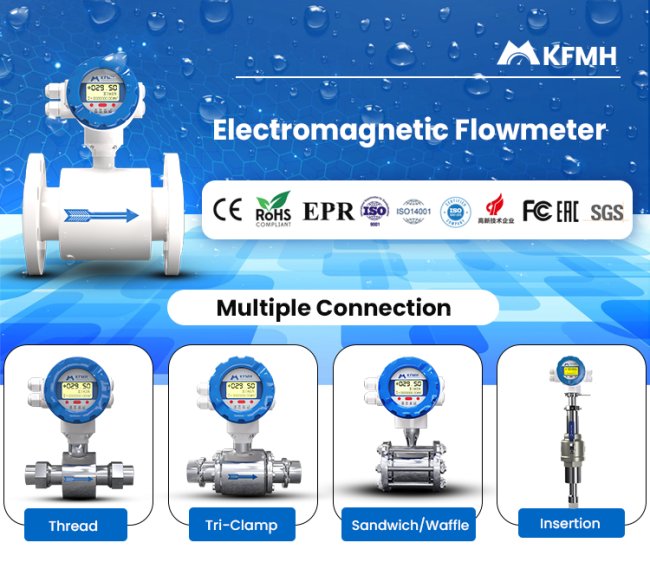

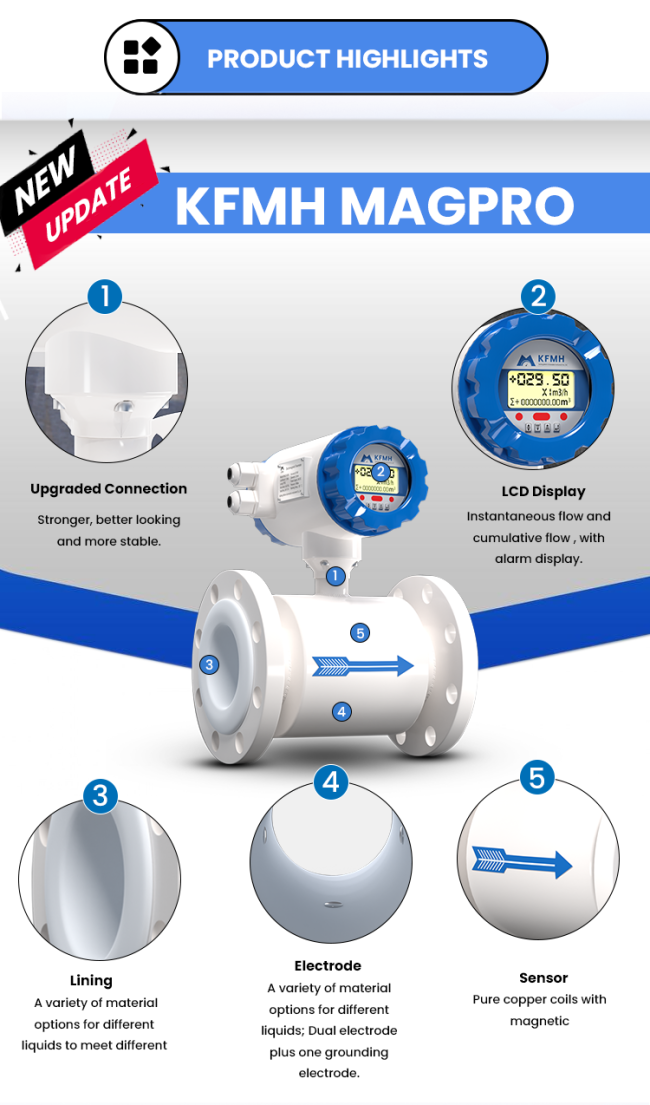

Electromagnetic Flowmeter
Electromagnetic flowmeter is a velocity type flowmeter used for flow measurement based on Faraday's electromagnetic induction law. it is suitable for industrial pipe diameters ranging from DN3 to DN3000. The output signal is linear with the measured flow rate, with high accuracy. it can measure acid.alkali, salt solutions, water, sewage, corrosive liquids with a conductivity of > 5us/cm, as well as fluids such as mud, slurry, pulp, etc

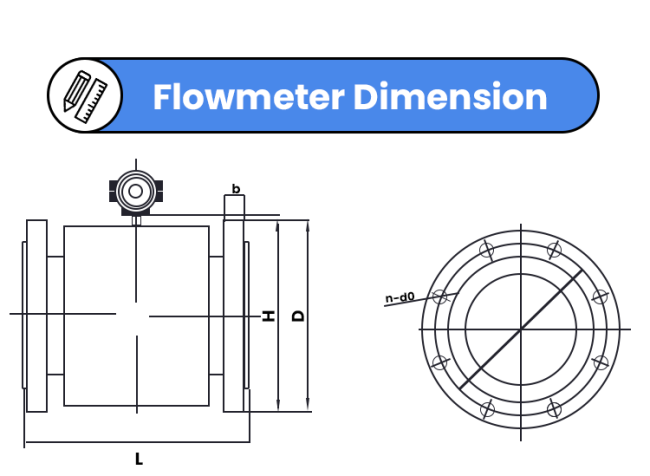

| Nominal Diameter |
L | H | D | d0 | n |
|---|---|---|---|---|---|
| 15 | 200 | 160 | 95 | 14 | 4 |
| 20 | 200 | 167 | 105 | 14 | 4 |
| 25 | 200 | 169 | 115 | 14 | 4 |
| 32 | 200 | 185 | 140 | 18 | 4 |
| 40 | 200 | 193 | 150 | 18 | 4 |
| 50 | 200 | 206 | 165 | 18 | 4 |
| 65 | 250 | 224 | 185 | 18 | 4 |
| 80 | 250 | 241 | 200 | 18 | 8 |
| 100 | 250 | 263 | 220 | 18 | 8 |
| 125 | 250 | 295 | 250 | 18 | 8 |
| 150 | 300 | 325 | 285 | 22 | 8 |
| 200 | 350 | 383 | 340 | 22 | 12 |
| 250 | 450 | 440 | 405 | 26 | 12 |
| 300 | 500 | 498 | 460 | 26 | 16 |
| 350 | 550 | 553 | 520 | 26 | 16 |
| 400 | 600 | 608 | 580 | 30 | 16 |
| 450 | 600 | 665 | 640 | 30 | 20 |
| 500 | 600 | 727 | 715 | 33 | 20 |
| 600 | 600 | 840 | 840 | 36 | 20 |
| 700 | 700 | 895 | 895 | 30 | 24 |
| 800 | 800 | 1002 | 1015 | 33 | 24 |
| 900 | 900 | 1107 | 1115 | 33 | 28 |
| 1000 | 1000 | 1222 | 1230 | 36 | 28 |
| 1200 | 1200 | 1437 | 1405 | 33 | 32 |
| 1400 | 1400 | 1663 | 1630 | 36 | 36 |
| 1600 | 1600 | 1863 | 1830 | 36 | 40 |
| If you need to customize the length or other dimensions, please contact our specialist at any time. | |||||
| Diameter | Flow range(m3/h) | ||
|---|---|---|---|
| (mm) (m3/h) | 0.1~0.5(m/S) (m3/h) | 0.5~5m/SRecommend flow range(m3/h) | 5~10(m/S) (m*/h) |
| DN10 | 0.028~1.414 | 0.14~1.4 | 1.4~2.8 |
| DN15 | 0.06~0.3 | 0.3~3.0 | 1.4~2.8 |
| DN15 | 0.06~0.3 | 0.3~3.0 | 3.0~6.0 |
| DN20 | 0.114~0.57 | 0.57~5.7 | 5.7~11.4 |
| DN25 | 0.114~0.57 | 0.9~9.0 | 9.0~18 |
| DN32 | 0.29~1.5 | 0.29~1.5 | 15~30 |
| DN40 | 0.45~2.2 | 2.2~22 | 22~44 |
| DN50 | 0.707~3.5 | 3.5~35 | 35~70 |
| DN65 | 0.45~2.2 | 2.2~22 | 22~44 |
| DN80 | 1.81~9 | 9-90 | 90~180 |
| DN80 | 1.81~9 | 9-90 | 90~180 |
| DN125 | 4.42-~22 | 22~220 | 220~440 |
| DN150 | 6.36~32 | 32~320 | 320~640 |
| DN200 | 11.3~57 | 57~570 | 570~1140 |
| DN250 | 17.7~88.5 | 88.5~850 | 850~1700 |
| DN300 | 25.45~127.8 | 127.8~1278 | 1278~2556 |
| DN350 | 34.6~173 | 173~1730 | 1730-3460 |
| DN400 | 45.2~226 | 226~2260 | 2260~4520 |
| DN450 | 57.3~287 | 287~2870 | 2870~5740 |
| DN500 | 70.7~354 | 354~3540 | 3540~7080 |
| DN600 | 102~510 | 510~5100 | 5100~10200 |
| DN700 | 139~695 | 695-6950 | 6950~13900 |
| DN800 | 181~905 | 905~9050 | 9050~18100 |
| DN900 | 229~1145 | 229~1145 | 11450~22900 |
| DN1000 | 283~1415 | 1415~14150 | 14150~28300 |
| DN1200 | 407~2035 | 2035~20350 | 20350~40700 |
| DN1400 | 554~2770 | 2770~27700 | 27700~55400 |
| DN1400 | 554~2770 | 2770~27700 | 27700~55400 |
| DN1600 | 723~3615 | 3615~36150 | 36150~72300 |

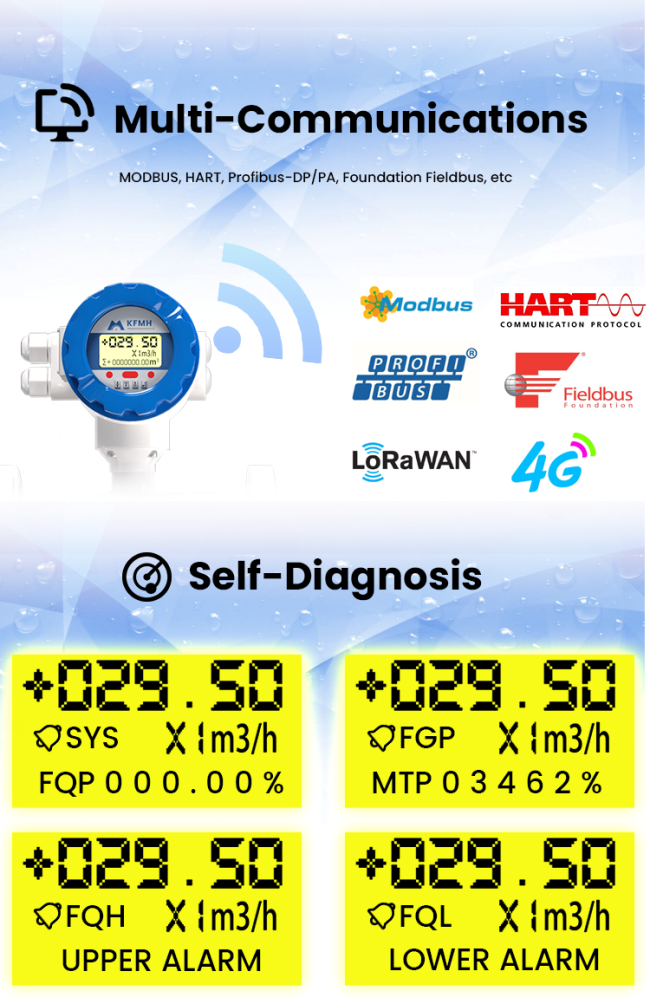

After power on and during working. Flow meter will automatically run self-diagnosis function, to ensure its functionality and accuracy.
Q:Can I customize my logo and name on the label and the body?
A: Sure thing, we support 1 set customization for logo, text, and painting on product label, body, packing case, and so on.
Q: Can you provide installation videos or manuals for us?
A: No problem, we'll provide tutorials for install ation for you. Forall our client, we'll make a service group with senior engineer 1 to 1 consult 24/7.
Q: What's your warranty?
A: Our warranty for different product type is between 12 months to 60 months.
Q: After I paid, how long for delivery?
A: To boost the effciency, we can arrange all the materials and components before your payment. So once the payment is received, the manufacture and calibration time can be reduced to 2-5 days. Then the delivery will take 3-7 days normally.
Q: How to pay?
A: We support T/T, Western Union, PayPal, Credit Card, Apply Pay, Google Pay, etc.
