Outdoor fiber optic cable GYTA53 direct buried stranded loose tube armored cable

1. Description

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

2.Featiures

• Steel wire strength filler protect tube fiber. Steel tape armord.
• Good ultra violet radiation resistant property.
• Double sheath and Double armored .
• Good moisture resistance.

3.Specifications

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

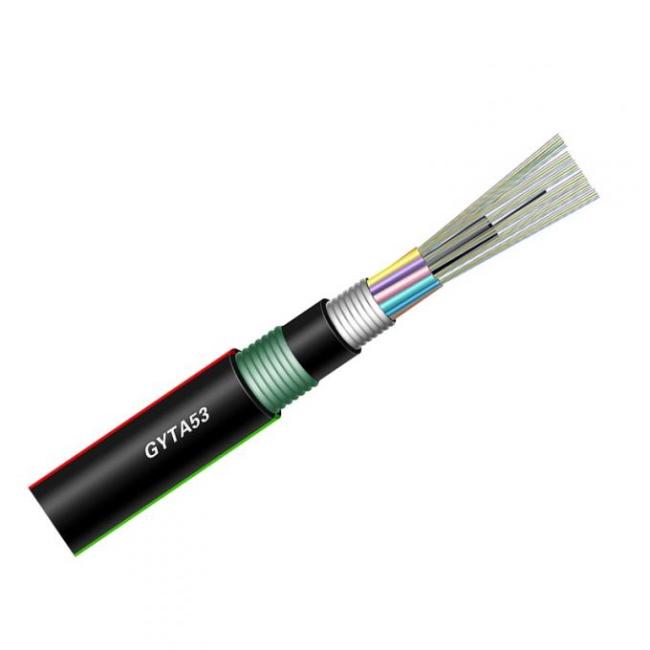

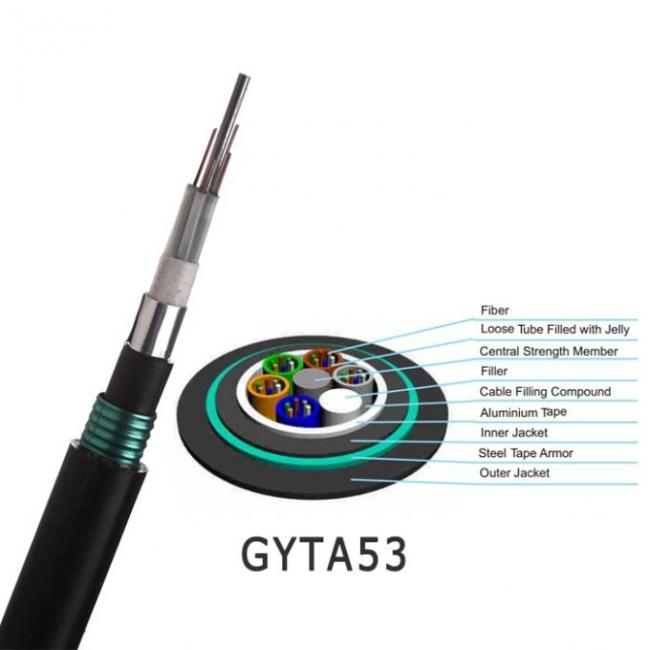

4. Structure and Product Pictures

5.Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
