48 Fiber OPGW Outdoor Fiber Optic Cable Aerial Ground Wire Stainless Steel Optical Unit
OPGW Optical Ground Wire 48core Outdoor Aerial fiber optic cable
1. Description
OPGW is a dual functioning cable performing the duties of a ground wire and also providing a patch for the transmission of voice, video or data signals . The fibers are protected from environmental conditions (lightning, short circuit, loading) to ensure reliability and longevity. The cable is designed to be installed on transmission and distribution lines to carry voice, data and video communications, especially in lighting waveform monitoring system, an observation system for overhead test line, maintenance data information system, power line protection system, power line operation system, and unmanned substation monitoring
2.Specifications
2.1 Product Characteristics
• Large diameter, large fiber capacity
• The structure is stable and the reliability is high
• Excellent capability against side and outstanding short circuit current capacity
• The optimum stranding design can obtain the surplus length of secondary optical fiber
• The number of strands can be designed in two or three layers
• Match with common ground wires

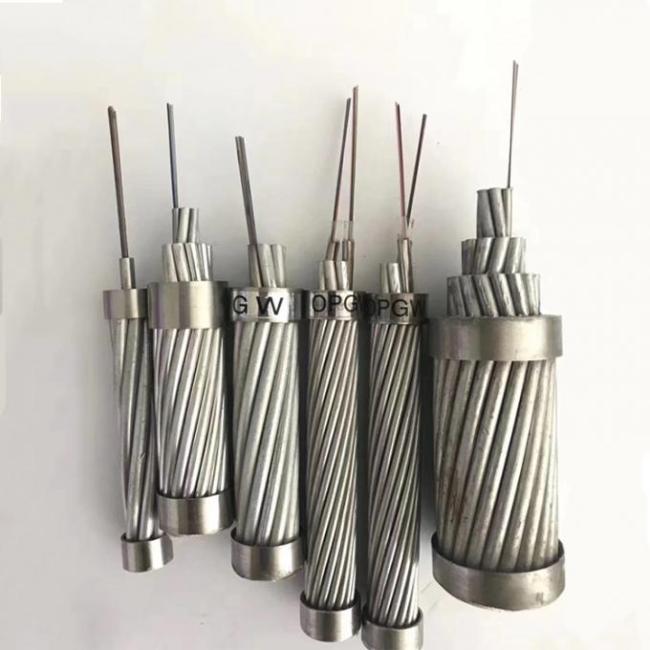

2.2 Structure and Technical Specifications
| Model | Structure | Max fiber count | AS sectional area | Diameter(mm) | Weight (kg/km) |
RTS (kN) |
20°C DC resistance (O/km) | 40-200°C Allowable short circuit current capacity(KA2.S ) |
| OPGW-48B1.3-90- [112;45] | 1/2.6/20AS+4/2.5/20AS+ | 48 | ≈90 | 13.2 | ≤641 | ≥112 | ≤0.98 | ≥45 |
| 11/2.8/20AS,Unit2/2.5 | ||||||||
| OPGW-48B1.3-90- [57;67] | 1/2.6/40AS+4/2.5/40AS+ | 48 | ≈90 | 13.2 | ≤457 | ≥57 | ≤0.52 | ≥67 |
| 11/2.8/40AS,Unit 2/2.5 | ||||||||
| OPGW-24B1.3-100-[118;50] | 1/2.6/20AS+5/2.5/20AS+ | 24 | ≈100 | 13.2 | ≤674 | ≥118 | ≤0.93 | ≥50 |
| 11/2.8/20AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-100-[60;74] | 1/2.6/40AS+5/2.5/40AS+ | 24 | ≈100 | 13.2 | ≤479 | ≥60 | ≤0.49 | ≥74 |
| 11/2.8/40AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-110-[133;63] | 1/2.6/20AS+5/2.5/20AS+ | 24 | ≈110 | 14 | ≤760 | ≥133 | ≤0.83 | ≥63 |
| 10/3.2/20AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-110-[140;68] | 1/2.8/20AS+5/2.7/20AS+ | 24 | ≈110 | 14.3 | ≤791 | ≥140 | ≤0.80 | ≥68 |
| 11/3.05/20AS,Unit 1/2.6 | ||||||||
| OPGW-24B1.3-110-[67;95] | 1/2.9/20AS+5/2.8/20AS+ | 24 | ≈37 | 14.1 | ≤473 | ≥67 | ≤0.40 | ≥95 |
| 12/2.8/AA,Unit 1/2.7 | ≈74(AA) | |||||||
| OPGW-36B1.3-120-[145;73] | 1/3.0/20AS+5/2.9/20AS+ | 36 | ≈120 | 14.6 | ≤820 | ≥145 | ≤0.77 | ≥73 |
| 12/2.9/20AS,Unit 1/2.8 | ||||||||
| OPGW-36B1.3-120-[95;98] | 1/3.0/30AS+5/2.9/30AS+ | 36 | ≈120 | 14.6 | ≤700 | ≥95 | ≤0.55 | ≥98 |
| 12/2.9/30AS,Unit 1/2.8 | ||||||||
| OPGW-36B1.3-120-[74;110] | 1/3.0/40AS+5/2.9/40AS+ | 36 | ≈120 | 14.6 | ≤582 | ≥74 | ≤0.42 | ≥110 |
| 12/2.9/40AS, Unit 1/2.8 | ||||||||
| OPGW-72B1.3-120-[147;76] | 1/3.2/20AS+4/3.0/20AS+ | 72 | ≈120 | 15.2 | ≤832 | ≥147 | ≤0.76 | ≥76 |
| 12/3.0/20AS, Unit 2/2.9 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
3. We produce and test the cable complying with the following standard
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
4. Packing and Shipping

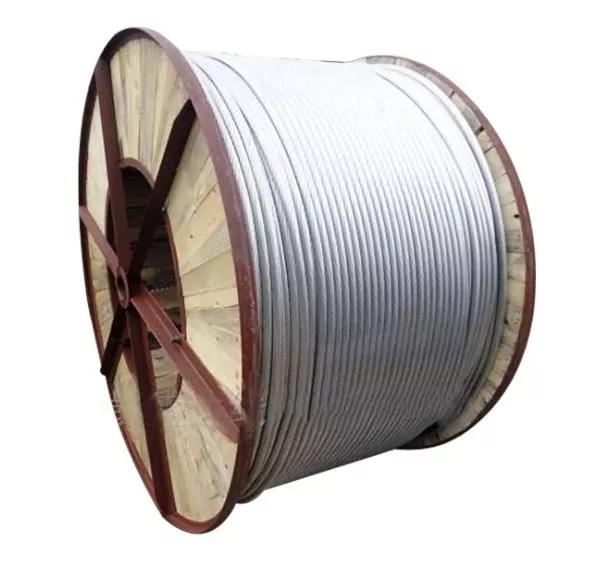

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
