8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM
8 Shape 1km GYTC8S Outdoor Fiber Optic Cable
1~144 Core Fiber Optic Cable with 8 Shape Self Supporting Messenger GYTC8S

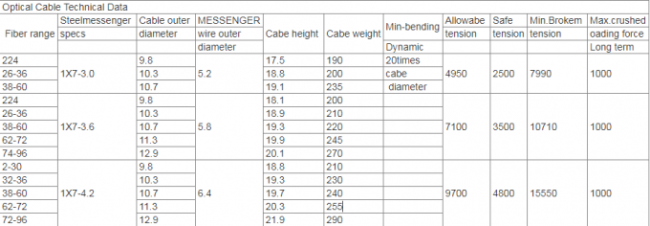

| Technical data: | ||||||||||||
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min.bend radius | Max. Running tension (N) | Safe running tension (N) | Min.Breaking tension (N) | Max.crush loading (N/100mm) | ||
| Dynamic | Static | Short term | Long term | |||||||||
| 2-12 | 1×7-3.0 | 8.3 | 5.0 | 15.8 | 135 | 10D | 20D | 3000 | 1000 | 7990 | 2000 | 1000 |
Packaging & Delivery:
Packaging Details
wooden drum or as customized.
Delivery Time
According to the order quantity,usually within 1 week

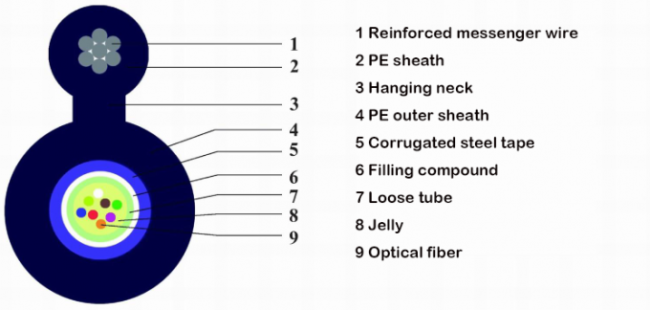

Description
1.250μm Coloured Fiber
2.PBT loose Tube
3.Tube Filling Compound(Gel)
4.APL Moisture barrier
5.Stranded wires as the self-supporting messenger
Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· 100% cable core filling
· PSP enhancing moisture-proof
Standards:
GYTC8YA/S cable complies with Standard YD/Y 1155-2001 as well as IEC 60794-1
Storage/Operating Temperature: -40°C to + 75°C
