Direct Buried Stranded Loose Tube Armored Cable, GYTS53 Outdoor Fiber Optic Cable

Description

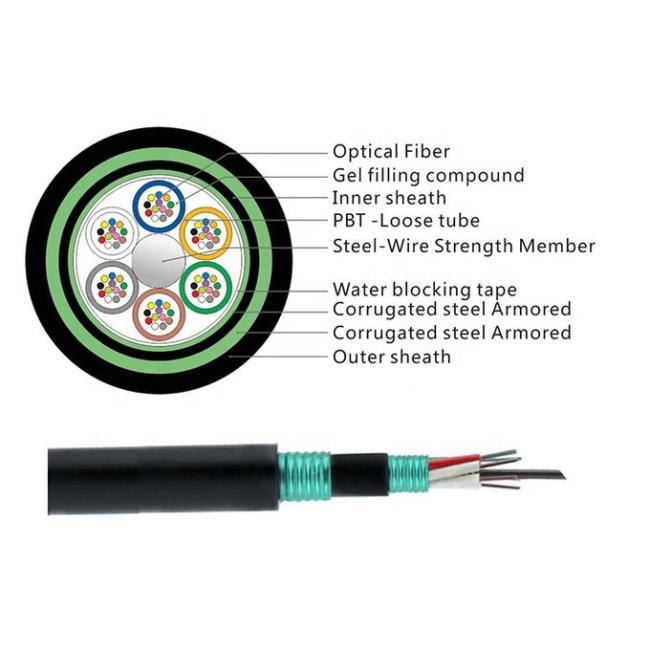

The GYTS53 outdoor fiber optic cable has single-mode/multimode fibers in loose tubes filled with water blocking compound, which are then stranded around a strength member to form a circular cable core. A Plastic Steel Plastic (PSP) layer is applied over the core for protection, and the cable is completed with a thin inner PE sheath and an outer PE sheath.

Features

To ensure water blocking, the cable uses a single steel wire for strength, special water-blocking compound in the loose tube, and 100% APL and PSP moisture barrier.

Application

Fiber optic cables can be aerial, duct, or outdoor.

Specifications

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

Structure and Product Pictures

Packing & Shipping

Cables are supplied in specified lengths and shipped on separate iron-wooden drums, with minimum barrel diameter not less than 30 times the cable diameter. Cable ends are sealed with plastic caps for water protection and easy accessibility for testing. The drum contains a final inspection report with attenuation data for each fiber.
