Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8S
Price:
500-3000RNB/KM
MOQ:
20km
Delivery Time:
It depends on the actual situation
Brand:
MingTong
Product Description
Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable Gyxtc8a Gyxtc8s

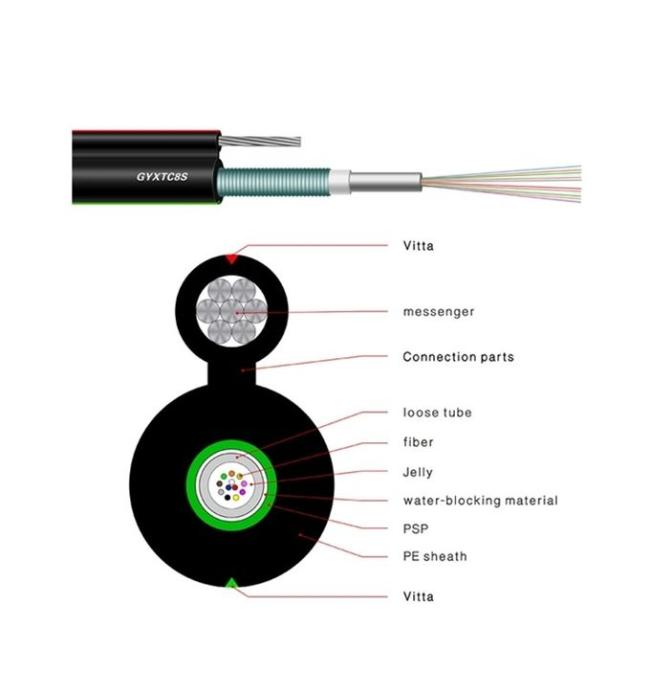

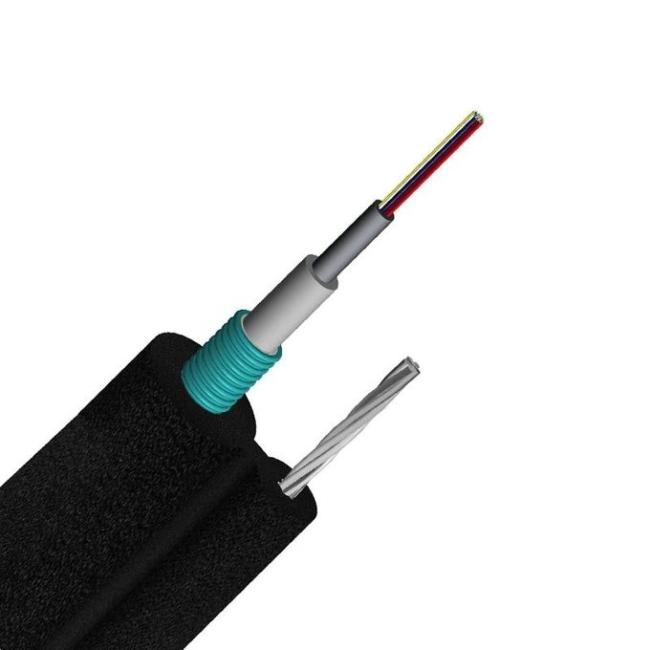

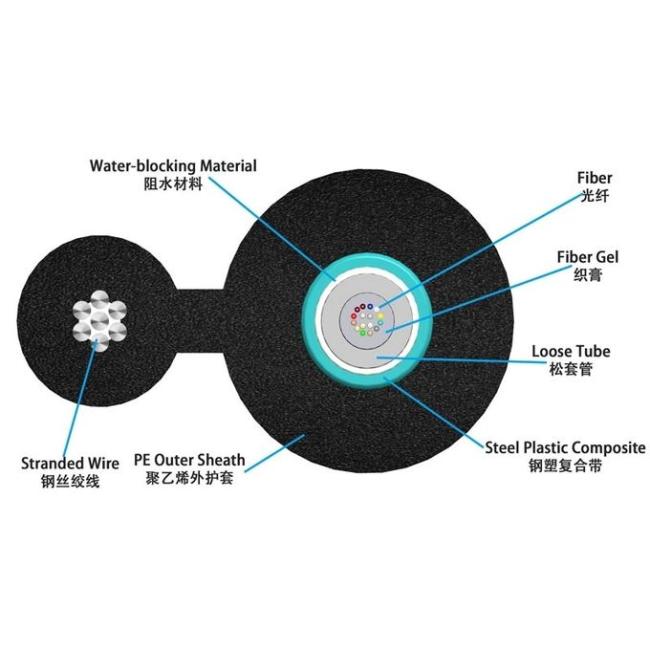

GYXTC8S is a typical outdoor use fiber optic cable for aerial applications; GYXTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multimode GYXTC8S fiber cables from 2-fiber type to 24-fiber type. GYXTC8A
Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
Spec:
| Fiber Range | outer diameter | weight | Min bending radius | Alowable tension | Max.crush loading force | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-36 | 10.4 | 90 | 10times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 38-60 | 11.2 | 105 | ||||||
| 62-72 | 11.7 | 115 | ||||||
| 74-96 | 13.4 | 150 | ||||||
| 98-120 | 15 | 190 | ||||||
| 122-144 | 16.6 | 230 | ||||||
| 146-216 | 16.9 | 240 | ||||||
| 218-240 | 19.3 | 305 | ||||||
| 242-288 | 21.5 | 375 | ||||||
| Optical Cable Technical Data | ||||||||||
| Fiber range | Steelmessenger | Cable outer | MESSENGER | Cabe height | Cabe weight | Min-bending | Allowabe | Safe | Min.Brokem | Max.crushed |
| specs | diameter | wire outer | tension | tension | tension | oading force | ||||
| diameter | Dynamic | Long term | ||||||||
| 224 | 1X7-3.0 | 9.8 | 5.2 | 17.5 | 190 | 20times | 4950 | 2500 | 7990 | 1000 |
| 26-36 | 10.3 | 18.8 | 200 | cabe | ||||||
| 38-60 | 10.7 | 19.1 | 235 | diameter | ||||||
| 224 | 1X7-3.6 | 9.8 | 5.8 | 18.1 | 200 | 7100 | 3500 | 10710 | 1000 | |
| 26-36 | 10.3 | 18.9 | 210 | |||||||
| 38-60 | 10.7 | 19.3 | 220 | |||||||
| 62-72 | 11.3 | 19.9 | 245 | |||||||
| 74-96 | 12.9 | 20.1 | 270 | |||||||
| 2-30 | 1X7-4.2 | 9.8 | 6.4 | 18.8 | 210 | 9700 | 4800 | 15550 | 1000 | |
