Armored Anti UV PE Jacket 2-24 Core GYXTW SM Fiber Optic Cable
GYXTW
Central Loose Tube Fiber Optic Cable

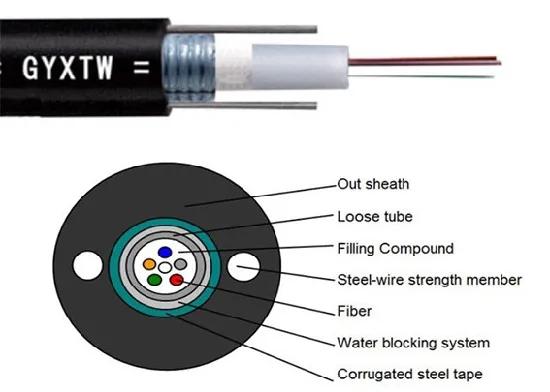

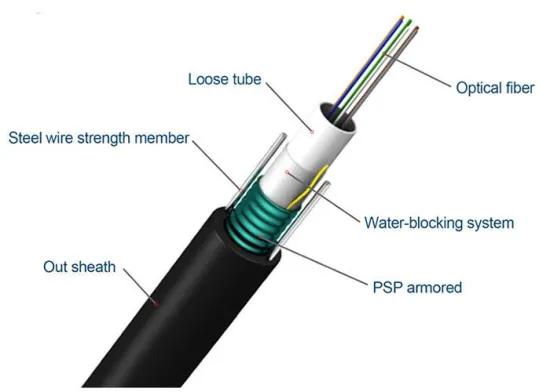

The fibers are positioned in a loose tube filled with a water-resistant filling compound. Two parallel round steel wires are placed at the two sides of inner PE sheath, outside the central loose tube it is wrapped by water-blocking system, corrugated steel tape is laminated at both side and bonded to PE outer jacket.
Feature
1. Double wire as strain member provides excellent strain performance
2. Excellent mechanical performance
3. Easy to installation and operation
4. Small outer diameter, lightweight, tight structure, excellent bending property
5. Good water-resistant properties
Specification
Optical Charateristics
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
|
Attenuation (+20X) |
850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Structure and Technical Specifications
| Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.8 | 60 | 1500 | 600 | 1500 | 600 |
| 14~24 | 8.5 | 85 | 1500 | 600 | 1500 | 600 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for
more detailed information.
Application
Aerial & Duct
