Black Central Loose Tube Cable Figure 8 Self Support Fiber Optic Cable GYXTC8S GYXTC8A
Price:
500-3000RNB/KM
MOQ:
20km
Delivery Time:
It depends on the actual situation
Brand:
MingTong
Product Description

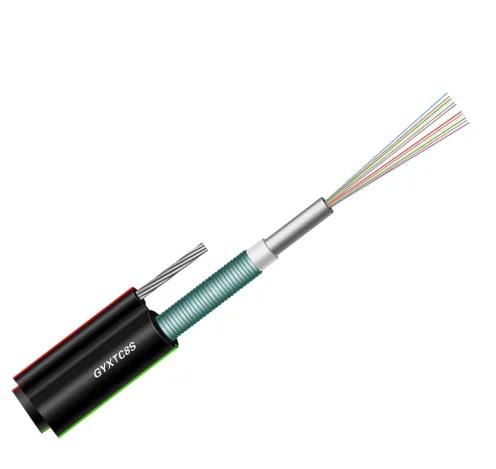

central loose tube figure 8 self-support fiber optic cable GYXTC8S/GYXTC8A
Product Description
This GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable has been designed for long haul / backbone application. GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable are designed for easy and economical installation.
GYXTC8S Outdoor Self-support Multimode Optic Fiber Cable Structure &Properties:
1. Up to 24 fibers The loose tube OS centrally situated with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath prociding providing property crush resistance and gun shot resistance features.
3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.
GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable Applicable Fields:
This cable has been designed for aerial application with messenger wire as support member made excellent anti-pull performance and easy installation.
GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable Technical Date:
Technical data: |
||||||||||||
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min.bend radius | Max. Running tension (N) | Safe running tension (N) | Min.Breaking tension (N) | Max.crush loading (N/100mm) | ||
| Dynamic | Static | Short term | Long term | |||||||||
| 2-12 | 1×7-3.0 | 8.3 | 5.0 | 15.8 | 135 | 10D | 20D | 3000 | 1000 | 7990 | 2000 | 1000 |
