48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable
Price:
500-5000RNB/KM
MOQ:
20km
Delivery Time:
It depends on the actual situation
Brand:
MingTong
Product Description
2-48 Core Optical Fiber Composite Overhead Ground Wire OPGW
Description
The central stainless steel tube cable and the OPGW are widely used for electric and communication needs. OPGW has multiple functions and can be customized for different structures.
Features
Fibers are protected and lightweight with excellent mechanical and electrical properties. They withstand high stress and match common ground wires.
Speicfications
| Classification | Material | Value | |
|
Construction |
Optical Fibre | G652D/G655 etc. | 2 - 48 |
| Protection Tube | Stainless steel tube | 1.5 - 6mm | |
| Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | |
| Max. Diameter | 18mm | ||
| Max. Cross Section | 200mm2 | ||
|
Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | ||
| Max. Tensile Strength (RTS ) (kN) | 280 | ||
| Max. Crush Strength(N/100mm) | 2200 | ||
| Max. Short Current Capacity (40℃-200℃)(kA2s) | 100 | ||
| Min. Bending Radius (Dynamic) | 20D | ||
| Min. Bending Radius (Static) | 15D | ||
| Environment Performance | Installation (℃) | -10 to +50 | |
| Transportation and Operation (℃) | -40 to +65 | ||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

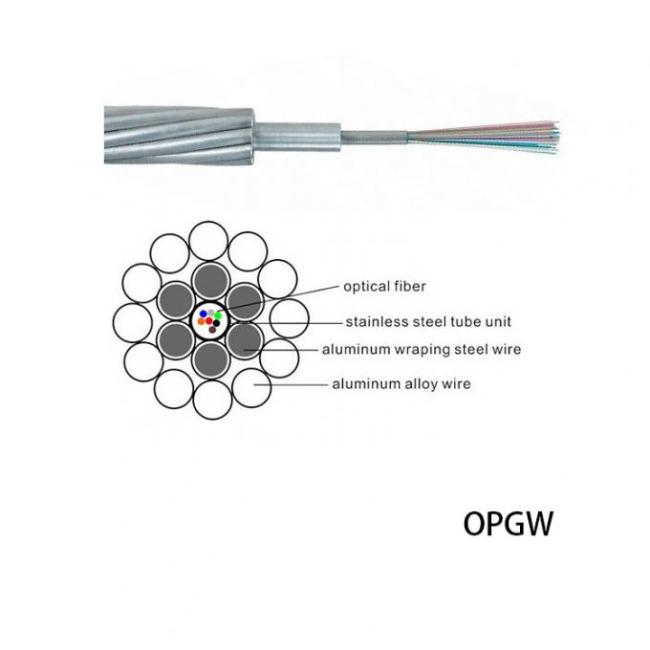

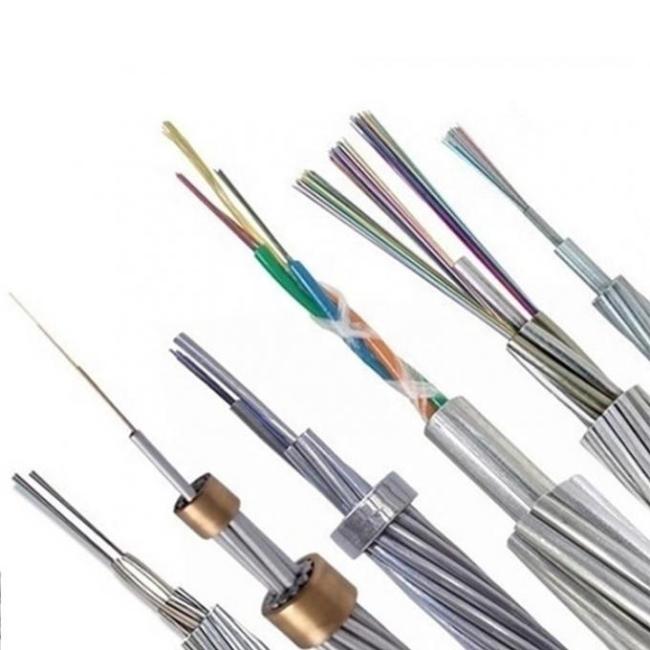

Structure and Product Pictures
Packing & Shipping
Cable is supplied on separate drums in specified lengths with plastic protection caps, and a test report for each fiber.
