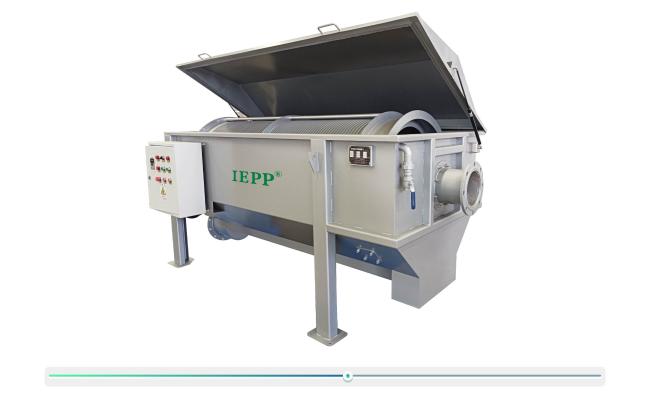

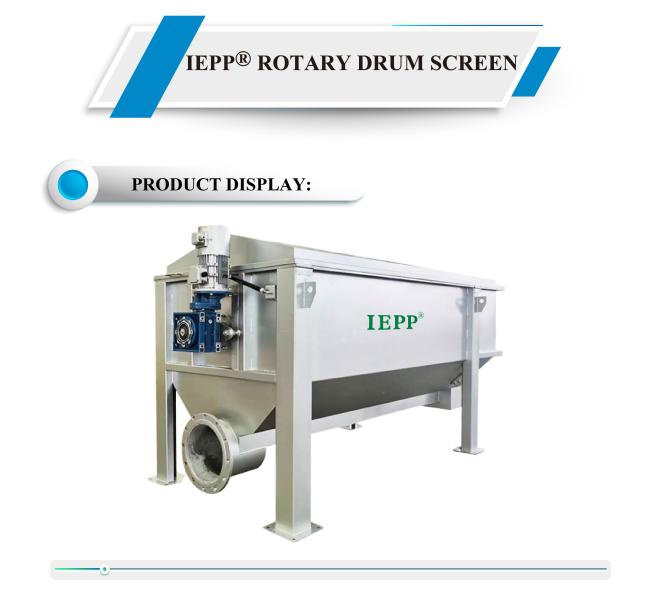

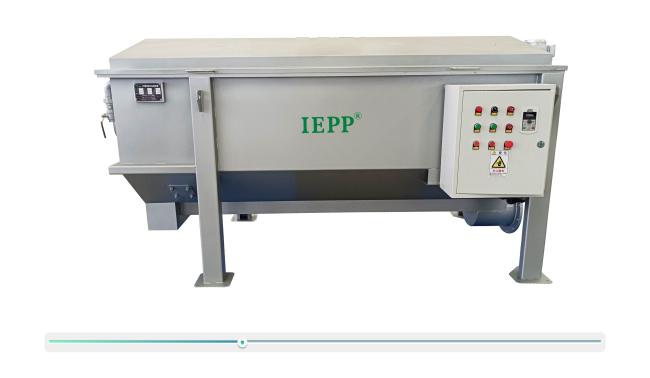

The IEPP® Rotary Drum Screen is an automatic, self-cleaning fine screen useful for applications from primary to membrane screening in municipal and industrial sewage treatment applications, designed specifically to protect secondary and tertiary wastewater treatment systems. The fine opening perforated media of the IEPP unit can effectively remove these materials in normal operation.
Latest Splicing Drum Screen Design Stainless Steel Rotary Drums Filter for Aquaculture Wastewater Treatment
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
IEPP supplier customizable 0.25mm~3mm slot cylinder sieve swine farm grey water wastewater treatment rotating drum screen filter
The Rotary Drum Screen consists of:
Drum of perforated media
External spray system
Flow distribution pipe
Support structure with trunnion wheels
Removable enclosures
Drum drive system composed of a gear motor and that eliminates chain maintenance.
Support structure and all wetted parts available in 304 or 316 stainless steel.
IEPP® Rotary Drum Screen Operation
Flow is pumped to the distribution pipe where it is directed onto the rotating drum. Wastewater passes through the openings in the drum while the captured screenings remain on the drum surface. Non-continuous flights inside the drum transport the screenings towards the discharge end of the drum. The screenings exit the unit and fall into a post screening device or a container. Spray water cycling is adjustable to ensure maximum performance.

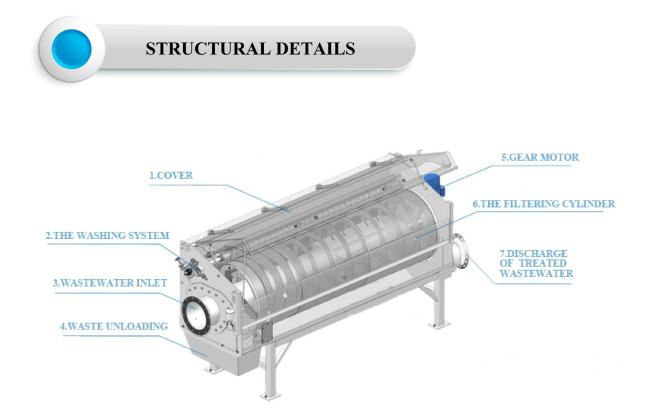

1.COVER
A cover is provided for visual control of the process and ease of maintenance
2.THE WASHING SYSTEM
Cleaning the cylinder filter cloth is carried out by the rinsing nozzies that are supplied with water under pressure and placed on the outer surface of the cylinder in the upper area of the screen
3.WASTEWATER INLET
Untreated wastewater from the receiving manifold goes to the distribution device and then directly to the cylinder filtering surface
4.WASTE UNLOADING
An additional compacting press can be installed in the discharge area with a system for packing the waste into bags to prevent the spread of odours and reduce the volume of transported waste
5.GEAR MOTOR
The cylinder is driven by a gear motor for unloading waste from the screen and cleaning of the fitering surface
6.THE FILTERING CYLINDER
Cylinder filter cloth can be made of a triangular profile, perforated cloth or metal mesh depending on the type of wastewater and the required gap
7.DISCHARGE OF TREATED WASTEWATER
Treated wastewater is discharged by gravity from the baottom part of the screen

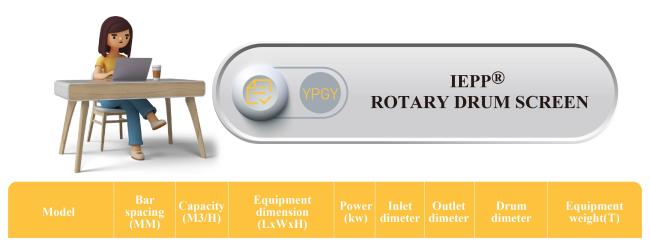

IEPP-ZG-100 | 0.25~3 | 100 | 2270x1100x1275 | 0.75 | DN150 | DN250 | 0.75 | 0.59 |
IEPP-ZG-150 | 0.25~3 | 150 | 2970x1300x1445 | 0.75 | DN200 | DN300 | 0.75 | 0.9 |
IEPP-ZG-200 | 0.25~3 | 200 | 3570x1300x1445 | 0.75 | DN250 | DN350 | 0.75 | 1.25 |
1.Q: Are you a factory or trading company?
A: We are a factory. we have rich experience for
manufacturing sewage treatment equipment for more than 15 years.
2.Q: Do you have minimum order quantity reguest?
A: No minimum order, but it can get a discount if you order a large quantity.
3.Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team.
We can provide drawings according to your requirements.
4. Q: How to buy your products?
A: You can provide us your water sources, water quality,
flow rate and ground area (contact us for more details)
5. Q: How to pay?
A: TT and L/C are acceptable and TT will be more
appreciated. 50% deposit before producing,
50% balance before loading.
6. Q: What is the delivery time?
A: It depends on order quantities. Generally speaking the
delivery time will be within 4 to 6 weeks.
