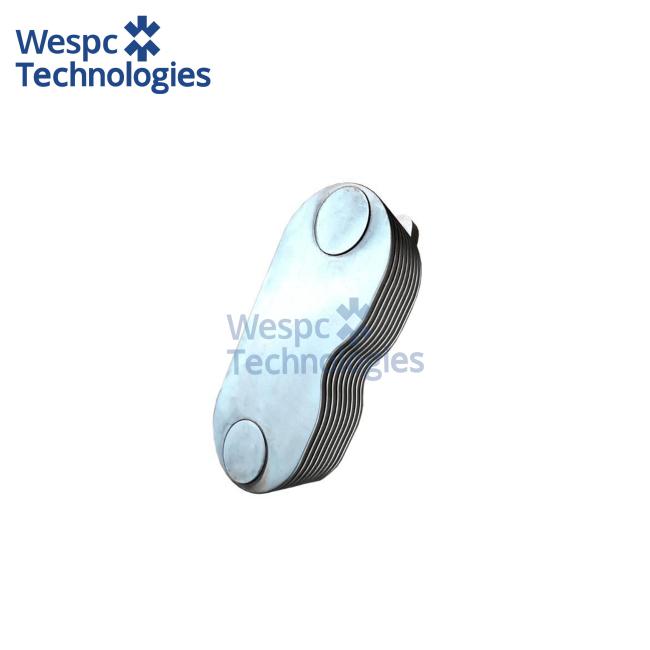

WESPC Oil Cooler Core 2486A015 For Perkins 1104D-E44T Engine Spare Parts Diesel Engine

Application:

Technical specifications:

Core envelope 13 cm × 10 cm × 8 cm, weight 1.5 kg, layer count 11 P, heat-rejection capacity ≈6 kW at rated engine load, working pressure 6 bar, burst pressure 18 bar, operating range –40 °C to 150 °C, integral bypass valve 2.5 bar to protect during cold starts.

Material & performance features:

Full stainless-steel bar-and-plate construction, vacuum-brazed joints for maximum fatigue resistance, epoxy-polyester powder-coat exterior for corrosion protection, each unit pressure-tested 10 bar for 60 seconds, flow-tested to ensure less than 0.1 bar pressure drop at rated oil flow.

Interchange part numbers:

PERKINS 2486A015, 2486A221, 4134W025, 4134W027; MASSEY FERGUSON 3638721M91; LANDINI 747602M91; reference numbers 84247638, 4832968, WG1104543.
