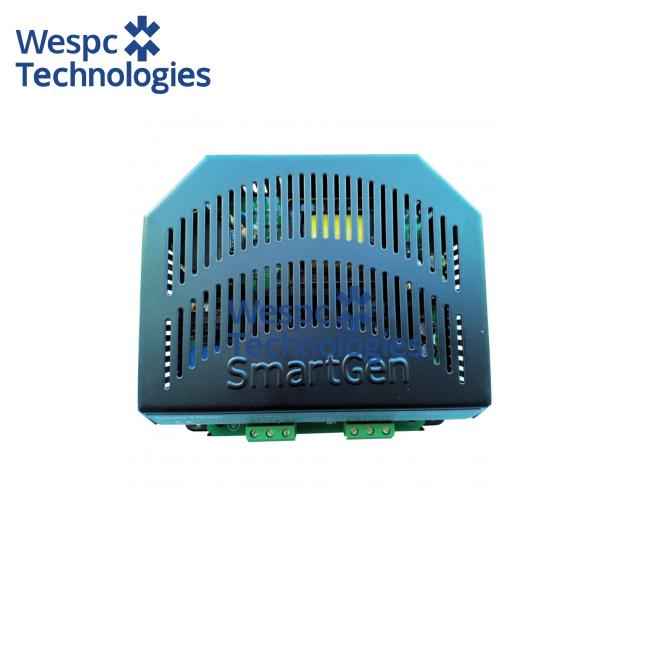

WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit

Technical Parameters:

Battery Voltage    12V
Max. Charging Current    10A
Rated Input Voltage    (100~240)V
Max. Input Voltage Range    (90~280)V
AC Input Frequency    (50/60)Hz
Max. Input Current    2.5A
No-Load Power Consumption    <3W
Operating Mode    Two segments
Maximum Efficiency    83%
Operating Temp.    (-30~+55)℃
Storage Temp.    (-40~+85)℃
Net Weight(kg)    0.8
Case Dimensions(mm)    145.5*131*55

Product Overview:

Fit with up-to-date power supply device, float charger BAC1210 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.

PERFORMANCE AND CHARACTERISTICS:

Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. Regard power lamp or charge lamp fast blinking as alarm.
Suitable for 12V storage battery and the rated current is 10A;
LED display: Power indication (Green light) and charging indication (Red light).
