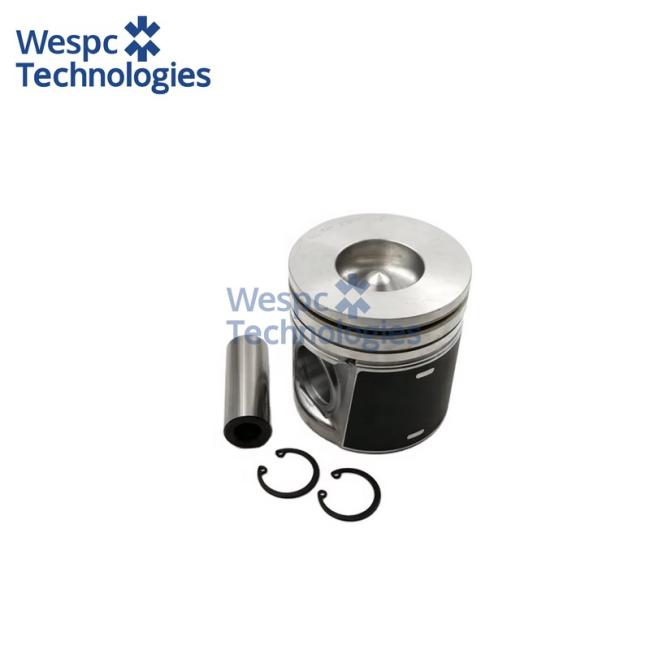

WESPC 3135M161 Piston Kit for Perkins 1006.6 1006.60 Diesel Engines

Application

WESPC 3135M161 piston kit is designed for Perkins 1006.6 and 1006.60 diesel engines, commonly used in agricultural tractors, construction machinery, and mid-to-large generator sets. This standard bore kit is intended for in-frame overhaul or top-end rebuilds, restoring OEM compression, oil control, and fuel efficiency. The eutectic aluminum piston with anodized crown and reinforced ring grooves ensures durability under sustained high-load operation and Tier 2 compliance.

Generator sets

Applied in Perkins-powered gensets from 100–200 kVA, especially those using 1006.6 engines in prime or standby duty. The 3135M161 kit provides precise combustion sealing, stable output, and reduced oil consumption, supporting long service intervals in continuous or intermittent operation.

Industrial systems

Used in Massey Ferguson tractors, loaders, and heavy-duty agricultural machinery operating in dusty, high-torque environments. The piston’s graphite-coated skirt reduces friction during break-in, while nitrided/chrome-faced rings maintain sealing integrity and resist wear over extended service life.

Technical specifications

Part number: 3135M161

Function: piston kit (includes piston, rings, pin, retainers)

Material: eutectic aluminum alloy piston with anodized crown; steel rings with nitrided top and chrome oil control

Compatible engines: Perkins 1006.6, 1006.60

Bore size: standard (100.00 mm)

Warranty: 12 months

Interchange part number

3135M161; verified fitment for Perkins 1006 series engines used in Massey Ferguson and industrial platforms
