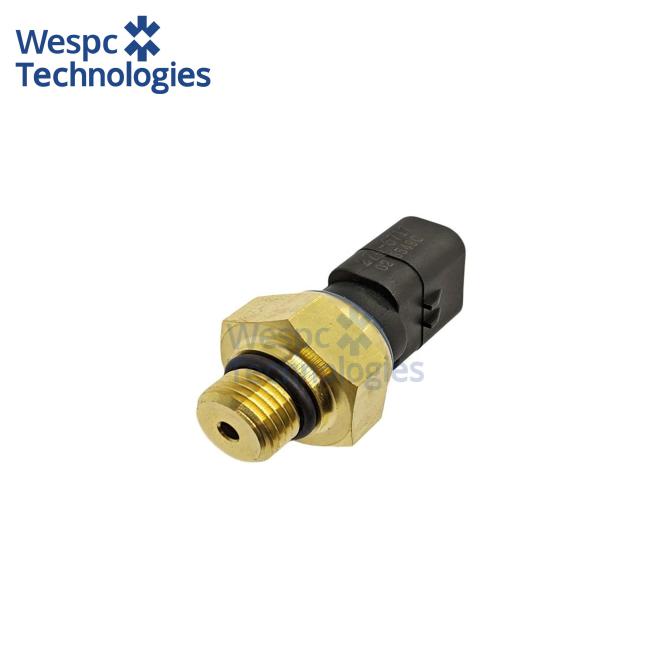

WESPC Air Pressure Sensor Kit KRP1693 For Perkins 1506 2206 2506 2806 Engine

Application:

Technical specifications:

Thread 7/16-20 UNF, hex 19 mm, overall body length 54 mm. The sensor employs a piezo-resistive silicon MEMS element measuring absolute pressure from 0 kPa to 400 kPa (0–58 psi), delivering a linear 0.5–4.5 V analogue signal referenced to a 5 V supply. Accuracy is ±1.5 % full scale across a media temperature span of –40 °C to 140 °C, response time <1 ms, and an integral temperature-compensation network eliminates drift caused by under-hood heat.

Material & performance features:

The sensor housing is precision-machined from corrosion-resistant aluminium alloy 6061-T6 and hard-anodised for additional protection against road salt and chemical contaminants. The sensing element is isolated from the media by a fluorosilicone diaphragm bonded with high-temperature epoxy, ensuring compatibility with turbocharged intake air, exhaust-gas recirculation and crankcase ventilation gases.

Interchange part numbers:

KRP1693, 274-6717, 320-3067, 5I7959, 9Y2294.
