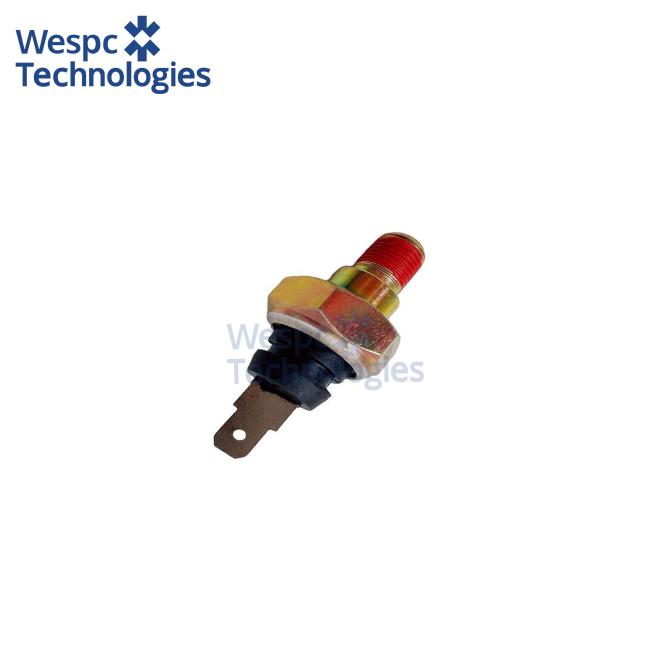

WESPC Pressure Sensor T2848062A For Perkins 1103-33 1103-33T 1104-44

Application:

Pressure Sensor T2848062A is engineered for the Perkins 1103-33, 1103-33T, 1104-44 and 1104-44T turbocharged diesel engines (3.3 L to 4.4 L). These engines are widely fitted to Massey Ferguson 2400/3400/5400 series agricultural tractors, MF 5700 SL orchard and vineyard tractors, mid-range combine harvesters, 50–120 kVA generator sets for prime or standby power, plus compact wheel loaders, skid-steer loaders and 7- to 14-ton hydraulic excavators used in construction, material handling and landscaping operations across global markets.

Technical specifications:

Thread interface 1/8-27 NPT with 19 mm hex and 12 mm probe reach for direct mounting into the engine block oil gallery. Operating pressure range 0–10 bar (0–145 psi), with a linear voltage output 0.5–4.5 Vdc across the full scale, supply voltage 5 ± 0.25 Vdc, accuracy ±1.5 % F.S.

Material & performance features:

Housing is turned from brass alloy and nickel-plated for complete immunity to engine oil, diesel fuel and road salt; the sensing element is a laser-welded 1.4571 (AISI 316Ti) stainless-steel diaphragm with thin-film strain gauges for excellent long-term stability.

Interchange part numbers:

T2848062A, 10000-28480, 4224841M1, 4222208M1, 2755A019
