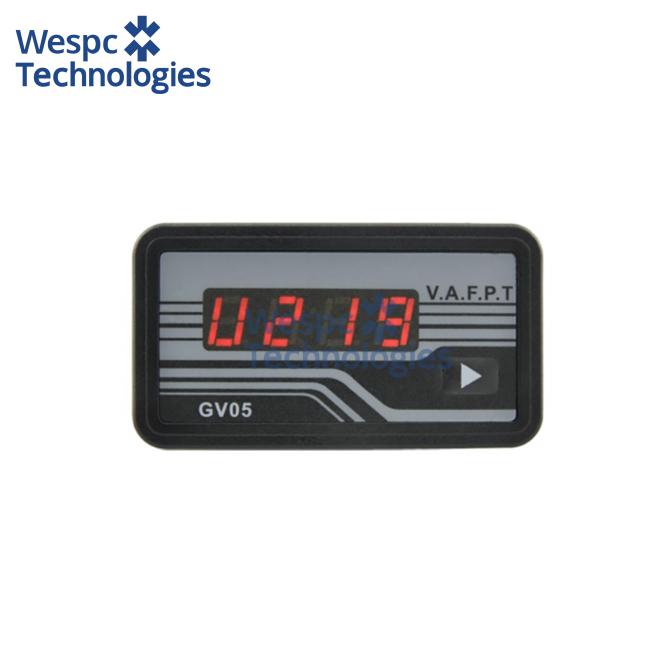

WESPC Original GV05 Digital Generator Meter Voltage Frequency Power Monitoring

Summary

GV05 is one light and low price-orientated module used for checking and demonstrating voltage, current,power,frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.

Features

  Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;

  Results shown by 4-position digital LED tube

  Self-recycling of parameters

  With Page Turning Buttons

  Extra working power is not needed

Parameter demonstration

  Phase voltage

  Current

  Power

  Frequency

  Run time

  Accumulating time

Range and accuracy

  AC voltage:Phase voltage AC165-260V,Line voltage AC300-450V；Deviation≦±1%

  Current: 0～30A/0～50A/0～90A,deviation≦±2%

  Power:0~6Kw/0-10Kw/0-18Kw,deviation≦±2%

  Frequency:45-70HZ,deviation≦±0.5%

  Accumulated time:0-9999hours (min:0.1hours),deviation≦±1%.
