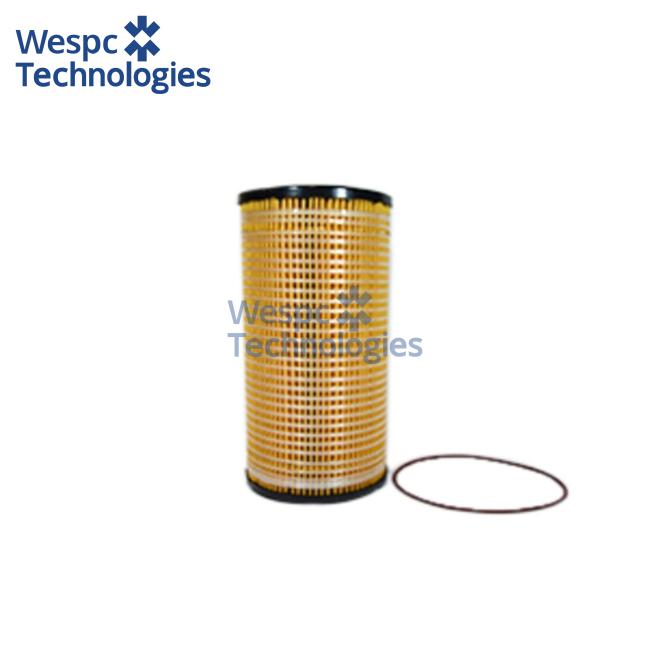

Application Fuel Filter 10000-59651 is designed for inline diesel filtration in 1104 series engines used in generator sets, agricultural tractors and industrial machinery. It ensures consistent fuel purity for mechanical and electronic injection systems, supporting engine performance and protecting critical components from particulate contamination.

Technical specifications Height 165 mm, diameter 90 mm, weight 0.234 kg. Filtration efficiency up to 99%. Thread size 1-14 UNS. Flow direction outside-in. Designed for spin-on installation with integrated sealing gasket. Compatible with standard filter heads used in mid-range diesel platforms.

Material & performance features Constructed with multi-layer cellulose media and epoxy-coated steel shell. The sealing interface ensures leak-free operation under thermal cycling. The pleated structure maximizes dirt-holding capacity and supports extended service intervals in high-load environments.

Interchange part numbers 10000-59651, 934-181, 1R-1804, FS20009, 32/925423
