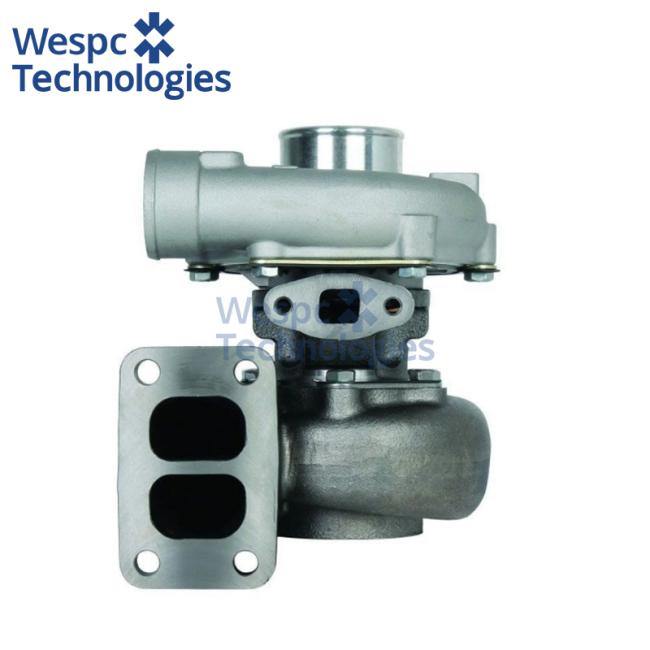

WESPC 2674A397 Turbocharger for Perkins 4 236 C Engine Ta3107 Marine Industry
Price:
U$167-189(1pcs)
MOQ:
1
Delivery Time:
5-8 work days
Brand:
WESPC
Product Description
WESPC 2674A397 Turbocharger for Perkins 4 236 C Engine Ta3107 Marine Industry
| Brand Name | WESPC |
| Product Name | Turbocharger |
| Part Number | 2674A397 |
| Material | Metal |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 year |
| Stock | Yes |
Application
The WESPC 2674A397 turbocharger is built for Perkins 4.236 and 4.236T 4.0 L naturally-aspirated/turbo diesels and the equivalent CAT 426B, 426C, 428, 428B back-hoe loaders.These engines are widely used in 60–120 kVA generator sets (FG Wilson P44-5 → P66-5), Massey-Ferguson 300-series tractors, Claas combine belt drives and 4.0 L industrial pumps—one turbo covers agricultural, construction and power-generation fleets worldwide.
The WESPC 2674A397 turbocharger is built for Perkins 4.236 and 4.236T 4.0 L naturally-aspirated/turbo diesels and the equivalent CAT 426B, 426C, 428, 428B back-hoe loaders.These engines are widely used in 60–120 kVA generator sets (FG Wilson P44-5 → P66-5), Massey-Ferguson 300-series tractors, Claas combine belt drives and 4.0 L industrial pumps—one turbo covers agricultural, construction and power-generation fleets worldwide.
Technical specifications
Garrett TA3107 frame; compressor wheel OD 56 mm, turbine wheel OD 49 mm; total length 320 mm, body diameter 220 mm, weight 10 kg;oil inlet M14 × 1.5, oil drain 2 × M8 on 42 mm PCD; water connections 2 × M10; maximum continuous boost 2.2 bar, peak turbo speed 165 000 rpm, exhaust gas temperature limit 750 °C.
Material & performance features
Turbine housing cast from Ni-Resist ductile iron for 750 °C fatigue strength; compressor wheel milled from 7075-T6 aluminium,hard-anodised to 50 HV for salt-spray resistance; shaft is 42CrMo vacuum-nitrided to 900 HV, running on brass floating-bush bearings with 0.12 mm oil film for >8 000 h service before rebuild; water-cooled centre housing eliminates oil coking during hot-shutdown, keeping oil temperature <120 °C at 45 °C ambient; every unit is spin-balanced to <0.5 g-mm, giving <72 dB(A) noise and zero shaft vibration throughout the 1 400–2 200 rpm engine speed range.
Interchange part numbers
2674397, 465778-5017, 465778-5017S, 7C3446, TA3107.
