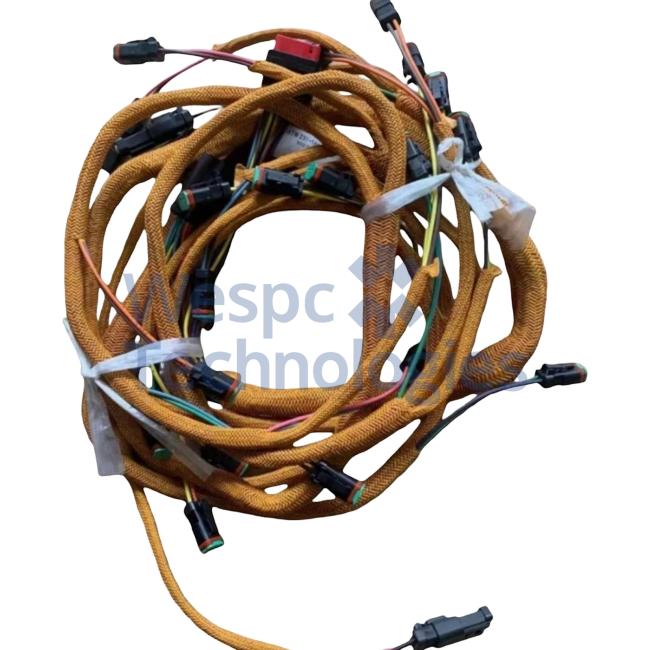

WESPC Wiring Harness 231-1664 For Cater E365C 365C 365CL 365CLMH Excavators
Price:
$180-$200(1 Piece)
MOQ:
10
Delivery Time:
5-10 work days
Brand:
WESPC
Product Description
WESPC Wiring Harness 231-1664 for Cater E365C 365C 365CL 365CLMH Excavators
Premium replacement wiring harness engineered specifically for Cater excavator main control valve systems, ensuring reliable electrical connectivity and precise hydraulic control.
| Brand Name | WESPC |
|---|---|
| Place of Origin | China |
| Part Number | 231-1664 |
| After-sales Service | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application
The 231-1664 wiring harness serves as a main control valve (distribution valve) wiring harness specifically designed for Cater E365C, 365C, 365CL, and 365CLMH hydraulic excavators. This critical electrical component transmits signals between the excavator's electronic control module (ECM) and the main hydraulic control valve assembly, enabling precise control of hydraulic spool actuation, pressure sensors, and flow control solenoids.
The harness functions as the primary electrical interface for the distribution valve system, managing hydraulic operations including boom, arm, bucket, and swing functions in heavy-duty construction and mining applications. This component is essential for maintaining hydraulic system responsiveness, operational safety, and precise machine control in excavators operating under high-load, continuous-duty cycles.
Technical Specifications
- Part Numbers: 231-1664, 2311664, CA2311664
- Harness Type: Main control valve wiring harness (HARNESS WIRE AS-VALVE)
- Compatible Models: Cater E365C, 365C, 365CL, 365CLMH excavators
- Operating Voltage: 24V DC (standard Cater excavator electrical system)
- Operating Temperature: -30°C to +80°C continuous service
- Protection Rating: IP67 minimum for dust and moisture resistance
- Connector Types: Sealed Deutsch and AMP connectors with gold-plated pins
- Wire Gauge Range: 18 AWG to 14 AWG depending on circuit amperage requirements
- Physical Dimensions: Approximately 150 cm × 30 cm × 15 cm (varies by routing configuration)
- Weight: 3.0-5.0 kg depending on cable length and configuration
- Cable Construction: Multi-conductor assembly with braided loom protection
Material & Performance Features
Manufactured from high-grade automotive-specification copper conductors with advanced cross-linked polyethylene (XLPE) or thermoplastic elastomer (TPE) insulation rated for 105°C continuous operation. The harness features premium-grade abrasion-resistant braided loom and rubber grommets at all flex points, preventing chafing and wire damage during hydraulic valve operation and machine articulation. Each conductor is color-coded per Cater specifications ensuring accurate installation and troubleshooting.
Interchange Part Numbers
- Primary References: Cater 231-1664, 2311664
- Alternative Designation: CA2311664 (manufacturer-specific coding)
- Excavator Application: E365C, 365C, 365CL, 365CLMH
- System Compatibility: Main control valve (distribution valve) electrical system
- Related Harnesses: 231-1811 (control valve harness), 231-1812 (engine power harness), 231-1881 (distribution valve harness for E385C)
