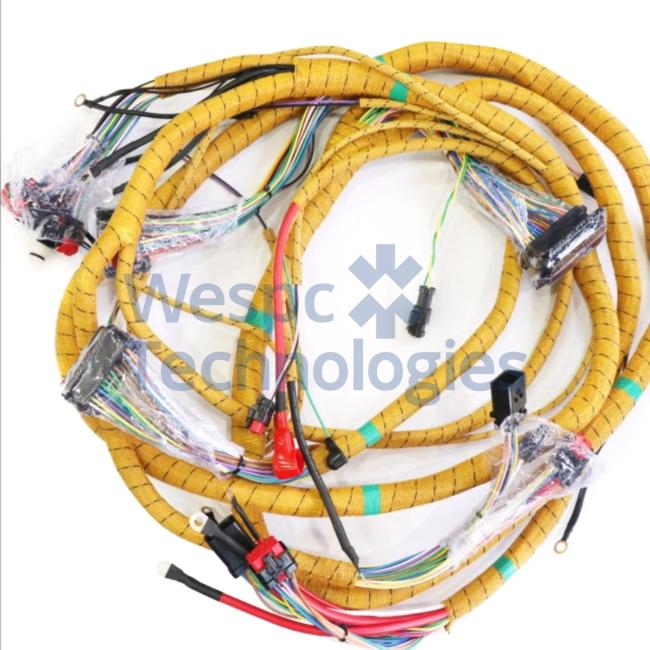

WESPC Wiring Harness 275-6733 For Cat 385C series hydraulic excavators
Price:
$180-$200(1 Piece)
MOQ:
10
Delivery Time:
5-10 work days
Brand:
WESPC
Product Description
WESPC Wiring Harness 275-6733 For Cat 385C Series Hydraulic Excavators
| Brand Name | WESPC |
| Place of Origin | China |
| Part Number | 275-6733 |
| After-sales Service | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application
The 275-6733 Wiring Harness is a critical chassis/main wiring harness specifically engineered for Cat 385C series hydraulic excavators. This harness serves as the primary external electrical backbone connecting the operator cab to the main frame and chassis systems, facilitating comprehensive power distribution and signal transmission between critical machine components.
- Compatible with Cat 385C family including standard 385C, 385C FS (Front Shovel), 385C L (Long Boom), and 385C L MH (Material Handler) configurations
- Designed for machines powered by Cat C18 ATAAC diesel engine
- Supports electrical infrastructure for main hydraulic control systems, chassis-mounted sensors, travel motors, swing mechanisms, and safety interlock systems
- Routes through machine's frame structure to connect cab-mounted controls with external chassis components
- Essential for earthmoving, mining, and material handling applications
- Supports 385C L Mobile Hydraulic Power Unit configuration
Technical Specifications
- Harness Type: External Chassis/Main Wiring Harness (Harness AS-Chassis)
- Compatible Equipment: Cat 385C, 385C FS, 385C L, 385C L MH hydraulic excavators
- Engine Compatibility: Cat C18 ATAAC diesel engine
- Voltage Rating: 24V DC heavy-duty construction equipment electrical systems
- Connector Systems: Multi-pin configurations utilizing Deutsch, JAE, Hirose, Molex, and AMP terminal technologies
- Conductor Material: High-purity oxygen-free copper with tin plating certification
- Cable Certifications: UL, VDE, CE, SAA, CB, RoHS, ISO9001 compliant materials
- Insulation Materials: Multi-layer construction with rubber, silicone, polyethylene, and PTFE compounds
- Protection Rating: IP67-rated sealed connectors against dust and moisture
- Temperature Performance: Engineered for extreme temperature differentials
- Electrical Testing: 100% electrical continuity testing and power performance verification
- Customization: Available for cable colors, lengths, and connector configurations
Material & Performance Features
This wiring harness is manufactured using premium-grade cable materials certified to international standards including UL, CE, VDE, SAA, CB, RoHS, and ISO9001. The construction ensures exceptional electrical safety and environmental compliance.
- High-purity oxygen-free copper conductors with precision tin plating for superior conductivity
- Excellent corrosion resistance in harsh operating environments
- High-impact resistant engineering polymers for connector housings
- Precision-molded seals and grommets to prevent moisture and dust ingress
- RoHS compliant materials eliminating hazardous substances
- Durable construction resistant to hydraulic fluids, diesel spillage, abrasion, and weather elements
Interchange Part Numbers
275-6733; 2756733; 275-6733HE01; CA275-6733
