China Four Cylinder Plywood Bending Machine 100T Cold Press Machine For Plywood for sale

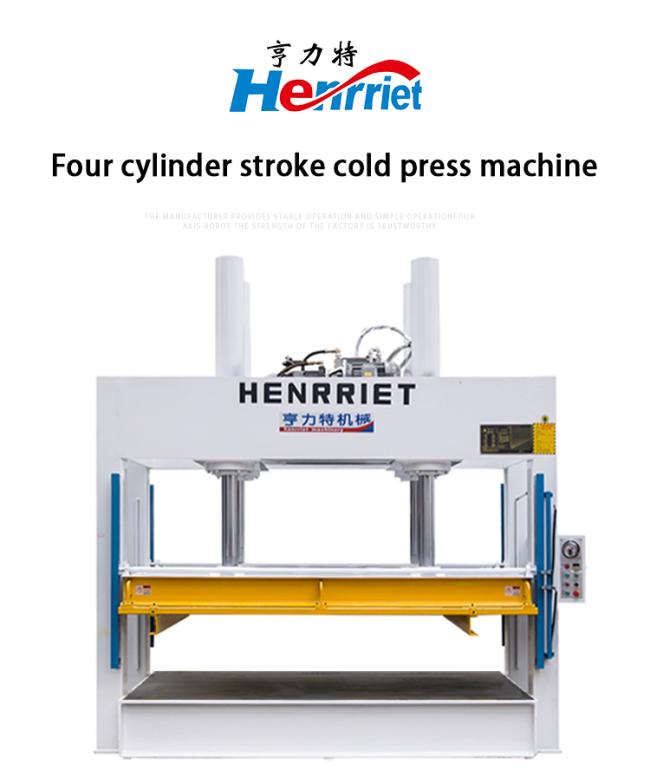

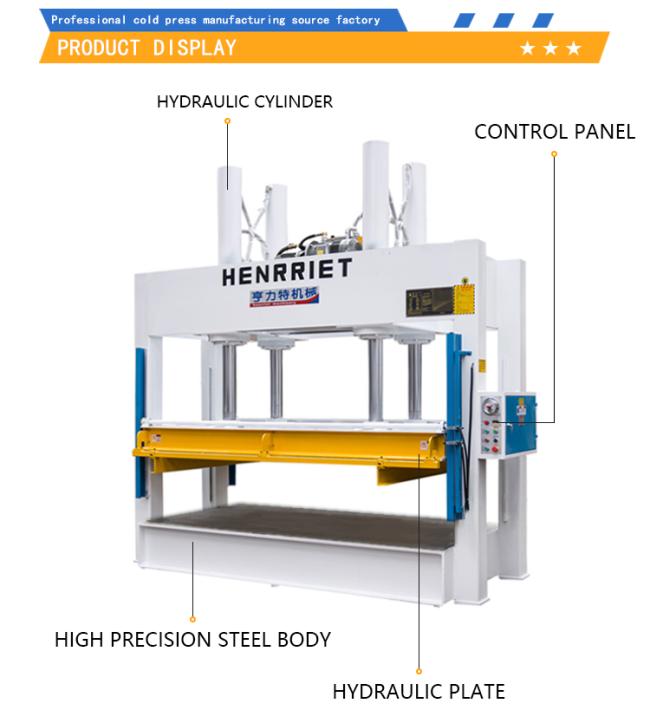

Four Cylinder Plywood Bending Machine 100T Cold Press Machine For Plywood

Name: Four Cylinder Plywood Bending Machine 100T Cold Press Machine For Plywood
Brand: Foshan Henglihao Machinery Co., Ltd.

Price Negotiable

Price: Online/offline communication

MOQ: 1

Delivery Time: 10-15Work days

Brand: Henrriet

Product Description

Four Cylinder Stamping Cold Press Machine Suitable For Furniture Production Plywood Bending And Shaping

Product Description:

This hydraulic cold press machine specializes in bending and shaping solid wood and composite panels through controlled pressure, enabling the production of high-precision, crack-free curved components. It is widely used in high-end furniture manufacturing (e.g., curved wooden chairs, decorative door panels) and architectural decoration (e.g., curved partitions), significantly enhancing product aesthetics, structural integrity, and production yield. By combining advanced hydraulic control with adaptable tooling, the machine meets the demands of diverse wood-forming applications while ensuring repeatability and minimal material waste.

Enhanced Production Capacity

The machine incorporates a multi-cylinder synchronous hydraulic system that delivers exceptionally stable pressure output, maintaining minimal deviation across the entire workpiece. This ensures uniform force distribution during the bending of thick solid wood or multi-layer composite panels, effectively mitigating common defects such as spring-back or fracture.

Featuring a programmable stroke length, the press adapts to components of varying heights and curvature requirements without frequent mold changes. The process—from feeding and positioning to pressing, shaping, and pressure release—is fully automated via a CNC system supported by servo-driven positioning, enabling flexible production with minimal manual intervention.

Intelligent Safety and Protection

The machine’s frame is built with integral steel plate welding and multi-rib reinforcement, providing superior load-bearing rigidity and resistance to deformation under long-term high-load operations. This structural integrity ensures consistent performance and prolonged service life.

Compliant with international safety standards, the press includes overload protection, emergency braking, and interlocked guarding systems. Real-time sensors monitor pressure and alignment, triggering automatic shutdowns in abnormal conditions to safeguard both operators and equipment.

Versatile Application Scope

Ideal for producing curved table legs, sofa frames, and custom wardrobe components. The machine’s uniform pressure distribution prevents deformation or cracking, even in dense hardwoods, ensuring structural stability and refined aesthetics.

Suitable for arched door panels, curved partitions, and ceiling keels. Its adjustable parameters accommodate diverse materials and designs, resulting in smooth, natural curves that meet architectural specifications.

Streamlined Maintenance and Care

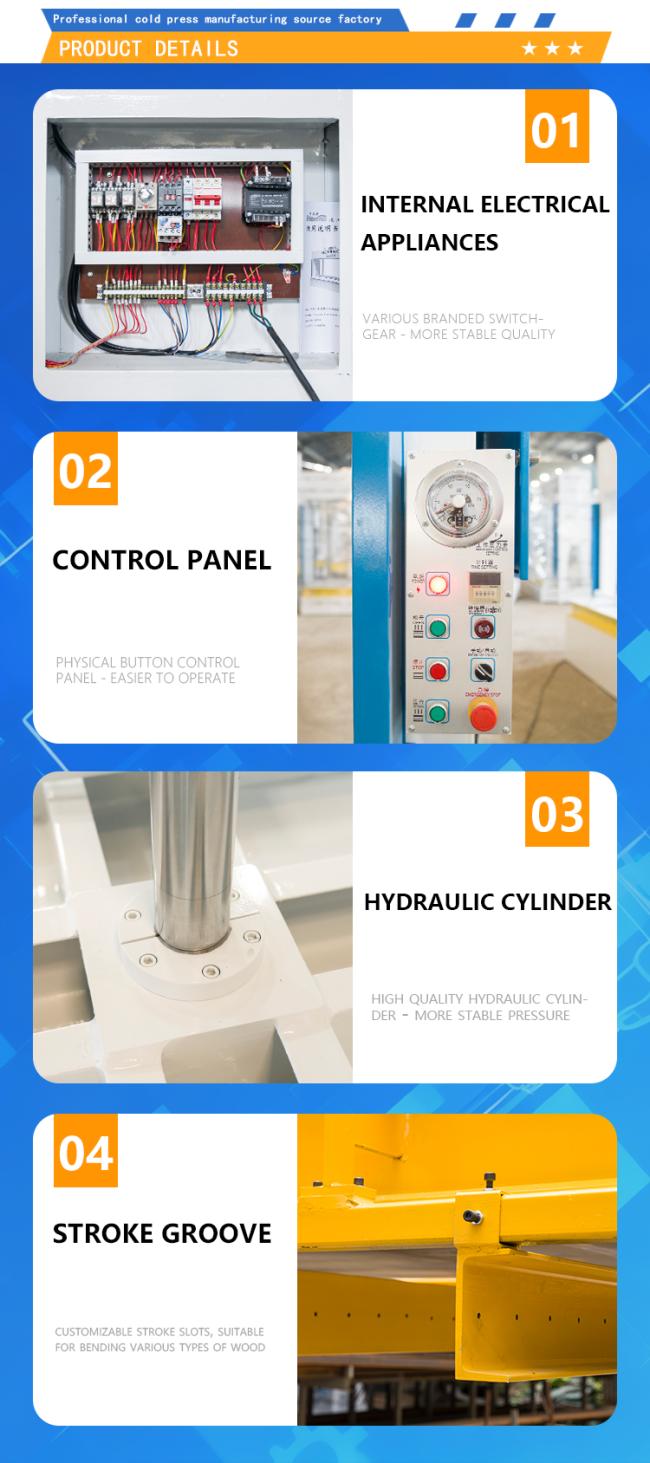

Core components, such as sensors and hydraulic valves, feature standardized interfaces and modular assemblies, allowing quick diagnosis and replacement. An integrated monitoring system tracks equipment health in real time, providing early warnings for issues like seal wear or pressure deviations.

Machine parameters

Max pressuer	100T
Work platen size	3000*1500mm
Oil cylinder specification	125*4pcs
Motor power	7.5KW
Workd effctively	1300mm
Overall dimensions	260012004090mm
Weight	2000KG

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours.

Free video training for operators and provision of process guidance manuals.

Lifetime technical support and software upgrade services.
