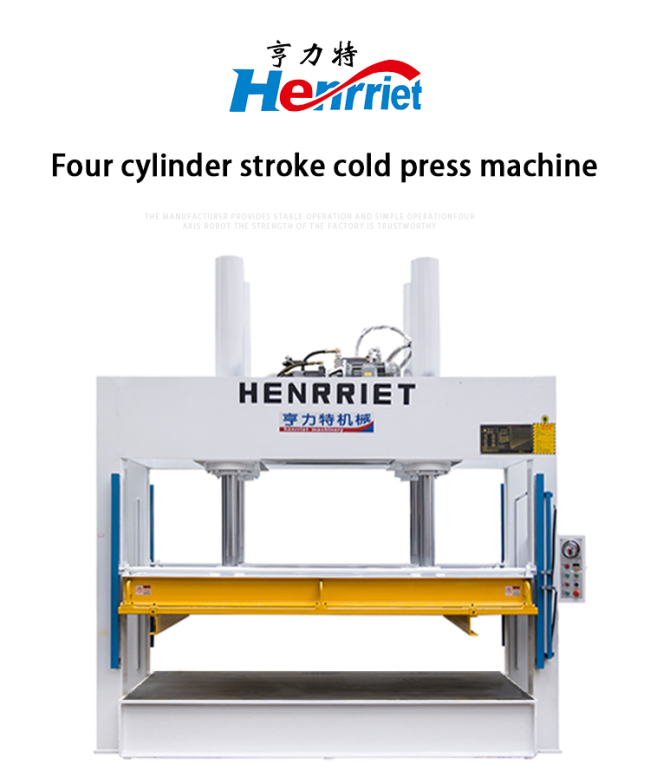

Uniform Pressure Distribution: 100 Ton Square Stroke Press Ensures Flawless Bonding for Aluminum Composite Boards
Uniform Pressure Distribution: 100 Ton Square Stroke Press Ensures Flawless Bonding for Aluminum Composite Boards
Description
Choosing the right four cylinder square stroke cold press machine can reduce rework, save labor, increase production capacity, and make more money in aluminum sheet production! Henglite four cylinder square stroke cold press machine is specially designed for the production of metal decorative panels such as aluminum honeycomb panels, aluminum veneers, aluminum-plastic panels, etc. The four core advantages help your factory reduce costs and increase efficiency, and seize the opportunity in the construction decoration market.
Feature
1,Superior production capacity
Four cylinder collaborative release scale efficiency: equipped with a four cylinder array drive system and a 7.5kW high-efficiency motor, the four cylinders apply pressure synchronously to ensure that the pressure is evenly distributed in geometric progression to every corner of the board. For the 2-4 hour long-term pressure holding and curing of aluminum honeycomb panels, the automatic pressure holding device monitors oil pressure fluctuations in real time to completely eliminate core delamination caused by pressure attenuation.
2,Integrated Safety and Protection
Intelligent protection construction operation defense line: Over limit automatic protector - when the pressure plate lifting exceeds the travel range, the power source is instantly cut off. Emergency brake button - there are 3 red emergency stops on both sides of the operation surface and the machine body to ensure zero delay in emergency response.
3,Wide-Ranging Application Versatility
Full scene adaptation of aluminum panels: widely used in scenarios such as aluminum honeycomb curtain wall panels, perforated aluminum panel decorative surfaces, aluminum-plastic panel composite layers, and aluminum veneer reinforcement and compression. The square stroke design ensures that the pressure plate maintains millimeter level parallel accuracy throughout the entire stroke, ensuring that the edges of large-sized aluminum plates are free of warping and the surface is free of indentation, perfectly adapting to high-end curtain wall projects such as airports, high-speed railway stations, and commercial complexes.
4,Easy maintenance and technical support
The hydraulic system adopts an integrated valve group layout, with centralized control of the oil circuit board, making the fault points clear at a glance. The surface of the four column guide is treated with hard chrome plating, which extends the wear resistance and service life. The main circuit adopts international brand electrical components, with a high market share of accessories, and replacement does not require waiting from the original factory.
Specification
|
Max pressuer |
100T |
|
Work platen size |
1300*900mm |
| Pressure plate opening distance | 1300mm |
| Oil cylinder specifications | 125mm * 4pcs |
| Power | 7.5kw |
| Overall dimensions (Standard Model) | 2600*1200*4090mm |
| Weight (Standard model-about) | 2000kg |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Service Support
- Warranty: 1 year
- Packaging: Film with foam
- 24-hour customer service hotline, respond to repair needs within 48 hours.
- Free video training for operators and provision of process guidance manuals.
- Lifetime technical support and software upgrade services.
Scope of Application

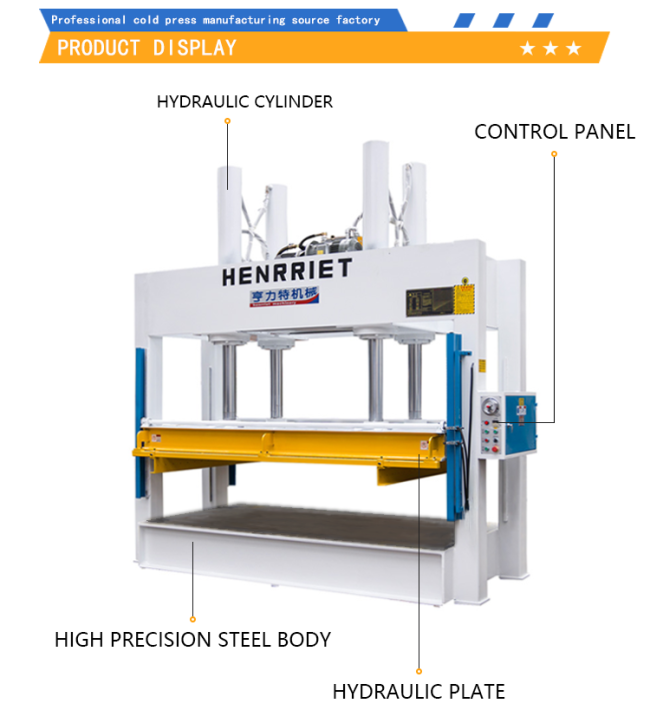

Product Display

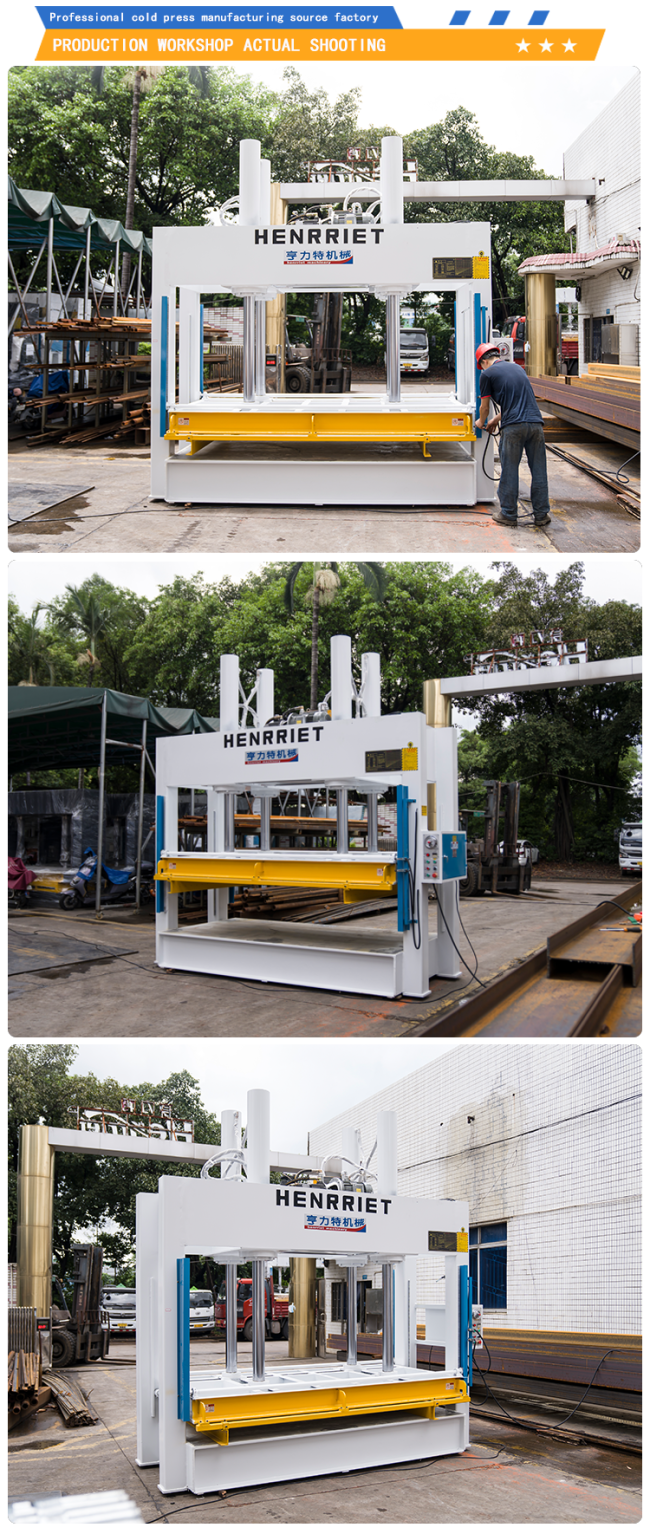

Production Workshop On-Site Photography

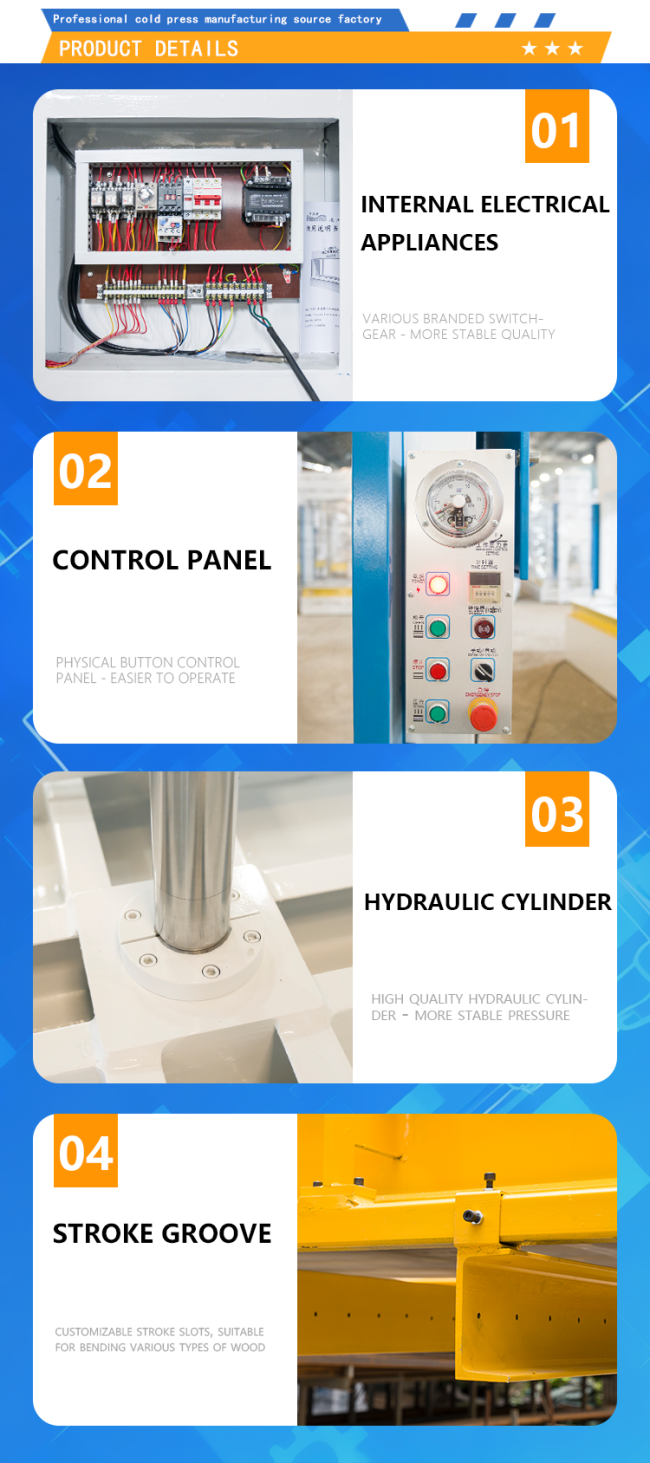

Product details
Company Introduction
Corporate Advantages
Visitors and Communication
Production level and manufacturing process
Exhibition and Exchange
Packaging and Logistics
Certificates and Honors
