Customize 60T Cold Press for Whole-House Customization Building Materials Plywood Wood Doors
Customize 60T Cold Press for Whole-House Customization Building Materials Plywood Wood Doors
Description

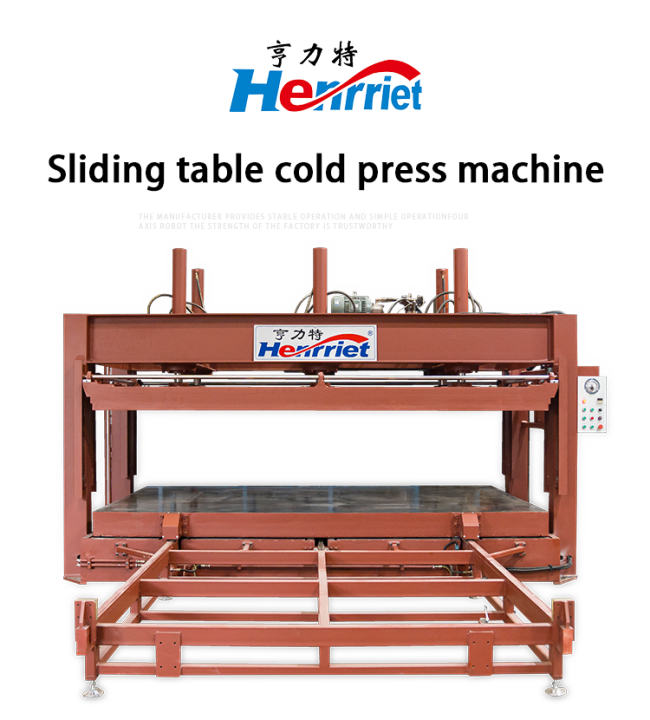

The slide table cold press machine is an innovative hydraulic equipment designed specifically for high-efficiency and low labor intensity sheet pressing needs. Its core structure consists of a hydraulic system, a high-strength body, a precision pressure plate, an electrical control system, and a unique sliding worktable. The significant feature of the equipment is that its worktable adopts a sliding table or roller type design. The sliding table can move forward and backward according to operational needs, and the operator can easily complete the laying and positioning of the board on the ground without climbing or leaning into the depths of the press.
Feature
1,Superior production capacity
The slide table tray of this machine automatically slides the board in and out, and the loading and unloading are completed in parallel outside the pressing area, improving the overall efficiency of the equipment. The design of automatic sliding table feeding and unloading completely overturns the inefficient mode of manual lifting and alignment of traditional cold press machines, especially for heavy boards such as 2 large format wooden doors, stainless steel honeycomb panels, and whole plywood. The loading and unloading time is shortened, labor costs are reduced, and the physical labor intensity of workers is greatly reduced, reducing labor risks.
2,Integrated Safety and Protection
No matter what state the equipment is in, once the emergency stop button is pressed, all power sources will be cut off and all dangerous actions will immediately stop, providing the most direct and reliable means to deal with emergencies.
Equipped with an over limit automatic protector, when the moving parts of the equipment exceed the preset safe travel range, the protection mechanism will be automatically triggered to prevent accidents from occurring.
3,Wide-Ranging Application Versatility
The slide table cold press machine has a wide range of applications in furniture manufacturing, building decoration, and new building materials processing due to its flexible slide table design, uniform pressure distribution, and wide applicability. In terms of basic board processing, the equipment is suitable for multi-layer lamination of plywood, with uniform pressure to ensure firm adhesion without delamination. It is also suitable for surface lamination of particle board and fiberboard, meeting the diverse needs of furniture manufacturing enterprises for basic boards. In the field of whole house customization, equipment can be used for the compression production of whole house customized panels, including the lamination and assembly of various cabinet panels such as wardrobe panels, cabinet panels, bookshelf panels, etc. The slide table design makes it easier and more convenient to load and unload large format cabinet panels. In the manufacturing of metal composite panels, the equipment is suitable for the compression molding of aluminum honeycomb panels and stainless steel honeycomb panels. Through uniform pressure, the honeycomb core material is firmly bonded to the panel, producing lightweight and high-strength curtain wall panels that meet the strict requirements of modern building exterior wall decoration materials. In terms of door manufacturing, the equipment is suitable for large-scale pressing production of various wooden doors, ensuring that the surface of the door leaf is free of bubbles and glue peeling. In the field of multi-layer lamination, equipment can be used for leveling and bonding the base layer of multi-layer composite boards, providing high-quality board blanks for subsequent processing. In addition, the equipment can also be used for surface thin film bonding and forming of various building decoration materials such as hollow door panels and honeycomb panels, and is an indispensable core equipment in the field of modern building materials processing.
4,Easy maintenance and technical support
According to the oil contamination situation and usage time, replace the hydraulic oil and replace the oil suction and return filter elements at the same time. This is the core maintenance project to ensure the long-term stable operation of the hydraulic system and prevent wear and tear of precision valve components. Check the sealing components of the main oil cylinder and each valve group, and replace them preventively if there are signs of aging or leakage. Check the wear of the slide table and slider guide rail, and replace or repair them if necessary to restore motion accuracy.
Specification
|
Maximum pressure |
60t |
| Pressure plate size | 3600mm*2200mm |
| Maximum processing length | 3600mm |
| Maximum processing width | 2200mm |
| Maximum processing thickness |
800mm |
| Lower workbench height | 300mm |
| Oil cylinder specifications | 6pcs(70mm*100mm) |
| Power | 5.5KW |
| Overall dimensions | 4100mm*2500mm*2900mm |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Service Support
- Warranty: 1 year
- Packaging: Film with foam
- 24-hour customer service hotline, respond to repair needs within 48 hours.
- Free video training for operators and provision of process guidance manuals.
- Lifetime technical support and software upgrade services.
Scope of Application

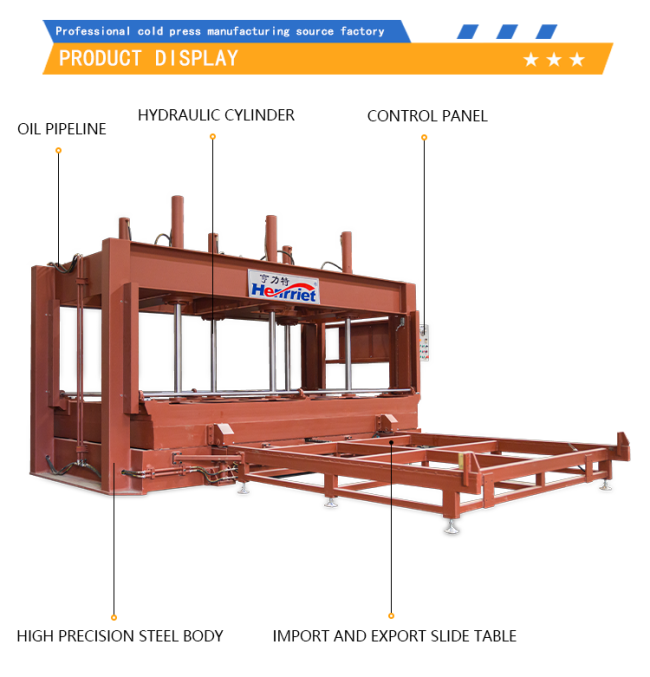

Product Display

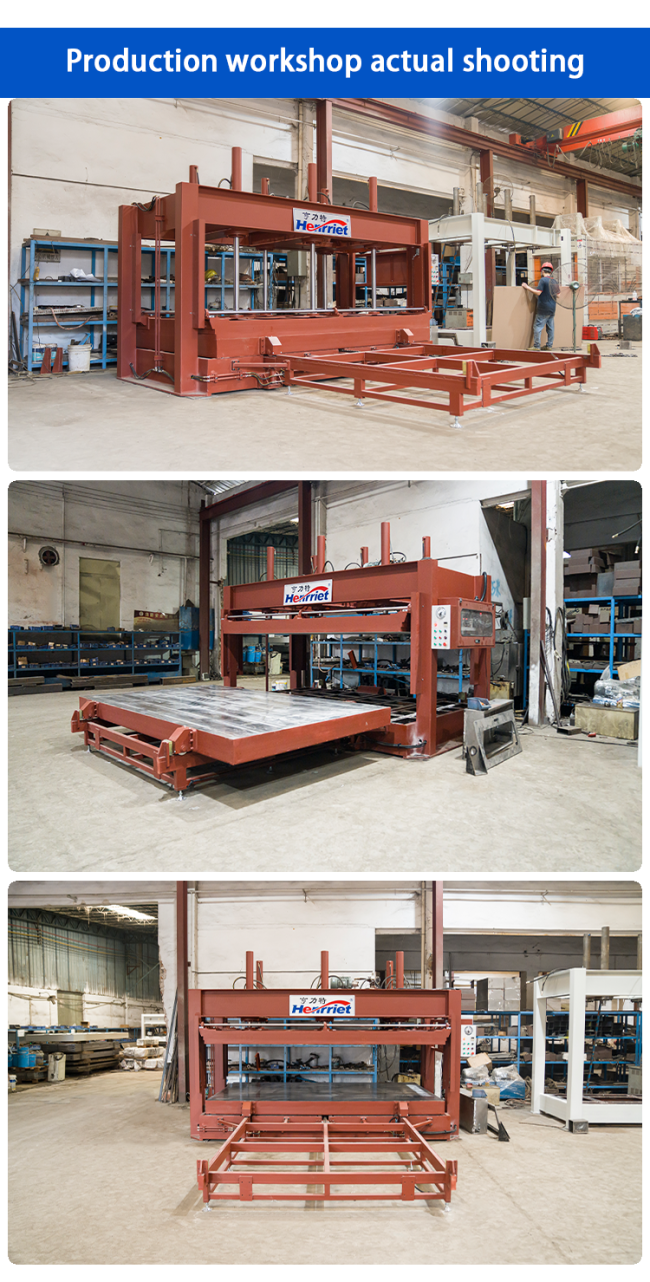

Photos taken in the production workshop

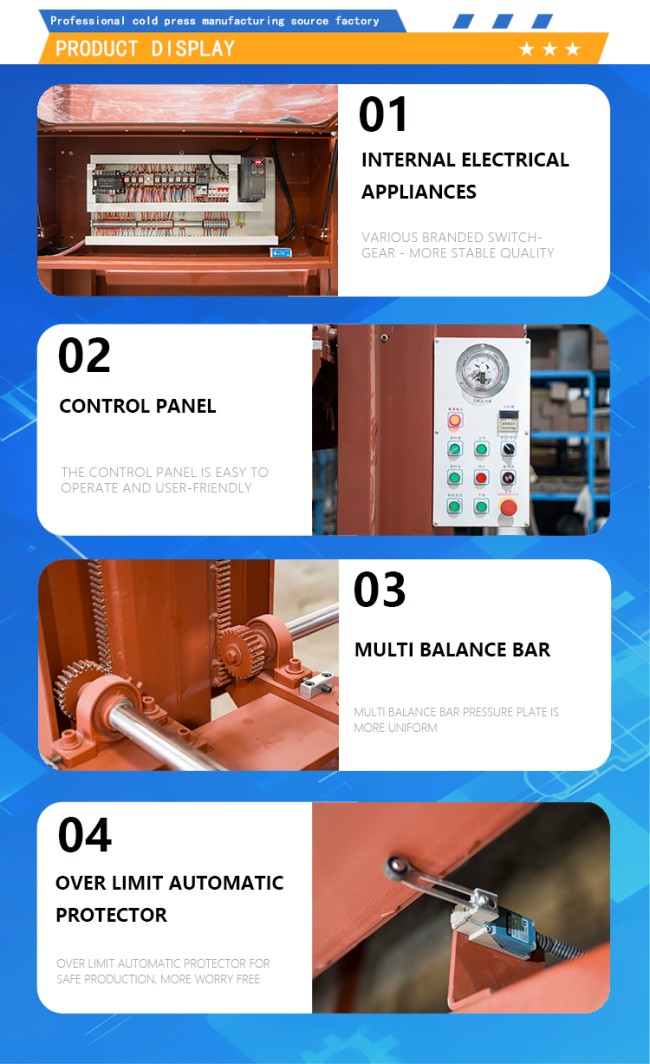

Product details
Company Introduction
Corporate Advantages
Visitors and Communication
Production level and manufacturing process
Exhibition and Exchange
Packaging and Logistics
Certificates and Honors
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
