Automatic Panel Turner for 3200×700mm Sheets with 180° Rotary Flipping at 3-4 Cycles Per Minute
Price:
Online/offline communication
MOQ:
1
Delivery Time:
30-35Work days
Brand:
Henrriet
Product Description
Cylindrical Panel Turner for Large Stainless Steel Sheets | Auto Flipping Equipment for Double-sided Metal Panel Processing
The cylindrical 180° automatic panel turner features an annular cylindrical frame structure with rigid and stable construction. Equipped with rubber-coated roller conveying mechanism, it completes 180° rotary flipping of panels. The machine integrates two independent drive motors for flipping motion and sheet conveying, enabling continuous operation of feeding, positioning, flipping and discharging.
Key Features
Superior Production Capacity
This machine facilitates an automated, continuous workflow for flipping sheets, serving as an upgraded alternative to manual reversing. By synchronizing the rotating and conveying systems, it guarantees steady, uninterrupted operations and minimizes downtime caused by manual processing. The roller conveying system ensures accurate placement of panels during transfer, facilitating smooth coordination with upstream and downstream equipment.
Security Guarantee
The enclosed, ring-shaped frame restricts operators from accessing the active flipping zone. Utilizing zone-based motion control, the flipping mechanism and roller conveyor are powered by independent motors with interlocking protocols to avoid mechanical interference. The rubber-coated rollers minimize the chances of sheets slipping or sustaining damage during transit.
Application Areas
Engineered to handle a variety of composite panels and large rigid sheets, including magnesium oxide fireproof boards, oversized stone slabs, large stainless steel sheets, rock wool insulation panels, aluminum honeycomb boards, and MDF. Highly applicable in dual-sided processing tasks such as bonding, pressing, polishing, and quality inspection.
Maintenance and Upkeep
The equipment relies on a modular transmission layout, allowing components like drive motors, roller assemblies, and rotary supports to be dismantled and inspected independently. The rubber-coated rollers are designed as replaceable consumables. Regular lubrication is streamlined via predefined ports on the transmission points.
Technical Specifications
| Device dimensions | Width 1500mm, Length 3200mm, Height 1600mm |
| Effective width of roller surface | 800mm (±50) |
| Working height | 900mm |
| Flip drive motor power | 2.2KW |
| Roller drive motor power | 1.5KW |
| Equipment efficiency | 3-4 cycles per minute |
| Applicable maximum sheet specifications | 3200×700mm |
| Minimum applicable board specifications | 500×500mm |
| Equipment weight | 1.3T |
| Equipment load capacity | 0-200KG (Efficiency decreases with heavier load) |
| Rubber roller diameter | 54mm |
| Roller spacing | 180mm |
| Distance between upper and lower roller vertices | 100mm |
Company Advantages
Two In-House Factories
Better prices and faster delivery with no middlemen or markups
Custom-Built Solutions
30+ senior engineers design machines around your production needs, floor space, and budget
Global Certification
CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations
Proven Experience
Shipped to 50+ countries with 1000+ projects, engineered for long-term heavy-duty use
Service Support
Warranty
1 year
Packaging
Film with foam
Customer Support
24-hour customer service hotline with 48-hour response to repair needs
Training
Free video training for operators and process guidance manuals
Technical Support
Lifetime technical support and software upgrade services

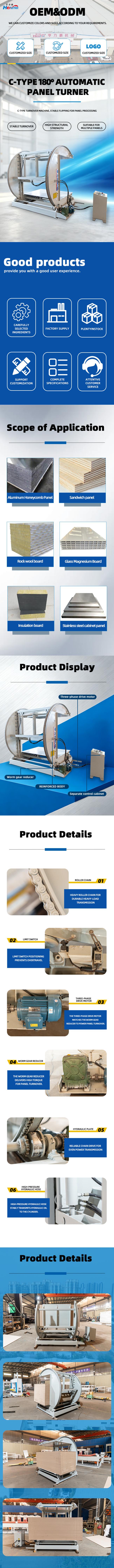

Product Image
Company Profile
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2016, with over 110 employees. Our market distribution includes Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%).
Why should you buy from us instead of other suppliers?
With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include a senior design team of 30+ engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training to ensure immediate production readiness.
How do we guarantee quality?
Our quality assurance process includes: confirming machine functions through customer communication, engineer-designed machine drawings, on-site guidance for cutting/welding/assembly operations, full process testing by quality inspectors, and final inspection by engineers and project leaders before shipment.
What products can you buy from us?
We offer hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and various non-standard automated production lines.
What services do we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Types: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
