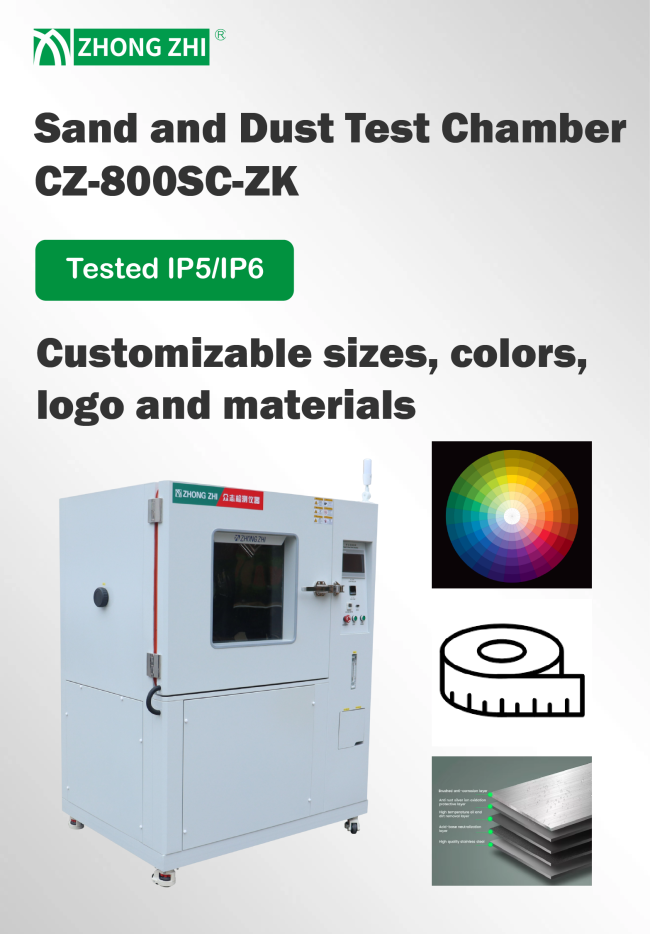

CZ-800SC-ZK IEC 60068 IP6K IP5K Defense-grade Drop Resistant Dustproof Test Tester Equipment
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Products Description
Product Introduction
The equipment is used to determine the degree of protection of the product against the intrusion of fine dust; this machine is strictly manufactured in accordance with the protection level test IP5IP6 in EC 60529:2001 and the La2 regulations in IEC 60068-2-68:1994. This test is a test to check the sealing. The sample is exposed to a dusty airflow with a concentration of non-abrasive fine dust less than 75um in size. The sample volume cannot exceed 25% of the internal volume of the test chamber, and the sample base should not exceed 50% of the horizontal working area of the test chamber.
Product Features
1. Can be connected to a computer
2. High efficiency heater, long service life
3. Independent over-temperature protection control system, which can effectively prevent the injection controller from losing control and causing excessive temperature in the box to damage the sample
4. Safety protection system
5. One-year warranty
Specification
Model | CZ-1000SC | CZ-1000SC-ZK | CZ-800SC-ZK | CZ-1800SC-ZK | CZ-3500SC-ZK | ||||
Nominal volume | 1000L | 512L | 1720L | 3380L | |||||
Effective size of inner box | 1000x1000x1000 | 800×800×800 | 1200x1200x1200 | 1500x1500x1500 | |||||
Outer box size (mm) | 1500x1867x1300 | 1400×1800×1000 | 1700x2100x1500 | 1900x2300x1700 | |||||
Temperature range | RT+10C~60C | ||||||||
Pressure drop inside sample | / | Adjustable below standard atmospheric pressure: 2Kpa, 5Kpa, 10Kpa, the limit can reach -95Kpa | |||||||
Exhaust speed | / | Exhaust rate per hour: 40~60 times the sample volume | |||||||
Screen specifications | 200 mesh 75um aperture, wire diameter 50um | ||||||||
Dust concentration | 2~4kg/m circulating dust blowing | ||||||||
Airflow direction | Vertical airflow | ||||||||
Control system | PLC+Human-machine interface programmable controller | ||||||||
Power supply conditions | AC380V ±10% 50Hz10% three-phase four-wire + protective ground wire; machine power 5.6kW | ||||||||
Test standards
1) GB2423.37-2006/IEC 60068-2-68:1994 Environmental testing for electrical and electronic products
Part 2, La2 part of dust test
2) GB4208-2017/IEC60529:2013 IP5X/IP6X in enclosure protection level
3) GB7000.1-2007/IEC 60598-1:2003 Lamps Part 1 General requirements and tests
4)GB/T 30038-2013/ ISO 20653:2006 Protection levels for electrical and electronic equipment of
road vehicles (IP5K/IP6K in IP code)
