Ventilation Metal Outdoor Power Distribution Board For Solar Energy And Street Lights
Price:
USD28-68889
MOQ:
10
Delivery Time:
15 Days
Product Description
Outdoor Power Distribution Panelboard for Solar Energy/Courtyard/Street Lights
Product Specifications
| Attribute | Value |
|---|---|
| Shape | Rectangular |
| Ventilation | Yes |
| Size | Customizable |
| Waterproof | Yes |
| Weight | Customizable |
| Usage | Outdoor Construction on-site equipment (mixers, welders), temporary lighting, and power tools |
| Corrosion Resistance | Yes |
| Material | Metal |
| Installation | Wall mounted/free standing |
| Lock Type | Key Lock |
| Number Of Doors | 1 or 2 |
| Fireproof | No |
| Color | Grey / Others |
Product Applications
- Solar Energy Systems: Centralized power distribution for solar arrays, managing DC/AC conversion and load balancing.
- Courtyard & Landscape Lighting: Controls decorative garden/pathway lights with weatherproof (IP65+) enclosures.
- Smart Street Lighting: Powers LED streetlights with integrated timers/dimming and fault detection.
- Park & Public Space Lighting: Rugged panels for park trails/plazas, often with vandal-resistant designs.
- Remote/Off-Grid Installations: Combines solar inputs + battery backups for unmanned areas.
Design Specifications
| Feature | Specification | Description |
|---|---|---|
| Protection Rating | IP65/IP66 | Dust-tight & water-jet resistant |
| Material | Stainless Steel | Corrosion-resistant |
| Rated Voltage | 220V / 380V AC | Dual voltage support |
| Rated Current | 1~630A | Wide range for industrial use |
| Installation Method | Screw-fixed mounting | Secure & vibration-resistant |
| Cable Diameter | Φ9~14mm | Flexible entry options |
| Inlet Specification | Customizable | Tailored to project needs |
Material Options
Cold rolled steel / Stainless Steel
IP Rating: IP55/IP65/IP66
Customization Options
- Weatherproofing: Offer IP65/NEMA 4X enclosures for harsh climates (coastal/desert)
- Smart Integration: Add IoT slots for remote monitoring (solar yield/load faults)
- Corrosion Resistance: Stainless steel or powder-coated aluminum for longevity
- Modular Design: Hot-swappable breakers for streetlight maintenance

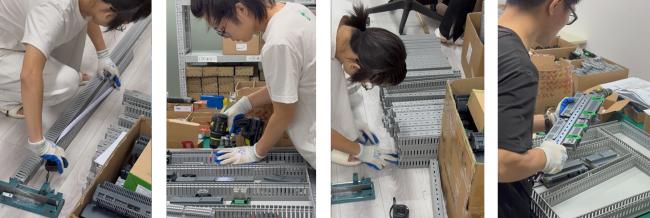

Our works:
