500x500 P3.91 3mx6m Backstage Stage Led Advertising Screen for Outdoor Events Shows
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
DDW or OEM
Product Description
Products Description
Specifications
Item | 500x500 P3.91 3mx6m Backstage Stage Led Advertising Screen for Outdoor Events Shows | ||||||||
Pixel pitch (mm) | Pixel pitch (mm) | P2.604(indoor) | P2.976(indoor) | P3.91(indoor) | P2.976(outdoor) | ||||
Lamp model | Lamp model | SMD1515 | SMD2020 | SMD2020 | SMD1415 | ||||
Module pixel resolution(dots) | Module pixel resolution(dots) | 192*192 | 168*168 | 128*128 | 192*192 | ||||
Module size(mm) | Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | ||||
Pixel density (dots/m²) | Pixel density (dots/m²) | 147474 | 112896 | 65410 | 147474 | ||||
Brightness(nits) | Brightness(nits) | 700 | 700 | 700 | 4200 | ||||
white color temperature(°) | white color temperature(°) | 6000~10000 | 6000~10000 | 6000~10000 | 6000~10000 | ||||
Viewing angle(°) | Viewing angle(°) | H:160V:140 | H:160V:140 | H:160V:140 | H:160V:140 | ||||

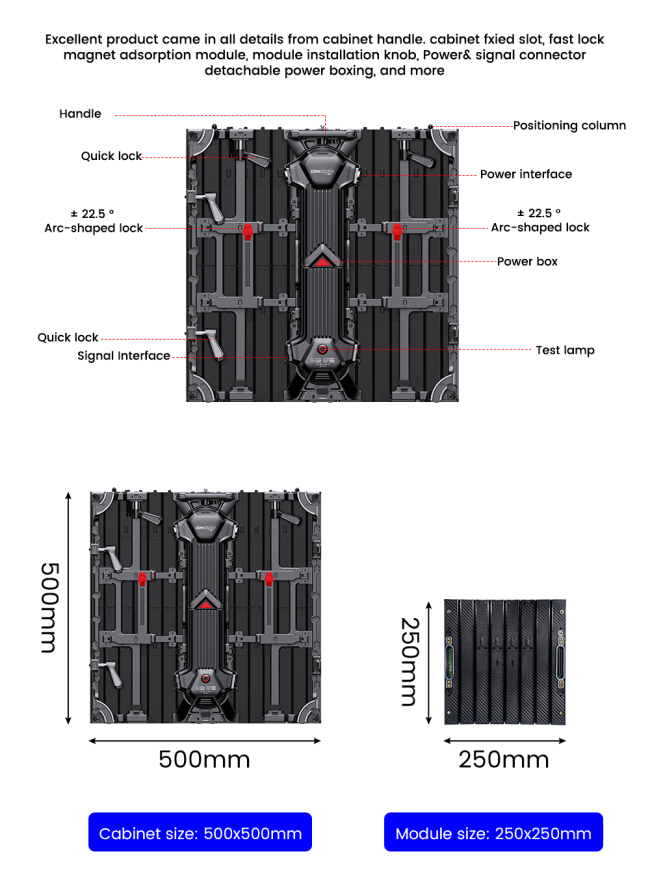

Panel dimention | Panel dimention | 500*500 | 500*500 | 500*500 | 500*500 | ||||
Cabinet material | Cabinet material | Die-casing aluminum | Die-casing aluminum | Die-casing aluminum | Die-casing aluminum | ||||
Panel weight | Panel weight | 7KG | 7KG | 7KG | 7KG | ||||
Grey scale | Grey scale | 14Bit | 14Bit | 14Bit | 14Bit | ||||
Frame frequency | Frame frequency | 60Hz/50Hz | 60Hz/50Hz | 60Hz/50Hz | 60Hz/50Hz | ||||
refresh rate(Hz) | refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | ||||
Driving method | Driving method | 1/32s | 1/28s | 1/16s | 1/21s | ||||
Working Voldtage(V) | Working Voldtage(V) | AC100-240V | AC100-240V | AC100-240V | AC100-240V | ||||
Input Power(Hz) | Input Power(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | ||||
Max Power consumption/panel(w) | Max Power consumption/panel(w) | 480 | 480 | 480 | 480 | ||||
Power consumption/panek(w) | Power consumption/panek(w) | 160 | 160 | 160 | 160 | ||||
Lifespan(H) | Lifespan(H) | 100000 | 100000 | 100000 | 100000 | ||||
IP Level | IP Level | IP31 | IP31 | IP31 | IP65 | ||||
Company Profile
Q:Who Are We?
A: DDW DISPLAY has 12,000sqm high-tech automated workshop, 100 employees,25 research
engineers,20 after-sale technicians,4000sqm productivity each month.
Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
1. Suppliers are long-term cooperated large famous company.
2. Material check by professional workers and machines.
3. Debug every modules.
4. 48-hour aging test for all modules before assembling.
5. Test every cabinet's function after assembling by engineers and machines.
6. 72-hour aging test for whole screen before shipment.
7. All details final inspection again before package.
Q: What Can You Buy From Us?
A: indoor outdoor rental LED screen, fixed LED screen, HD LED screen, flexible LED screen, transparency LED display, creative led screens and customization services.
Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 12 years' development, Shenzhen DDW Technology Co.,Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.
Q: What Services Can We Provide?
A: 5-years quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen.
