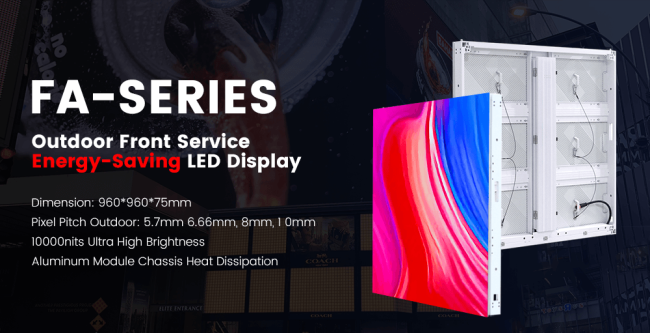

High Brightness P5 P6 P8 P10 Waterproof LED Screen Billboard Structure Stable Performance Outdoor Advertising Display

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

Discover Your Right Application , Make Your Business Possible !

Common warranty in LED field is 2 years, ours is 3 years Longer warranty periods, better after-sale services, worry-free user experience

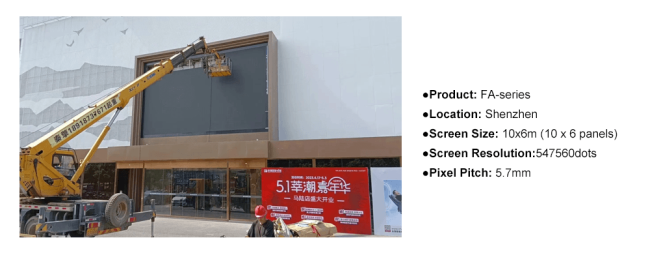

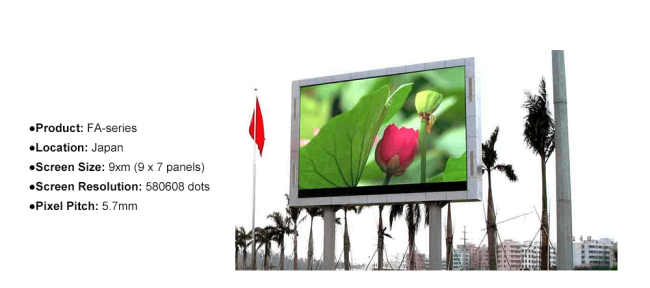

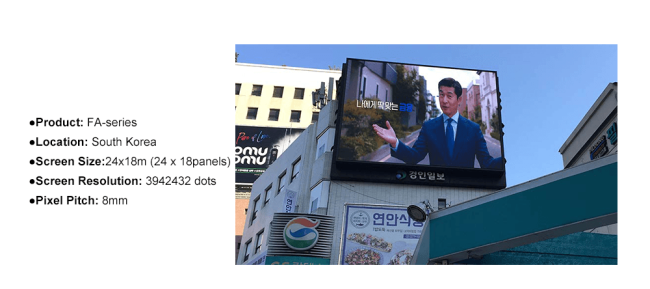

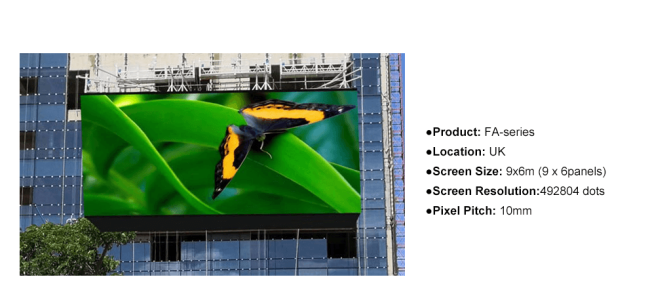

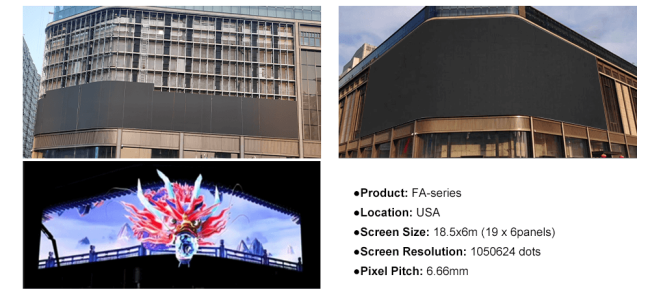

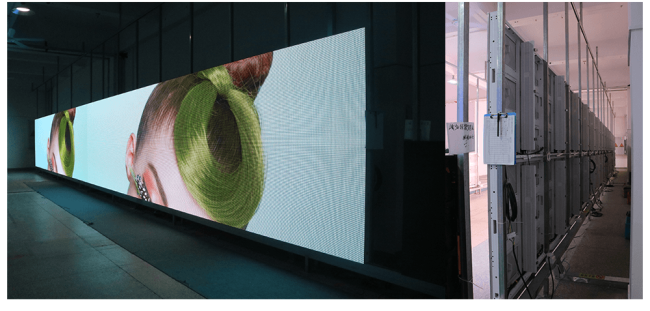

Project Case

Rental LED displays have been exported to many countries and rigions in the World, and we are highly praised by our customers.

Products Description

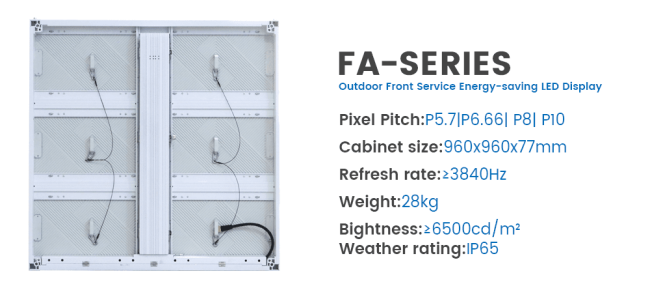

Part Number	P5.7	P6.66	P8	P10
Pixel Pitch	5.7mm	6.66mm	8mm	10mm
LED Configuration	SMD2727
Pixel Density	30625dot/m2	22500dot/m2	15625dot/m2	10000dot/m2

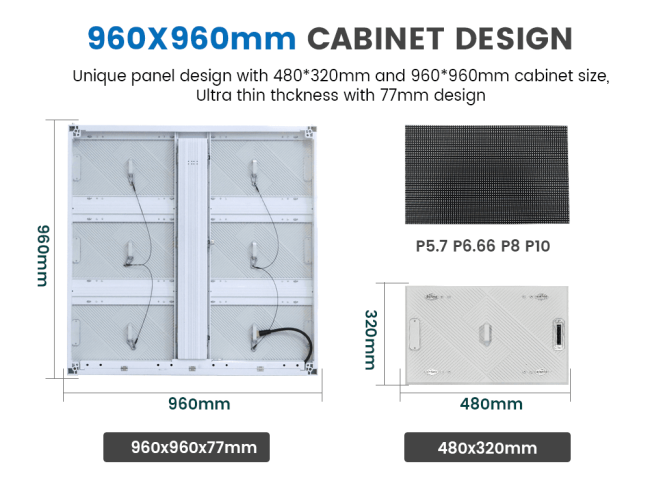

Module size	480*320mm
Module Resolution	84*56 dot	72*48 dot	60*40 dot	48*32dot
Cabinet Size	96096077mm
Cabinet Resolution	168*168dot	144*144dot	120*120dot	96*96dot
Cabinet Weight	28kg
IP Rating ( front/back)	IP65

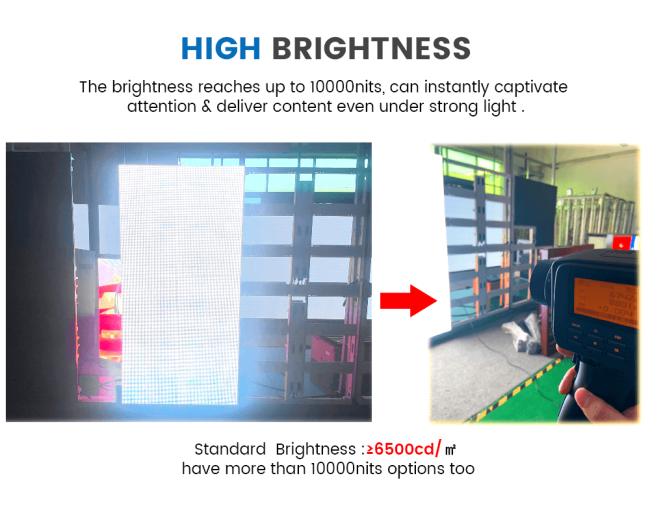

Brightness Intensity
Viewing Angle (H/V)	140°/140°
View Distance	＞5m
Gray Scale	14bit
Display Scale	16.7M
Brightness Adjustment	0-100 levels adjustable

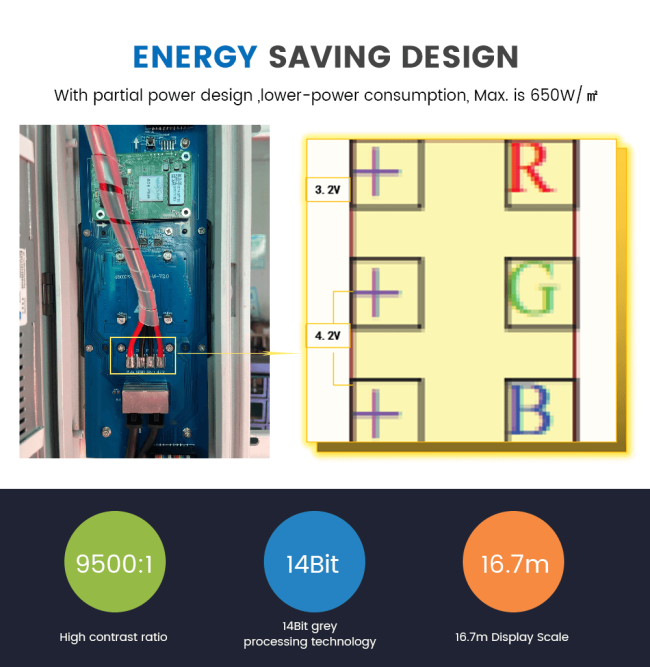

Max.Power Consumption	650W/㎡
Ave.Power Consumption	200W/㎡
Drive Mode	1/7S	1/6S	1/4S	1/2S
Refresh Frequency	≥3840HZ
Gamma Correction	-5.0~+5.0
Environmental	OUTDOOR
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100~240 50/60HZ
Operating Temperature	-20℃~+50℃
Operating Humidity	10~95% RH
Operating Life	100,000hours

Company Profile

About Us

Shenzhen DDW Technology Co, Ltd is a professional manufacturer and developer of LED display screens in Shenzhen, China since 2012. DDW Display focus on providing indoor outdoor creative LED screen, LED poster, Rental LED screen,Ultra fine HD LED screen,Flexible LED Display,Transparent LED display and various of LED display screens. We are always committed to providing high-quality hardware and software, our excellent pre-sales and after-sales service, and win-win cooperation for all customers.
