A4 Paper Cutting And Packing Machine A4 Copy Sheeter Paper Machine
CHM brand A5 copy paper high-capacity production line featuring advanced Twin Rotary Knife Synchronize Sheeting technologies. Capable of fully automatic ream and box wrapping with production speeds up to 46 reams/min.
| Attribute | Value |
|---|---|
| Unwind Stand | 2 Sets (4 Rolls) including 3 sets of railway and trolley |
| Machine Type | Each machine table can take 2 sets of shaftless paper racks |
| Diameter of the paper roll | Max. Ф1500mm |
| Width of the paper roll | Max. Ф891mm |
| Paper rack's material | Steel |
| Parameter | Details |
|---|---|
| CHM Type | CHM-A5-6 |
| Paper Width | Gross width: 900 mm, Net width: 891 mm |
| Cutting Numbers | 6 cutting-A5 (148.5 mm width) |
| Production Speed | Max 0-200 m/min (depends on paper quality) |
| Cutting Accuracy | ±0.2 mm |
| Power | 34 kW |
When paper passes through the inductor, it automatically feedbacks to the PLC control system to adjust brake load and maintain optimal paper tension.
- Upper and lower rotary knives ensure precise cutting
- Anti-curve device with square bar and steel wheel for flat paper alignment

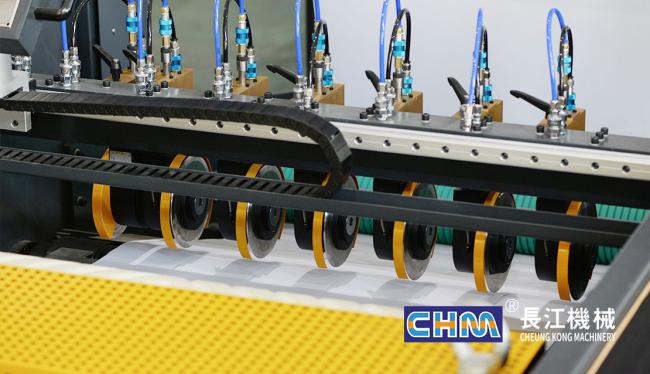

- 7 sets of slitting knives with SKH material construction
- Level and overlapping transport device

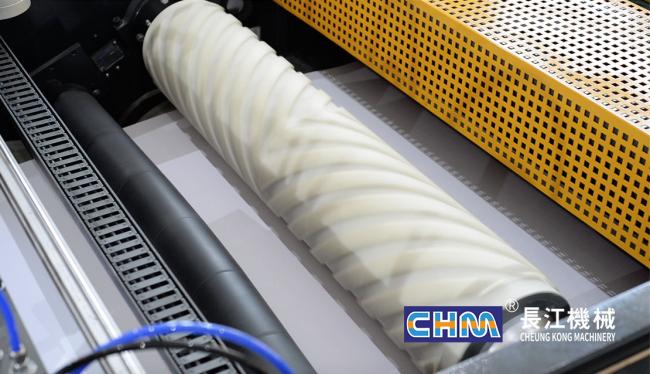

- High-speed transporting belt with press wheel
- Static removal system with negative ion generator
CHM Machinery, established in 2004, has developed into a professional paper sheeter machine manufacturer with three factories covering 140,000 square meters. We have sold over 200 units globally with customers in more than 100 countries.
We have R&D capabilities and high-speed cutting technology allowing 24/7 operation with maximum production capacity of 1600 tons. Our market share is 70%.
CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years experience, we have customers using our equipment for more than a decade.
