Precision Rotary Paper Sheeter 450mm - 1650mm Cutting Length Rotary Paper Cutter
Price:
60000-120000
MOQ:
1 set
Delivery Time:
90 days
Brand:
CHM Machinery
Product Description

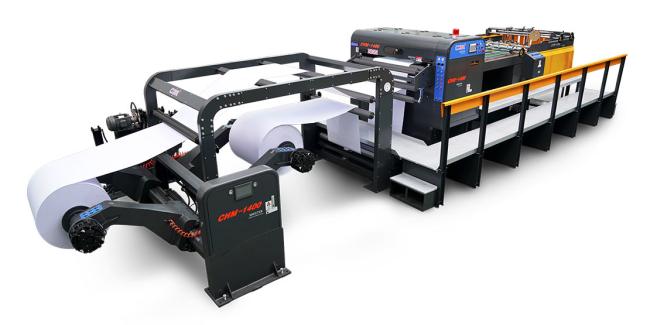

Precision High Speed Paper Reel to Sheet Cutting Machine
Key Features
- Top blade rotary, bottom blade fixed cutting system
- Handles paper weights from 60-550GSM
- ±0.5mm cutting accuracy
- Maximum cutting speed of 300 sheets/min
- Cutting length range: 450-1650mm
- Handles scroll diameters up to 1800mm
- Paperboard stacking height: 1500mm (59")
Technical Specifications
| Model | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Max paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimensions (L×W×H) | 12518×3853×2230mm | 12518×4153×2230mm | 12518×4353×2230mm |
Machine Description
Our high-speed precision sheeter features a servo-driven system for exceptional performance across various paper types including board paper, art paper, and kraft paper. The machine's innovative "fixed bottom knife and rotating upper knife" design ensures power efficiency while maintaining high cutting precision up to 400 sheets/minute.
Ideal for printing, packaging, and paper suppliers, this equipment can handle 95% of paper types available in the market. Multiple machines can be operated by a single technician for maximum productivity.
Advanced Systems & Components
Hydraulic Shaft-less Unwind Station
High Precision Single Rotary Sheet Cutter
Features advanced cutting technology to reduce noise and load while extending knife life. The bottom tool apron is cast for maximum stability.
Auto-Squareness Adjustment System
British-style tool apron with automatic squareness adjustment controlled via touch screen interface.
Static Eliminator System
Anti-static bar effectively removes static from sheets during processing.
Manufacturer Profile
Established in 2004, CHM Machinery has grown into a leading paper sheeter machine manufacturer with three factories spanning 140,000 square meters in Guangdong, Shandong, and Jiangsu. We pioneered China's first paper roll to sheet cutting machine and maintain the world's second largest production capacity in this sector.
With annual sales exceeding 200 units to over 100 countries, our dedicated R&D team holds more than 110 patents. We provide comprehensive after-sales support and lifetime maintenance for all our equipment.
Quality Assurance & Support
- 1-year warranty on all components
- Lifetime maintenance support
- Pre-production samples and final inspection before shipment
- Preferential pricing on spare parts after warranty period
