HD Digital Video Colposcope 30x Zoom 750TVL Camera For Gynecology
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
10-15days
Brand:
HDRMEDICO
Product Description
HD Digital Colposcope with 30x Optical Zoom & 750TVL Camera for Gynecology
Product Specifications
| Attribute | Value |
|---|---|
| Product name | HD Digital Colposcope |
| Camera Resolution | ≥750TVL horizontal resolution |
| Radiant Heat | ≤50W/m² at max intensity |
| Spot Diameter | ≥60mm |
| Illumination Uniformity | ≤1.2 deviation |
| Geometric Distortion | ≤3% |
Product Description
The HD Digital Colposcope is a professional medical imaging device designed for comprehensive gynecological examinations, featuring advanced magnification capabilities for detailed visualization of the cervix and vulva. This system combines optical magnification with digital imaging technology and software management to enhance diagnostic procedures.

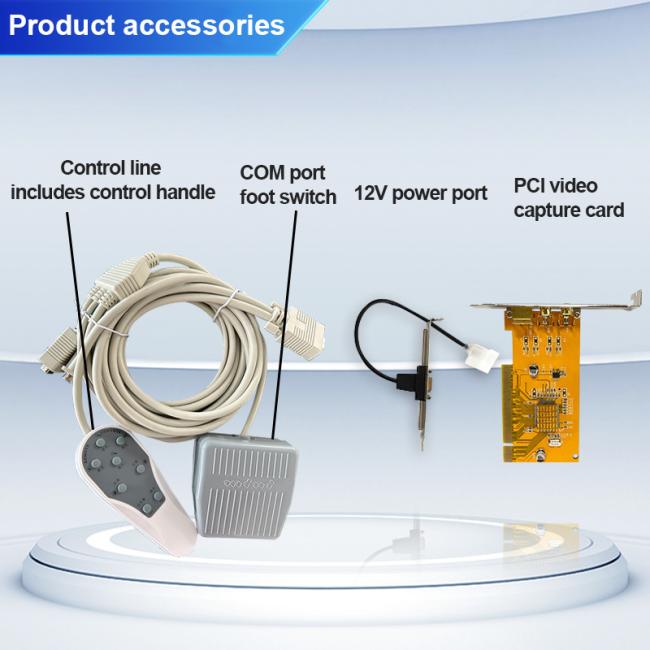

System Components
- Colposcope unit
- Data cable with remote control and COM foot switch
- PCI video capture card
- 12V power adapter
- USB-to-232 interface conversion cable (for computers without RS232 ports)
Functional Features
Hardware Functions:
- Zoom in/out with timer display
- Green filter and auto/manual focus
- Red enhancement/reduction
- Foot pedal image capture
- White balance adjustment
Software Functions:
- Patient Management: Create and edit patient profiles
- Medical Record Management: Search, view, and edit reports
- Examination Tools: Image/video capture, freeze frame, review
- Image Editing: Add annotations, measurements, and labels
- Reporting: Edit and print diagnostic reports
- Terminology Management: Customize terms via add/delete/import/export
- Account Management: User accounts with permission settings
Applications
- Gynecological Diagnostics: Detection of cervical abnormalities, precancerous lesions, and infections
- Clinical Documentation: Image-guided patient record keeping and report generation
- Teaching and Training: Visual aid for medical education and patient counseling
Technical Specifications
Magnification: Adjustable from 1x to 30x in 1x increments
Working Distance: 30cm to 40cm at maximum magnification
Field of View: Covers 25mm to 300mm
Depth of Field: ≥100mm at max magnification
Light Source Illuminance: ≥2000 lx
Light Source Color Temperature: ≥5100K
