285-135 WAGO Terminal Blocks Power Cage Clamp Din Rail Mounted Terminal Blocks
- Underwriters Laboratories Inc., UL, E45172, UL 1059
- Lloyds Register, LR, 91/20112 (E9), EN 60947
- American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
- DEKRA Certification B.V., CSA, 154112, C22.2 No. 158
- DEKRA Certification B.V., CCA, NTR NL-7707, EN 60947
- Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
- DEKRA Certification B.V., KEMA/KEUR, 71-101911, EN 60947
- Safety information 1: Only suitable for DIN 35 x 15 rail
- Ratings per: IEC/EN 60947-7-1
- Nominal voltage (III/3): 1000 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 125 A
- Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Approvals per: UL 1059
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 115 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 115 A
- Approvals per: C22.2 No 158
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 115 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group D): 115 A

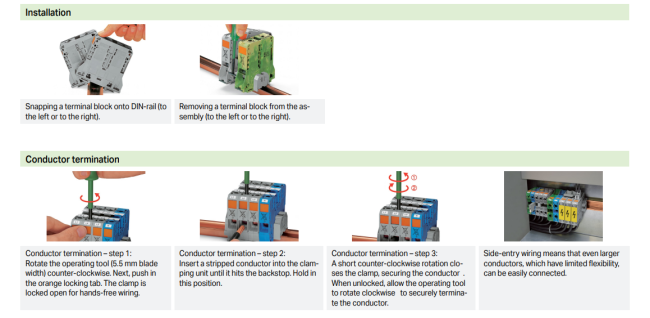

- Connection technology: POWER CAGE CLAMP
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 6 … 35 mm² / 8 … 2 AWG
- Stranded conductor: 6 … 35 mm² / 8 … 2 AWG
- Fine-stranded conductor: 6 … 35 mm² / 8 … 2 AWG
- Fine-stranded conductor; with insulated ferrule: 6 … 35 mm² / 8 … 2 AWG
- Fine-stranded conductor; with uninsulated ferrule: 6 … 35 mm² / 8 … 2 AWG
- Strip length: 25 mm / 0.98 inch
- Wiring direction: Side-entry wiring
- Width: 16 mm / 0.63 inch
- Height: 86 mm / 3.386 inch
- Depth from upper edge of DIN-rail: 63 mm / 2.48 inch
- Design: Horizontal type
- Mounting type: DIN-35 rail
- Marking level: Side marking
- Color: Gray
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 1.181 MJ
- Weight: 79.349 g
- Packaging type: Box
- Country of origin Sales Organisation Germany: PL
- GTIN: 4045454507381
- Customs tariff number Sales Organisation Germany: 85369010000
- Original&New
- Fast delivery
- Best price&Low MOQ
- Professionalafter-sales service
1. who are we?
We are based in NanJing City, JiangSu Province China, Start from 2018,sell to Mid East,Southeast Asia,North America,Domestic Market,South Asia,Eastern Asia,,Africa,. There are total about 11-50 people in our office.
2. how can we guarantee quality?
All of goods are from Original Brand New Phoenix Contact, and Provide Video-call, Picture confirmation before shipment. Always final Inspection before shipment;
3.what can you buy from us?
Terminal blocks/Relay/Power Supply....
4. why should you buy from us not from other suppliers?
Professional in instruments over 10 year. Covering many famous brands such as Phoenix Contact/Weidmuller/WAGO...... Cusutomers all over the world,south east of Asia,Middle East.....
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,Credit Card,PayPal,
We can ship these goods to you by sea &air,DHL,UPS,FEDEX,TNT.......
- It will takes about 20-25days if by sea.
- It will takes about 5-7days if by air.
- By DHL,UPS,FEDEX,TNT,It will takes about 4-6 working days except festival and holiday.
