Phoenix Contact Original 2902015 Relay Terminal MINI MCR-2-RPSS-I-I-PT - Repeater power supply

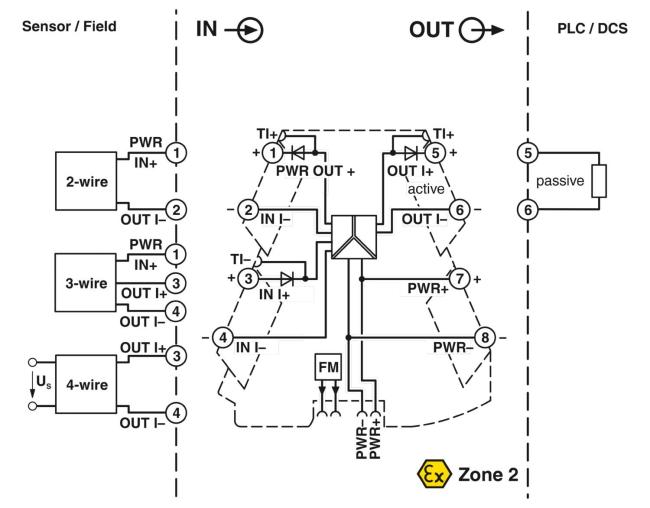

3-way repeater power supply with plug-in connection technology. HART-transparent, input signal 0(4) mA ... 20 mA, output signal 0(4) mA ... 20 mA. The device can be used in both isolator and repeater power supply operation. push-in connection technology
| Product type | Repeater power supply |
| Product family | MINI Analog Pro |
| No. of channels | 1 |
| Insulation characteristics: GB Standard | |
| Overvoltage category | II |
| Pollution degree | 2 |
| Electrical isolation | 3-way isolation |
| Electrical isolation between input and output | yes |
| Limit frequency (3 dB) | > 1.75 kHz |
| Protective circuit | Transient protection |
| Signal transmission behavior | In = Out |
| Step response (10-90%) | < 200 µs (typ.) |
| Maximum temperature coefficient | 0.0075 %/K |
| Temperature coefficient, typical | 0.0075 %/K |
| Maximum transmission error | 0.05 % (of final value in repeater power supply operation) |
| 0.1 % (of final value in isolator operation) | |
| Rated insulation voltage | 300 Vrms |
| Test voltage | 3 kV AC (50 Hz, 60 s) |
| Insulation | Reinforced insulation according to IEC/EN 61010-1 |
| Nominal supply voltage | 24 V DC |
| Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Typical current consumption | 25 mA (at 24 V DC and in isolator operation) |
| 50 mA (at 24 V DC and in repeater power supply operation) | |
| 55 mA (at 12 V DC and in isolator operation) | |
| 110 mA (at 12 V DC and in repeater power supply operation) | |
| Power consumption | ≤ 1400 mW (at IOUT = 20 mA, 9.6 V DC, 600 Ω load) |
