Customized Ultra Clear Low Iron Glass 3mm - 19mm Glass For Window And Doors

Price Negotiable
Price: USD0.5-USD1.9/square meter
MOQ: 1 Square Meter/Square Meters float glass
Delivery Time: 5-7 working days
Brand: YIWO
Product Description

Top-Grade Option Ultra White Low Iron Clear Float Glass For Window and Doors​



Products description:



  Yiwo low iron float glass is a kind of plate glass with highly clears, highly transmissive, highly smooth. And it is a new type of deeply processed glass, also it is a new type advanced structural glass with environment protection, economic on energy. The glass is a lower iron float glass and be made by a special process. It is not like the clear float glass to sight like green, it looks just like colorless crystal, highly transmissive and terrific.



Features:



1. Superior Clarity & High Transmittance: Uncoated 5mm thickness achieves ≥89% light transmittance, with a transparent and bright surface that minimizes visual distortion—ideal for scenarios requiring excellent light penetration (e.g., building facades, doors, windows).
2. Excellent Surface Flatness: Adopts advanced float production technology, ensuring ultra-smooth and flat surfaces with no waves or unevenness. It supports precise processing such as coating, laminating, and silk-screen printing, and maintains a high-end appearance after processing.

3. Strong Processing Adaptability: Easily compatible with cutting, tempering, insulating, mirror coating, and other processing procedures. It can be customized into various forms (e.g., tempered glass, insulated glass) to meet the diverse needs of different application scenarios.
4. Environmentally Friendly & Safe: Made of high-purity raw materials, it complies with RoHS/REACH environmental standards, non-toxic and pollution-free; the stable material properties avoid secondary pollution during use, and it is easy to recycle.
5. Cost-Effective & Versatile: Balances high quality and reasonable cost, widely applicable to building decoration (curtain walls, partitions), household appliances (refrigerator doors, microwave doors), furniture (glass tables, shower enclosures), and other fields, with strong market applicability.
6. Stable Physical & Mechanical Properties: With a Mohs hardness of 6-7, it has good scratch resistance and impact resistance; the bending strength ≥80 MPa ensures stable structural performance, suitable for long-term use in construction, furniture, and other fields.





Specification:



Low Iron Float Glass Performance Data
Thickness Visible Light Visible Light Solar Radiant Heat Shading Coefficient U Value Sound Insulation UV
Transmittance Reflectivity Direct Penetrate Reflect Absorb Total Penetrate Short Wave Long Wave Total (W/m2K) Rm (dB) Rw (dB) Penetration
3 mm 92.00% 8.00% 91.00% 8.00% 1.00% 91.00% 1.05 0.01 1.05 5.8 26 30 85
3.2 mm 91.80% 8.00% 91.00% 8.00% 2.00% 91.00% 1.03 0.01 1.05 5.8 26 30 84
4 mm 91.60% 8.00% 90.00% 8.00% 2.00% 91.00% 1.03 0.01 1.05 5.8 27 30 82
5 mm 91.50% 8.00% 90.00% 8.00% 2.00% 90.00% 1.03 0.01 1.03 5.8 29 32 81
6 mm 91.40% 8.00% 89.00% 8.00% 3.00% 90.00% 1.02 0.01 1.03 5.7 29 32 79
8 mm 91.00% 8.00% 88.00% 8.00% 4.00% 89.00% 1.01 0.01 1.02 5.7 31 34 76
10 mm 91.00% 8.00% 88.00% 8.00% 4.00% 89.00% 1.01 0.02 1.02 5.6 33 36 74
12 mm 91.00% 8.00% 87.00% 8.00% 5.00% 88.00% 1 0.02 1.01 5.5 34 37 72
15 mm 90.00% 8.00% 86.00% 8.00% 6.00% 87.00% 0.99 0.02 1 5.5 35 38 71
19 mm 90.00% 8.00% 84.00% 8.00% 7.00% 86.00% 0.97 0



Application:

1. Architectural Decoration (Largest Application Field)

- Doors & Windows: Residential, commercial and public building doors/windows (e.g., bedroom windows, shopping mall glass doors), leveraging high light transmittance to enhance indoor lighting.

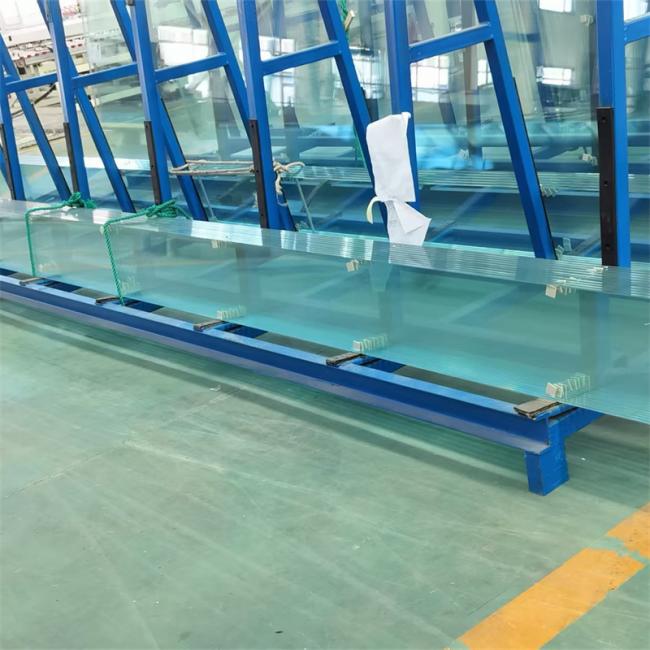

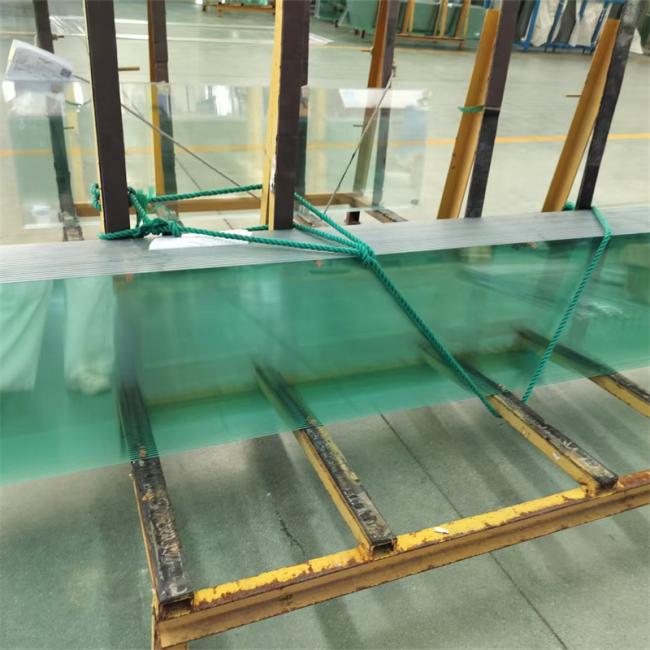

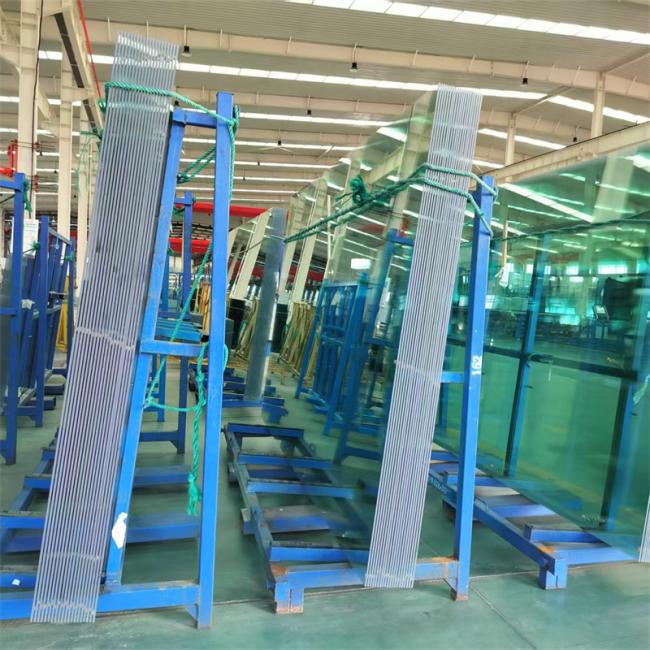

Glass Production Pictures:
