Recycling Scrap Metal Crusher Machine Scrap Metal Shredder Waste Aluminum Iron Crusher Scrap Steel Car Metal Metallurgy Machine
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
HONEST
Product Description
Waste Steel Tailings Scraps Metal Crushing and Sorting Line

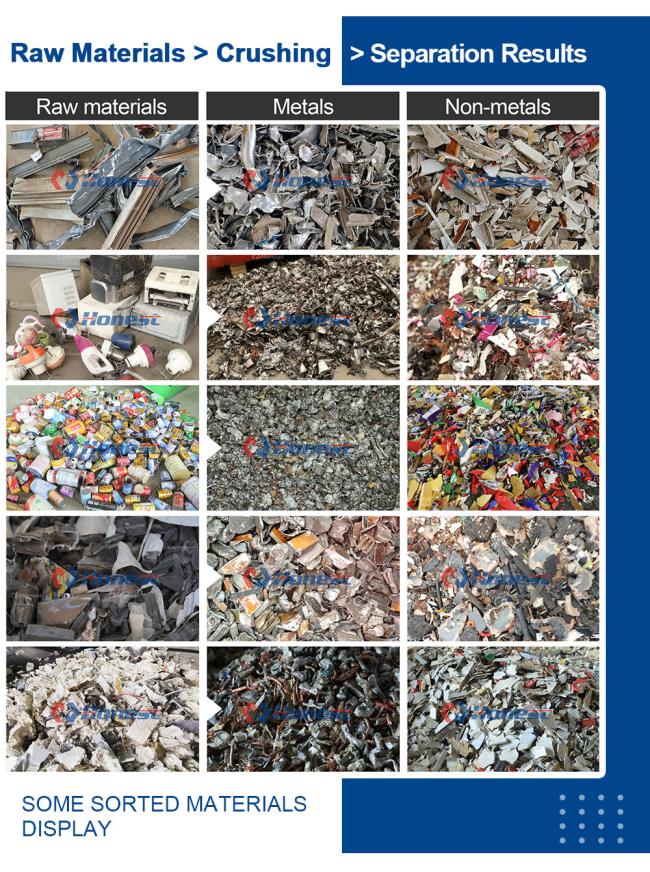

APPLICATION
Aluminum-plastic composite materials, copper-plastic composite materials, metals and non-metals, plastics and metals.
Circuit boards separated from waste household appliances after dismanting, PCB circuit board leftover materials.
Circuit board drilling powder waste, miscellaneous wires, waste home appliance dismantling wires, copper-plastic wires, fine flexible cables, computer connection wires automobile and motorcycle battery cables, automotive wiring harnesses.
Aluminum-plastic wires, sheathed wires, automotive copper-aluminum radiators, air conditioner radiators for separating aluminum and copper, garbage material sorting for metals, plastics, and non-ferrous metals.
PET bottle flakes containing aluminum for separation, non-ferrous metals recovered from crushed waste appliances such as automobiles and refrigerators, aluminum separation from automobile sealing strips, aluminum foil separation from PC plastics.
Aluminum-plastic doors and windows to separate aluminum from other mixed metal and non-metal materials.
Technical Parameters
Model | HN400 | HN600 | HN800 | HN1000 | HN1200 | HN1500 |
Magnetic roller diameter(mm) | 300 | 300 | 300 | 300 | 300 | 300 |
Magnetic roller speed(max)r/min | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 | 0~3000 |
The belt width (mm) | 450 | 650 | 850 | 1050 | 1250 | 1550 |
Capacity(t/h) | 2~4 | 4~6 | 5~10 | 6~12 | 7~13 | 8~15 |
Driving power(kw) | 3.0+0.55 | 4.0+0.75 | 5.5+1.1 | 7.5+1.5 | 11+2.2 | 11+3.0 |
Weight (kg) | 1000 | 1400 | 1800 | 2200 | 2400 | 2600 |
Overall dimension (L*W*H)mm | 1885X1450X1150 | 2980X1883X1210 | 2980X2033X1210 | 2980X2233X1210 | 2980X2433X1210 | 2980X2633X1210 |
Process Description
Solution Customization
Before eddy current separation, the materials need to be uniform in size which is usually achieved by pre-crushing. Our company can provide complete crushing and separation solutions tailored to the specific materials and customer requirements.
Production Process

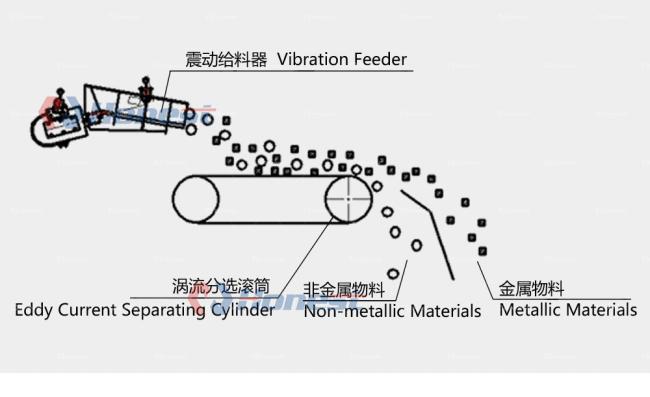

It is based on the principle of conductor in the high frequency alternating magnetic field, can generate induced current, it'll produce high frequency alternating intense magnetic field in the surface of magnetic roller while working, when the non-ferrous metal with electrical conductivity through the magnetic field,and will induce eddy current in the non-ferrous metal.
The eddy current itself will generate the magnetic field opposite with the original direction, the non-ferrous metal (such as aluminum, copper, etc.) will leap with the conveying direction, due to the repulsion of the magnetic field, to achieve the purpose of separation, separate the metal and non-metal materials. The main criterion to distinguish is the ratio of material conductivity and density values, the higher ratio value is more likely to separate.
The eddy current itself will generate the magnetic field opposite with the original direction, the non-ferrous metal (such as aluminum, copper, etc.) will leap with the conveying direction, due to the repulsion of the magnetic field, to achieve the purpose of separation, separate the metal and non-metal materials. The main criterion to distinguish is the ratio of material conductivity and density values, the higher ratio value is more likely to separate.
Product Fature
1. Simple operation, automatic separation of metal and nonmetal; Reliable single power supply design makes the system compact and reliable;
2. The span of separable metal particles is large, which is usually between 3mm and 100mm;
3. The installation is convenient, customized according to customer's requirements, and can be effectively connected with newly-built and existing assembly lines;
4. High gradient rare earth permanent magnet system is used with low energy consumption and convenient maintenance;
5. Materials with different particle sizes can be sorted according to the different turning directions of the rotors;
6. a variety of models to choose from ( trau wodtj range of 300mm to 1500mm ).
2. The span of separable metal particles is large, which is usually between 3mm and 100mm;
3. The installation is convenient, customized according to customer's requirements, and can be effectively connected with newly-built and existing assembly lines;
4. High gradient rare earth permanent magnet system is used with low energy consumption and convenient maintenance;
5. Materials with different particle sizes can be sorted according to the different turning directions of the rotors;
6. a variety of models to choose from ( trau wodtj range of 300mm to 1500mm ).

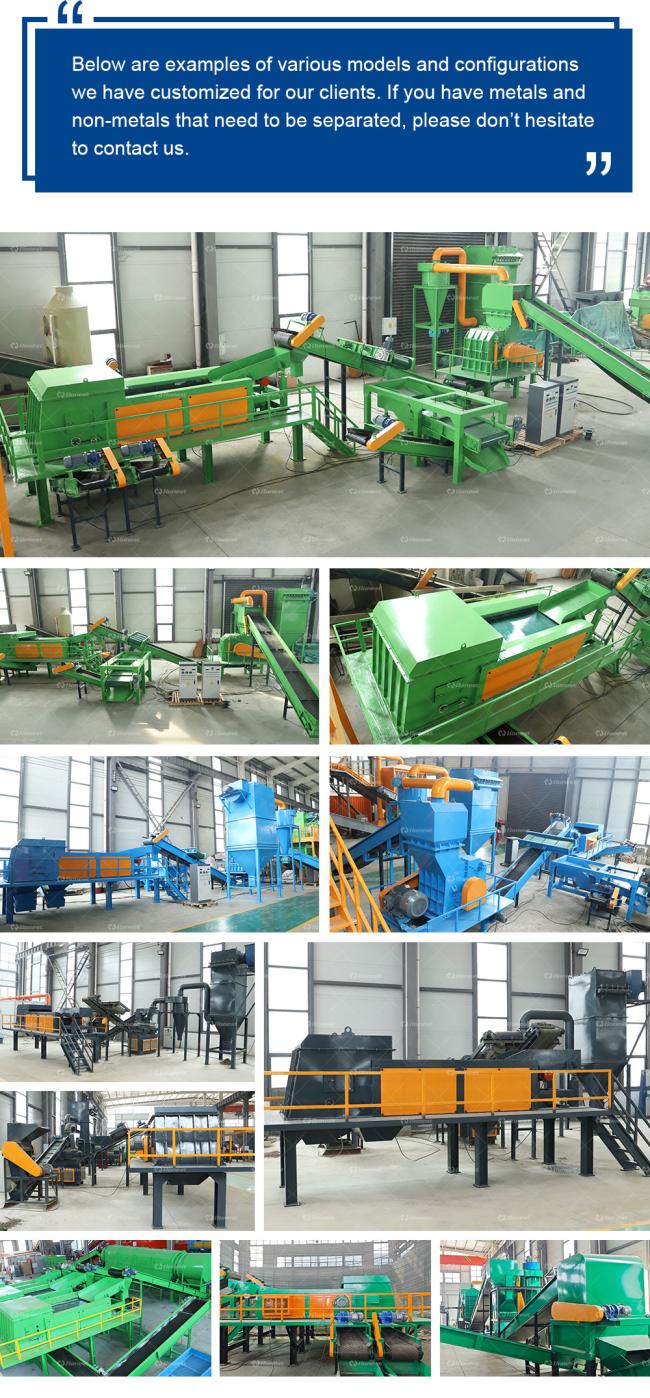

Customer Site
Customer Feedback
Company Show
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
