DSBC-100-265-PPVA-N3 1463598 Festo ISO Cylinder Pneumatic Piston Rod Cylinder
Festo DSBC-100-265-PPVA-N3 1463598 ISO Cylinder Pneumatic Piston Rod Cylinder
The Festo DSBC-100-265-PPVA-N3 (Order Number 1463598) is a high-performance rodless pneumatic cylinder from Festo’s robust DSBC series, engineered for long-stroke, high-load linear motion in demanding industrial environments. Featuring a 100 mm bore, 265 mm stroke, stainless steel construction, integrated linear guidance, and magnetic piston for position sensing, this cylinder delivers exceptional rigidity, corrosion resistance, and precision—ideal for packaging, material handling, automotive assembly, and washdown applications.
Designed to meet ISO 15552 compatibility standards while offering the unique advantages of rodless technology, the DSBC-100-265-PPVA-N3 eliminates the risk of rod buckling, saves up to 50% mounting space, and supports payloads up to ~300 kg depending on orientation and speed.
Product Overview: Festo DSBC-100-265-PPVA-N3 (1463598)
| Manufacturer | Festo AG & Co. KG (Germany) |
| Series | DSBC – Stainless Steel Rodless Cylinders with Integrated Guide |
| Model | DSBC-100-265-PPVA-N3 |
| Festo Order Number | 1463598 |
| Bore Diameter | 100 mm |
| Stroke Length | 265 mm |
| Action Type | Double-acting (air pressure required for both extension and retraction) |
| Body Material | Stainless steel (AISI 304/1.4301) – resistant to corrosion, chemicals, and high-pressure cleaning |
| Sealing Material | FKM (Viton®) – suitable for aggressive media and temperatures up to +120°C |

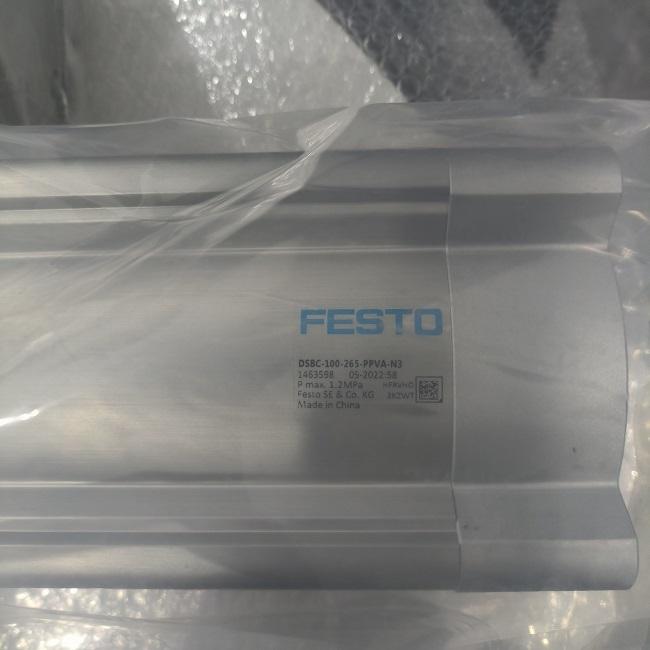

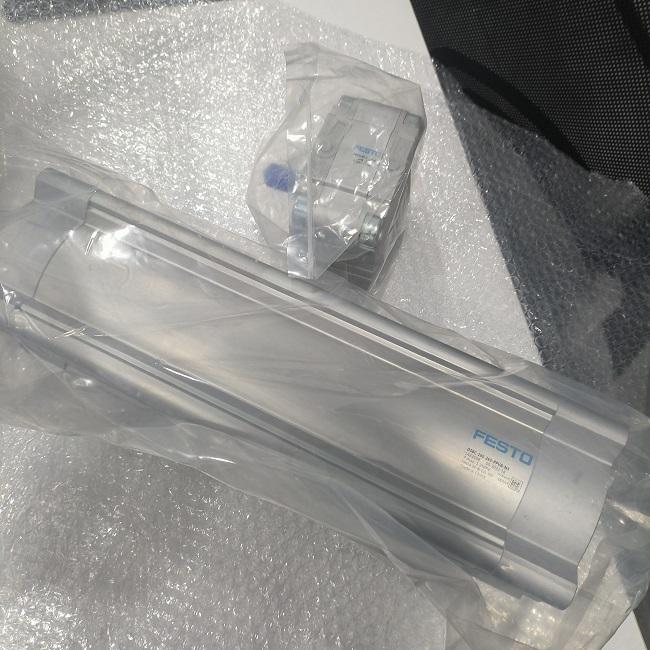

Product details pictures
