ADVU-80-5-A-P-A 156048 Festo Spare Parts Compact Cylinder Double Acting 80 Mm
Festo ADVU-80-5-A-P-A 156048 Compact cylinder Double-acting 80 mm
The Festo ADVU-80-5-A-P-A (Order Number 156048) is a high-quality, double-acting pneumatic cylinder from Festo’s widely used ADVU series, engineered for reliable linear motion in industrial automation, packaging, assembly, and material handling applications. Compliant with ISO 15552 (formerly ISO 6431 / VDMA 24562) standards, this round-line cylinder features an 80 mm bore diameter, 5 mm stroke, magnetic piston for position sensing, adjustable pneumatic end-position cushioning, and ATEX conformity for use in potentially explosive atmospheres.
Designed and manufactured by Festo, a global leader in pneumatic and electric automation technology, the ADVU-80-5-A-P-A combines precision engineering, corrosion-resistant materials, and modular compatibility—making it a versatile and durable solution for demanding factory environments.
Product Overview: Festo ADVU-80-5-A-P-A (156048)
| Manufacturer | Festo AG & Co. KG (Germany) |
| Series | ADVU – Round-Line Cylinders, ISO 15552 |
| Model Number | ADVU-80-5-A-P-A |
| Festo Order Number | 156048 |
| Bore Diameter | 80 mm |
| Stroke Length | 5 mm (ultra-short stroke for precise positioning or clamping) |
| Action Type | Double-acting (requires air pressure for both extend and retract) |
| Piston | Integrated permanent magnet – compatible with all standard Festo reed switches and magnetic sensors (e.g., SMTO, SMT, or SIEN series) |

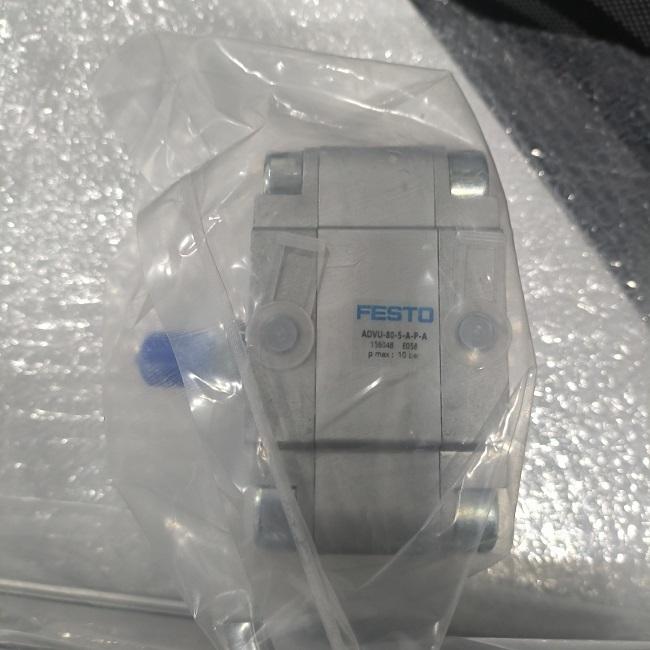

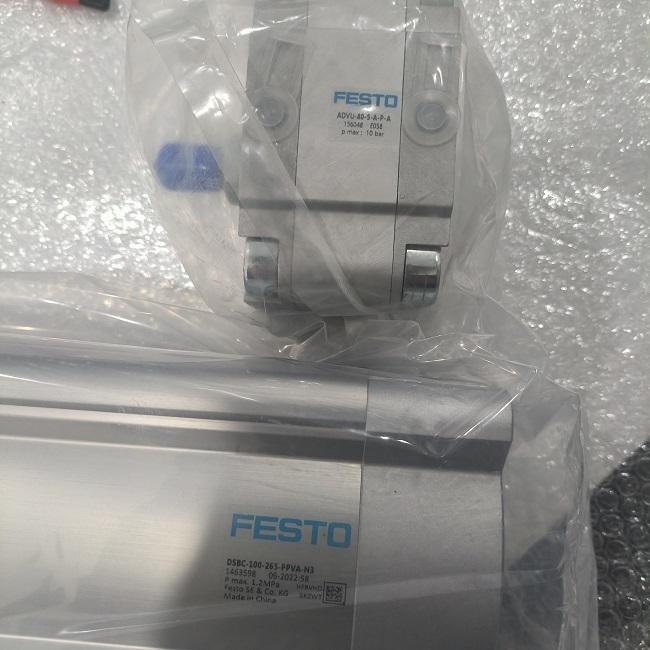

Product details pictures
